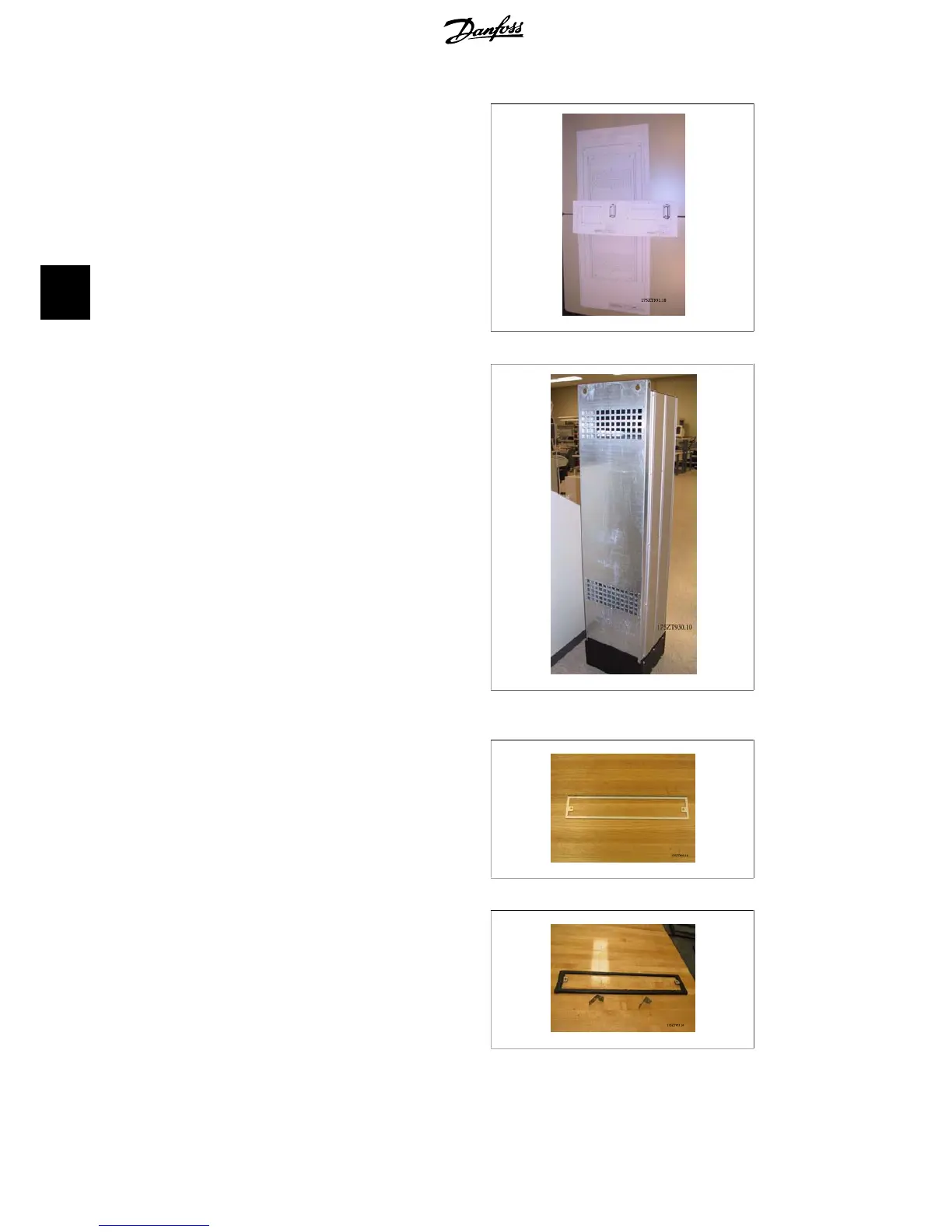

This illustration shows the full size template
included with the kit and two drawings that
may be used to locate the cutouts for the en-
closure top and bottom plates. The duct work
may also be used to locate the openings.
Illustration 4.1: Templates
Install gasket material on the back openings
of the frequency converter prior to installation
on the enclosure back panel.
Use the template provided with the kit (shown
above) and install the frequency converter on
the back panel of the Rittal enclosure. The
template is referenced to the top-left corner
of the back panel. Therefore the template may
be used with any size back panel and both the
1800 mm and 2000 mm high enclosures.
Illustration 4.2: Openings on rear not used in this
application
Before installing the back panel in the enclo-
sure assemble the gasket on both sides of the
bottom duct adapter as shown below, and in-
stall on the bottom of the frequency convert-
er.
Illustration 4.3: Bottom duct adapter
Illustration 4.4: Bottom duct adapter with gasket
installed
4. Duct Work Cooling Kit for IP00 Units
VLT
®
5000/6000/8000
High Power Installation Guide
36
MI.90.J2.02 - VLT
®
is a registered Danfoss trademark
4
