Danfoss VLT AQUA Drive Series User Manual

1) AUX Relay 5) Brake
01 02 03 -R +R
04 05 06 81 82
2) Temp Switch 6) SMPS Fuse (see fuse tables for part number)
106 104 105 7) AUX Fan
3) Line 100 101 102 103
R S T L1 L2 L1 L2
91 92 93 8) Fan Fuse (see fuse tables for part number)
L1 L2 L3 9) Mains ground
4) Load sharing 10) Motor
-DC +DC U V W
88 89 96 97 98
T1 T2 T3

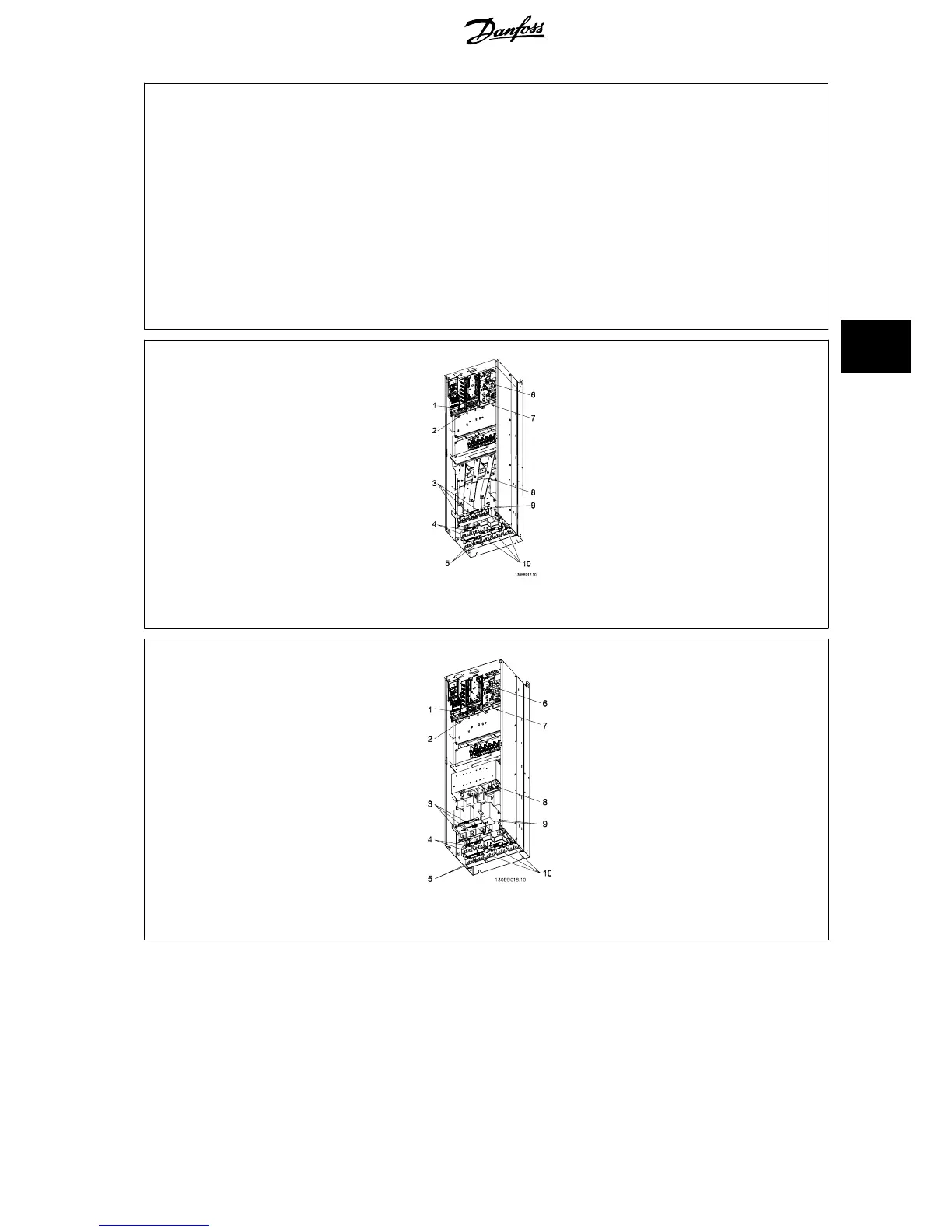

Illustration 5.25: Compact IP 00 (Chassis), frame size D3
Illustration 5.26: Compact IP 00 (Chassis) with disconnect, fuse and RFI filter, frame size D4
VLT
®
AQUA Drive Design Guide 5 How to Install
MG.20.N5.02 - VLT
®
is a registered Danfoss trademark 137
5
