5.5 Disconnectors, Circuit Breakers and Contactors
5.5.1 Mains Disconnectors

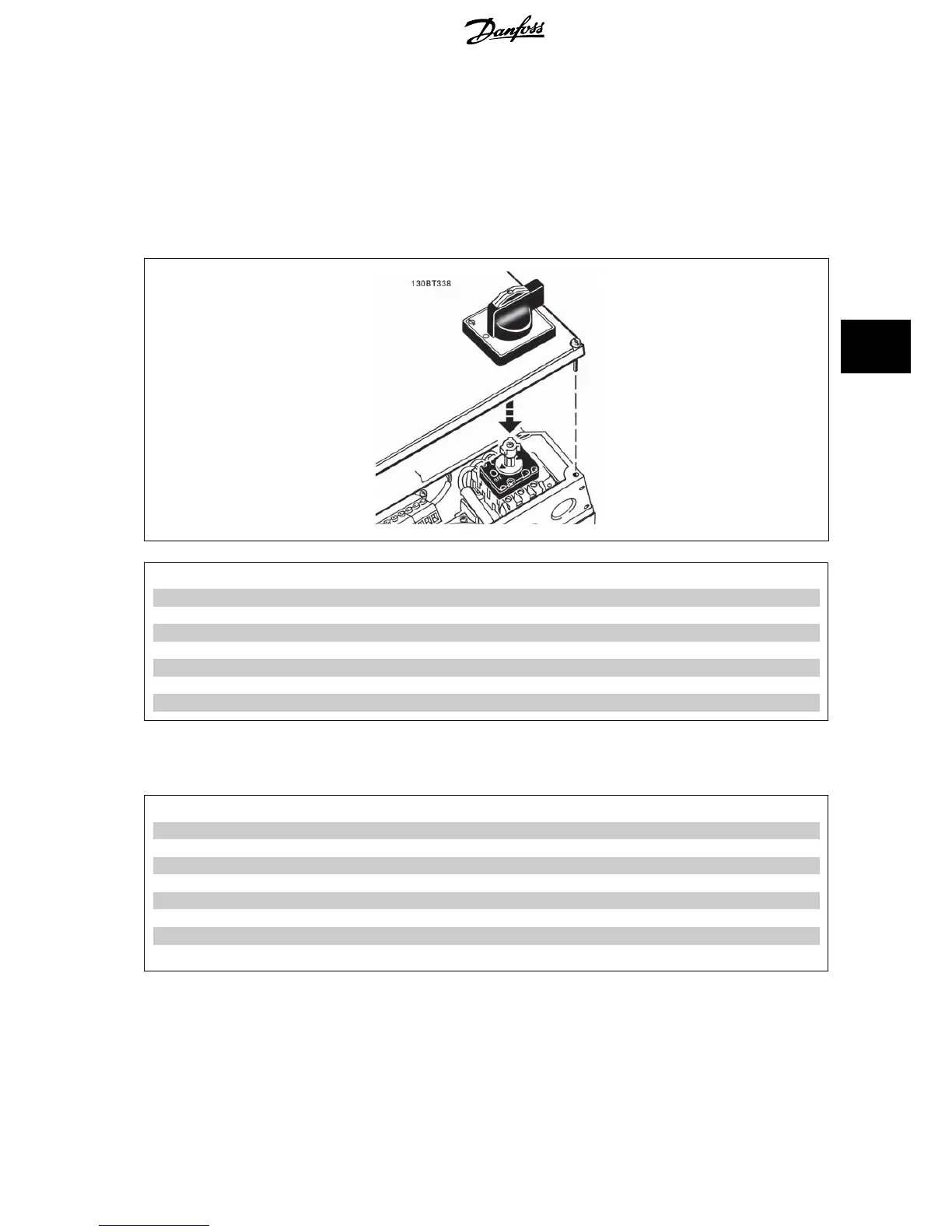

Assembling of IP55 / NEMA Type 12 (A5 housing) with mains disconnector
Mains switch is placed on left side on frame sizes B1, B2, C1 and C2 . Mains switch on A5 frames is placed on right side
Frame size: Type:
A5 Kraus&Naimer KG20A T303
B1 Kraus&Naimer KG64 T303
B2 Kraus&Naimer KG64 T303
C1 30 kW High Overload Kraus&Naimer KG100 T303
C1 37-45 kW High Overload Kraus&Naimer KG105 T303
C2 55 kW High Overload Kraus&Naimer KG160 T303
C2 75 kW High Overload Kraus&Naimer KG250 T303
5.5.2 Mains disconnectors - frame size D, E and F
Frame size Power & Voltage Type
D1/D3 P90K-P110 380-500V & P90K-P132 525-690V ABB OETL-NF200A
D2/D4 P132-P200 380-500V & P160-P315 525-690V ABB OETL-NF400A
E1/E2 P250 380-500V & P355-P560500HP-750HP 525-690V ABB OETL-NF600A
E1/E2 P315-P400 380-500V ABB OETL-NF800A
F3 P450 380-500V & P630-P710 525-690V Merlin Gerin NPJF36000S12AAYP*
F4 P500-P630 380-500V & P800 525-690V Merlin Gerin NRK36000S20AAYP*
F4 P710-P800 380-500V & P900-P1M0 525-690V Merlin Gerin NRK36000S20AAYP*
* Drive SCCR rating maybe less than 100 kA when this option is added. See the drive label for SCCR rating.
