3.7.4 Floor Mounting - Pedestal Installation IP21 (NEMA1) and IP54 (NEMA12)
Install the pedestal on the floor. Fixing holes are to be drilled according
to this figure:

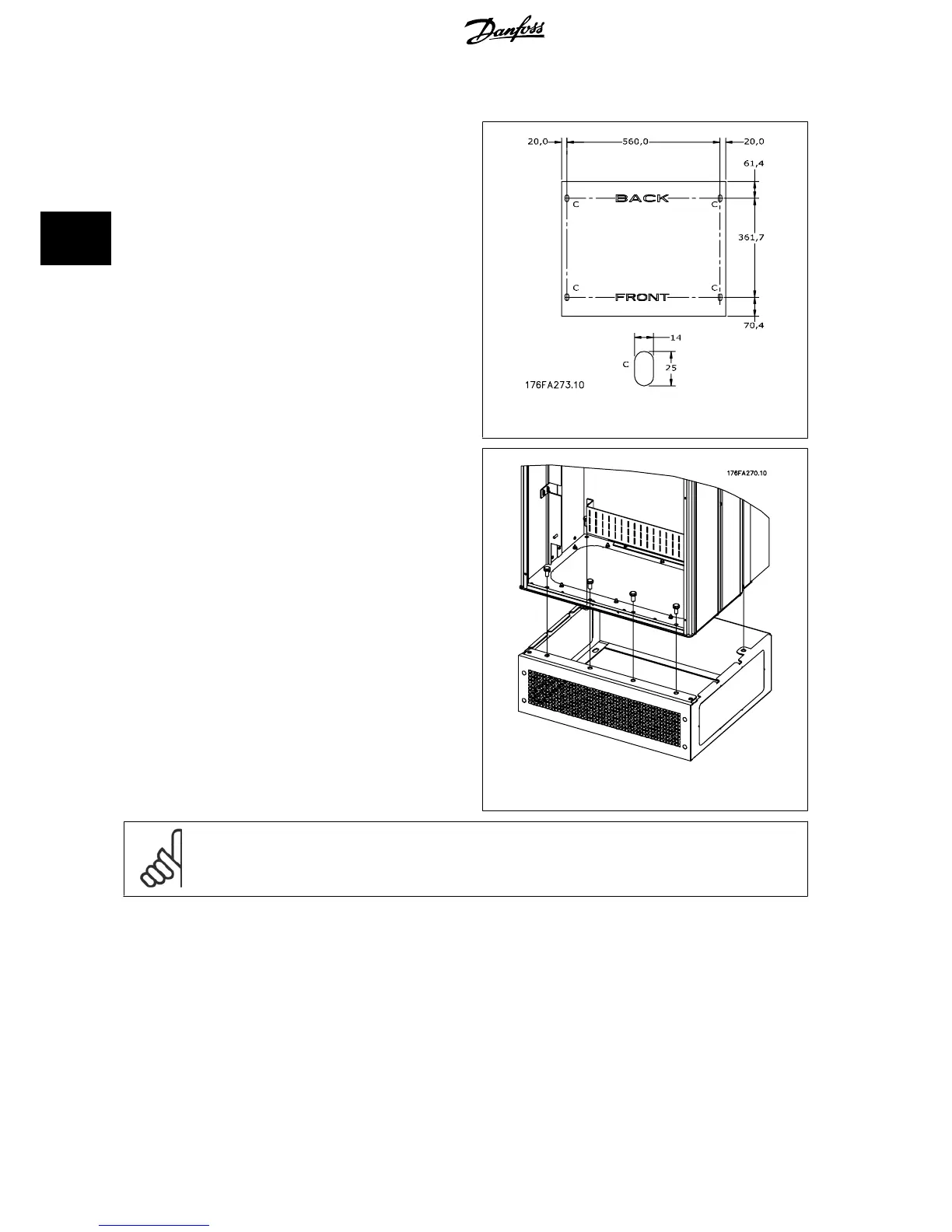

Illustration 3.35: Drill master for fixing holes in floor.
Mount the drive on the pedestal and fix it with the included bolts to the
pedestal as shown on the illustration.
Illustration 3.36: Mounting of drive to pedestal
NB!
Please see the
Pedestal Kit Instruction Manual, 175R5642
, for further information.
3.7.5 Input Plate Option
This section is for the field installation of input option kits available for frequency converters in all D and E frames.
Do not attempt to remove RFI filters from input plates. Damage may occur to RFI filters if they are removed from the input plate.
3 VLT AQUA Selection VLT
®
AQUA Drive Design Guide
86
MG.20.N5.02 - VLT
®
is a registered Danfoss trademark
3
