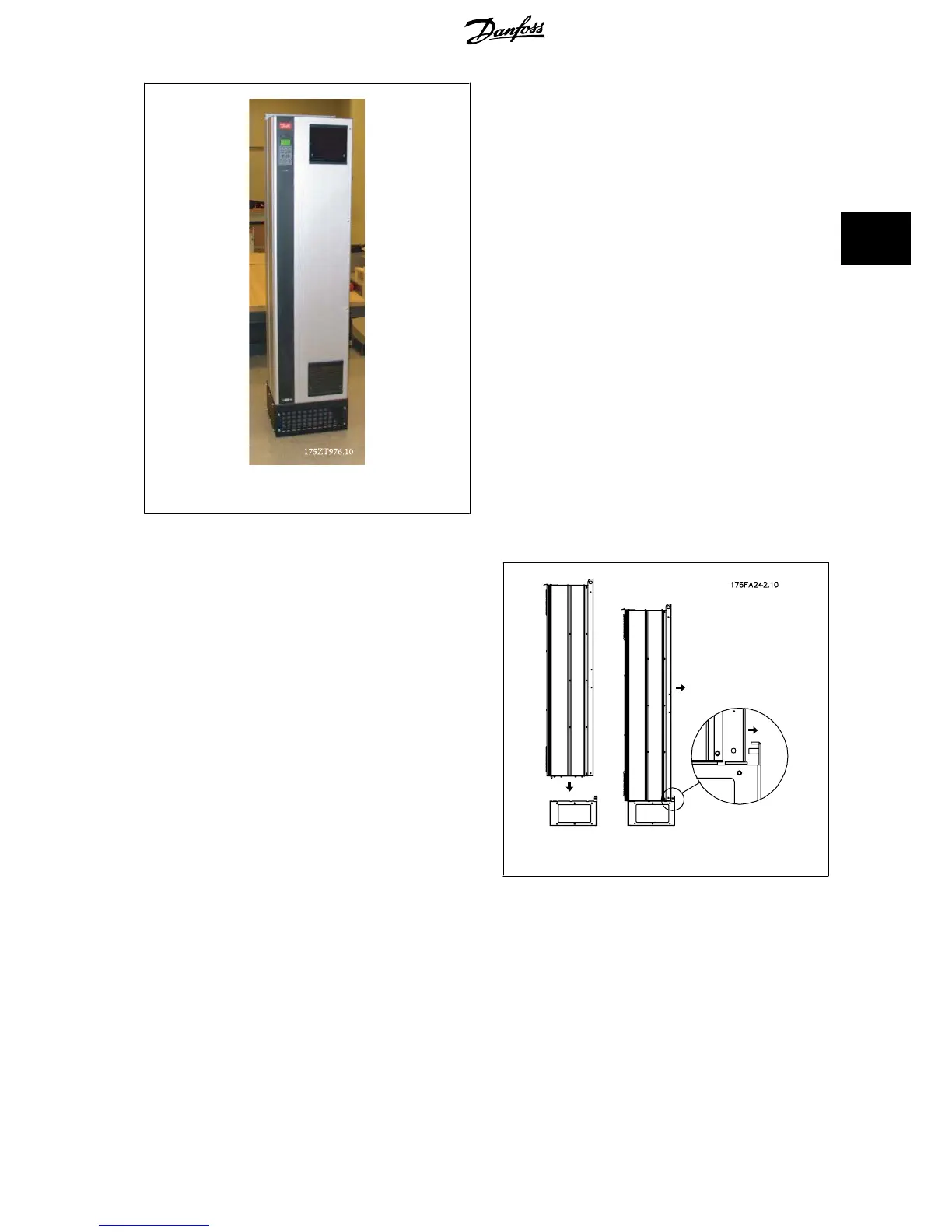

Illustration 3.33: Drive on pedestal
There is one pedestal that fits both frames D1 and D2. Its ordering number is 176F1827. The pedestal is standard for E1 frame.
Required Tools:
• Socket wrench with 7-17 mm sockets
• T30 Torx Driver
Torques:
• M6 - 4.0 Nm (35 in-lbs)
• M8 - 9.8 Nm (85 in-lbs)
• M10 - 19.6 Nm (170 in-lbs)
Kit Contents:
•Pedestal parts
• Instruction manual
Illustration 3.34: Mounting of drive to pedestal.
VLT
®
AQUA Drive Design Guide 3 VLT AQUA Selection
MG.20.N5.02 - VLT
®
is a registered Danfoss trademark 85
3
