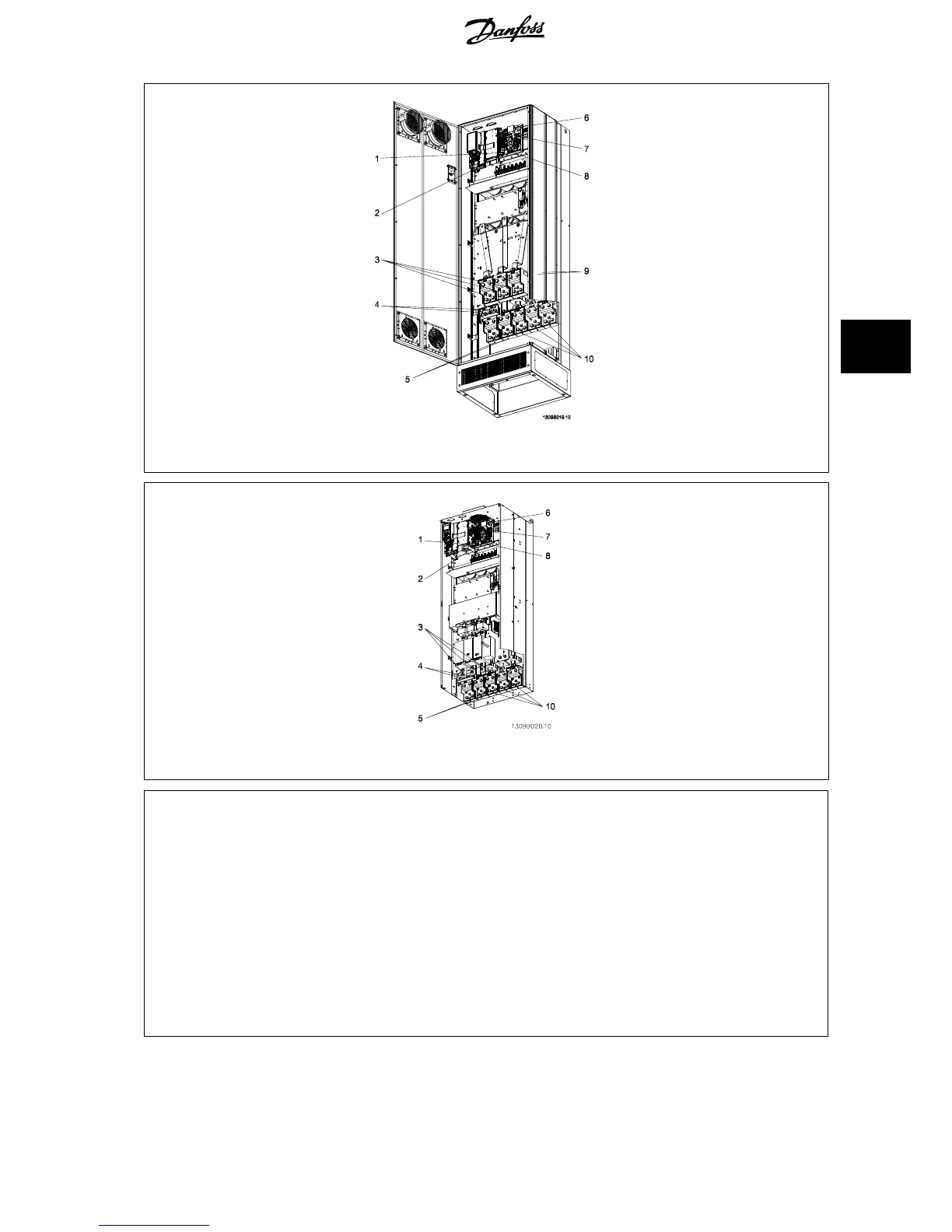

Illustration 5.29: Compact IP 21 (NEMA 1) and IP 54 (NEMA 12) frame size E1
Illustration 5.30: Compact IP 00 (Chassis) with disconnect, fuse and RFI filter, frame size E2
1) AUX Relay 5) Load sharing
01 02 03 -DC +DC
04 05 06 88 89
2) Temp Switch 6) SMPS Fuse (see fuse tables for part number)
106 104 105 7) Fan Fuse (see fuse tables for part number)
3) Line 8) AUX Fan
R S T 100 101 102 103
91 92 93 L1 L2 L1 L2
L1 L2 L3 9) Mains ground
4) Brake 10) Motor
-R +R U V W
81 82 96 97 98
T1 T2 T3
VLT
®
AQUA Drive Design Guide 5 How to Install
MG.20.N5.02 - VLT
®
is a registered Danfoss trademark
139
5
