60 AVM - Pulse Width Modulation, 525 - 690 V (except P400)

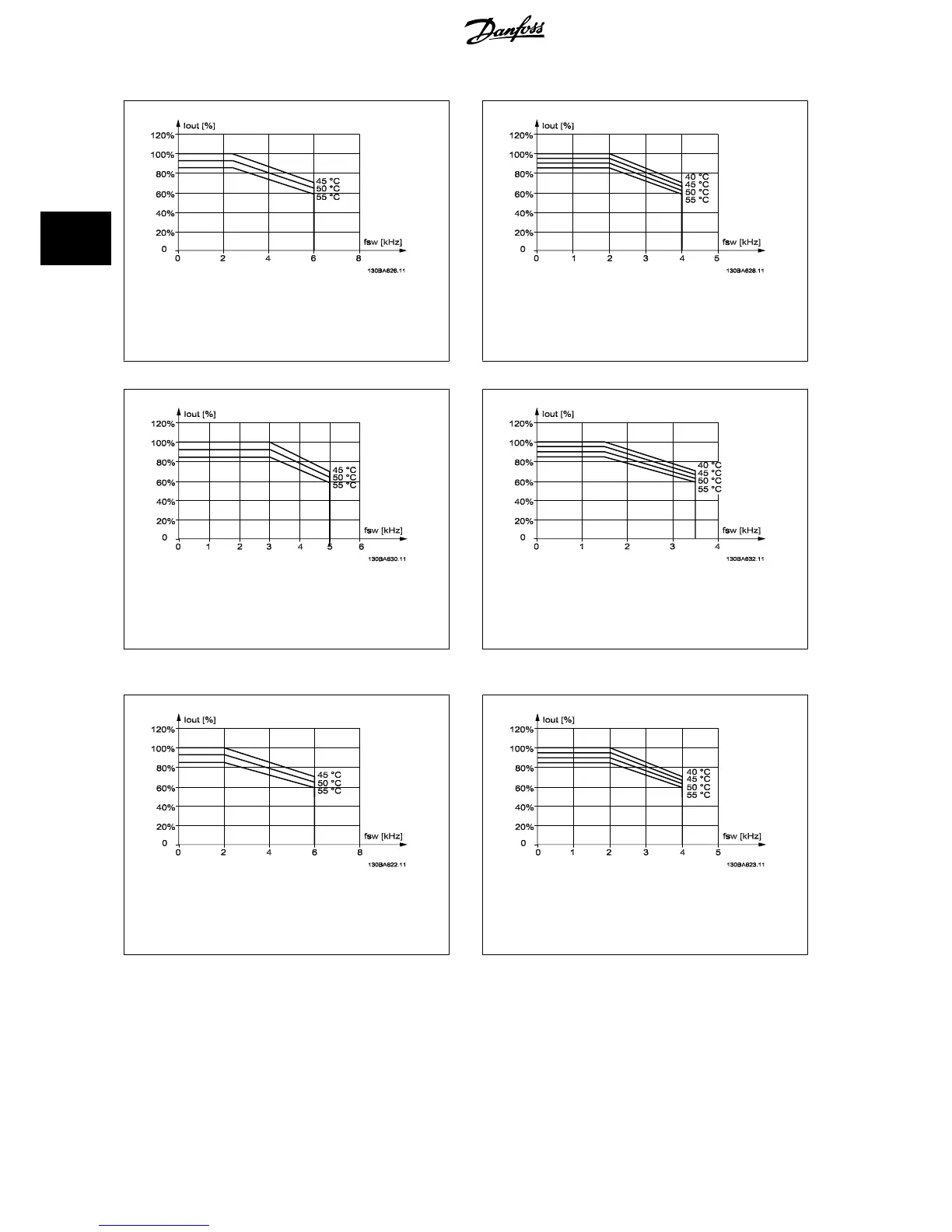

Illustration 3.11: Derating of I
out
for different T
AMB, MAX
for
enclosure D at 690 V, using 60 AVM in Normal torque mode
(110% over torque). Note:
not valid for P400.
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.12: Derating of I
out
for different T
AMB, MAX
for
enclosure D at 690 V, using SFAVM in Normal torque mode
(110% over torque). Note:
not valid for P400.
60 AVM - Pulse Width Modulation, 525 - 690 V, P400
Illustration 3.13: Derating of I
out
for different T
AMB, MAX
for
enclosure D at 690 V, using 60 AVM in Normal torque mode
(110% over torque). Note: P400
only .
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.14: Derating of I
out
for different T
AMB, MAX
for
enclosure D at 690 V, using SFAVM in Normal torque mode
(110% over torque). Note: P400
only .
E and F enclosures
60 AVM - Pulse Width Modulation, 380 - 480 V
Illustration 3.15: Derating of I
out
for different T
AMB, MAX
for
enclosure E at 480 V, using 60 AVM in Normal torque mode
(110% over torque)
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 3.16: Derating of I
out
for different T
AMB, MAX
for
enclosure E and F at 480 V, using SFAVM in Normal torque
mode (110% over torque)
