Danfoss VLT AutomationDrive FC 300 Instruction Manual

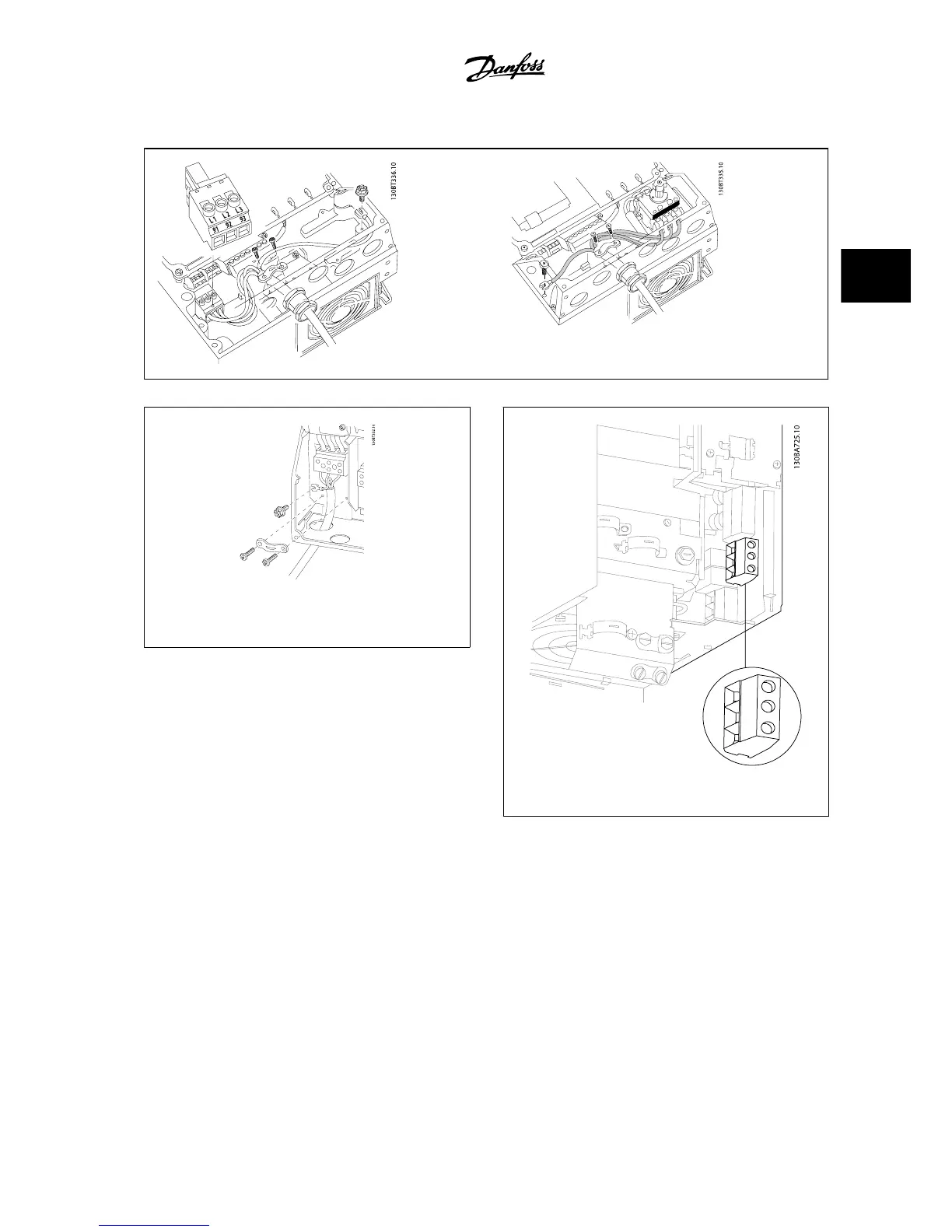

Line power connector frame size A4/A5 (IP 55/66)
When a disconnector is used (frame size A4/A5), the PE must be mounted on the left side of the drive.
Figure 3.3: AC line input connections frame sizes B1 and B2
(IP 21/NEMA Type 1 and IP 55/66/ NEMA Type 12).
Figure 3.4: AC line input connections size B3 (IP20).
VLT
®
AutomationDrive FC 300 Instruction
Manual
3 How to Install
MG.33.AG.22 - VLT
®
is a registered Danfoss trademark 3-11
3
