Danfoss VLT AutomationDrive FC 300 - Page 28

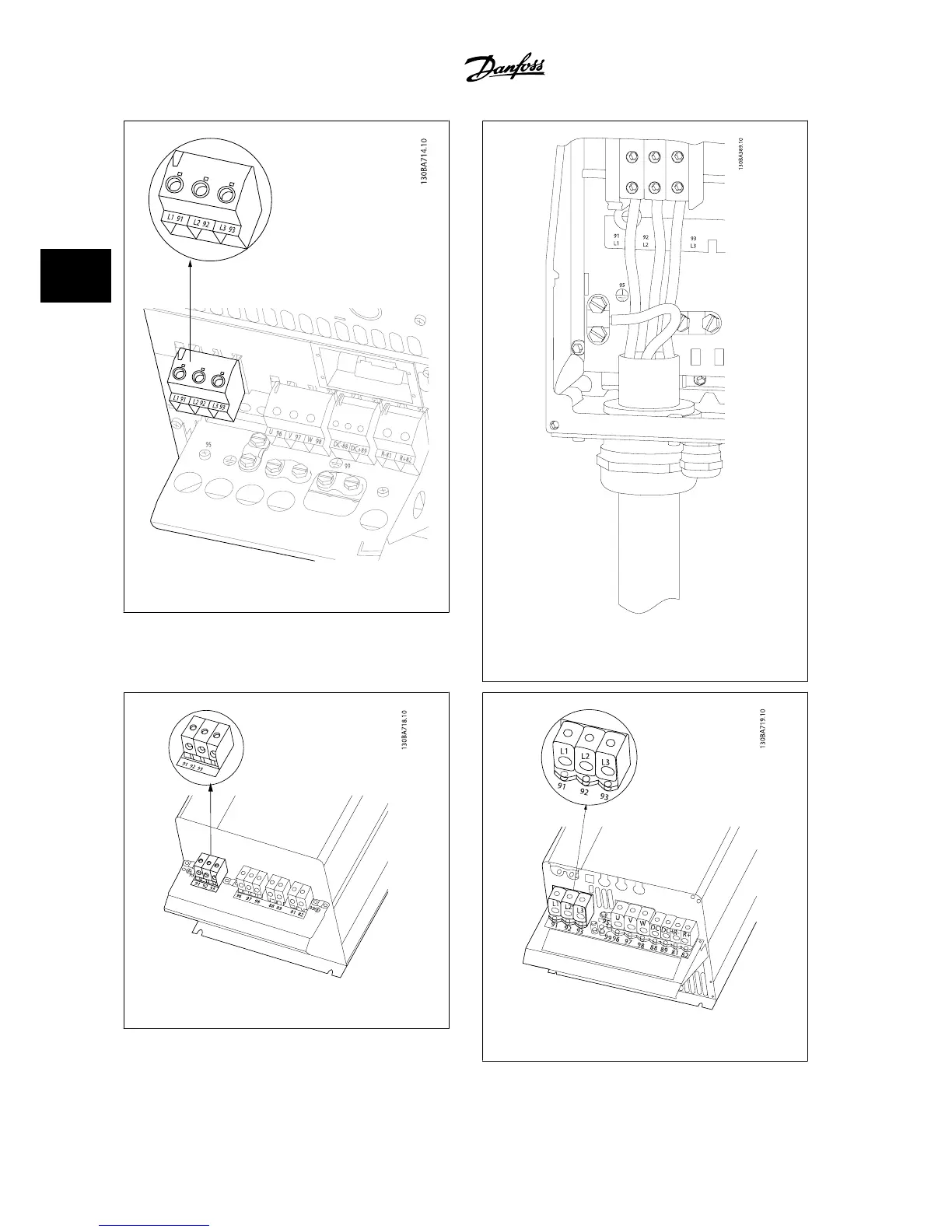

Figure 3.5: AC line input connections size B4 (IP20).
Figure 3.6: AC line input connections size C1 and C2 (IP 21/
NEMA Type 1 and IP 55/66/ NEMA Type 12).
Figure 3.7: AC line input connections size C3 (IP20).
Figure 3.8: AC line input connections size C4 (IP20).
3 How to Install
