Danfoss VLT AutomationDrive FC 300 Instruction Manual

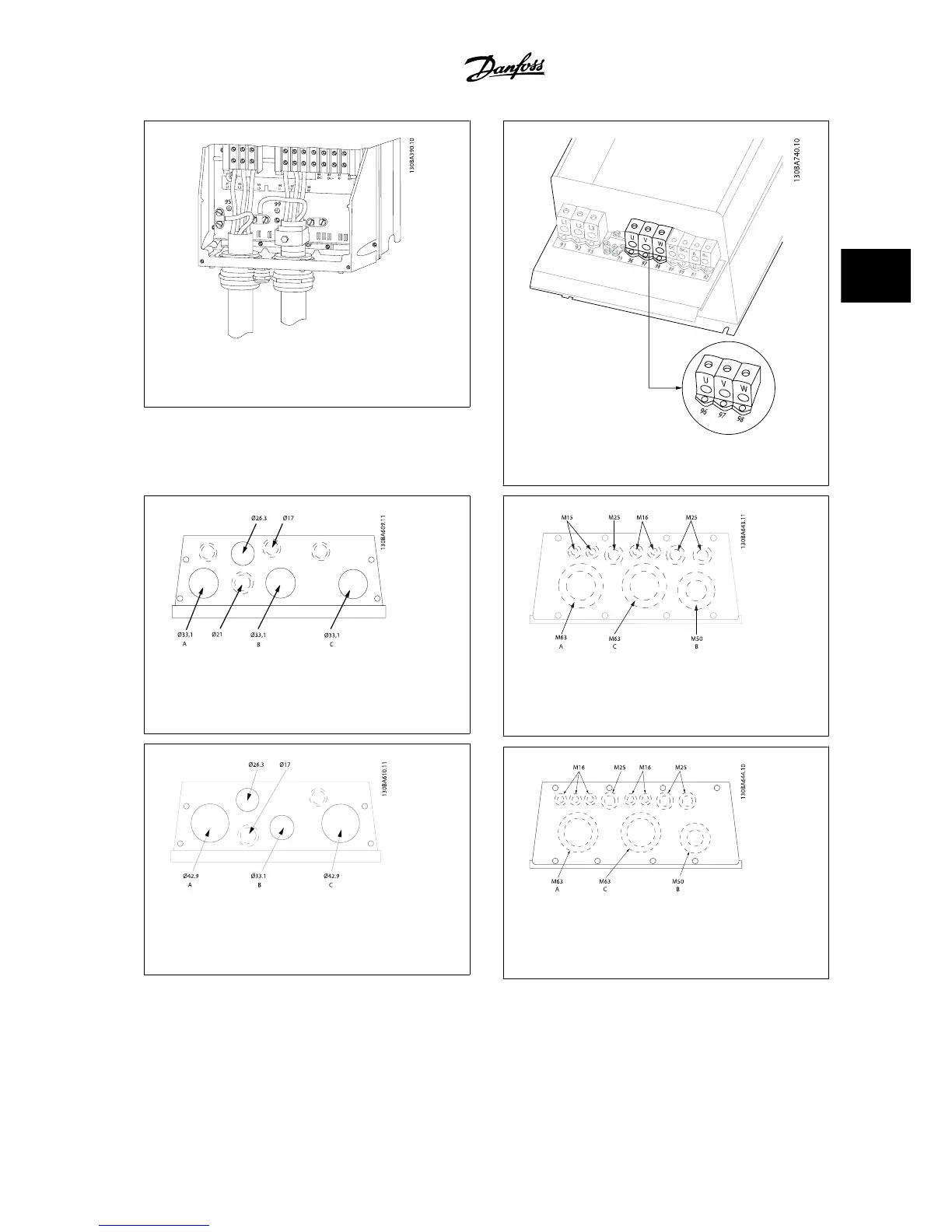

Figure 3.14: Motor connection frame size C1 and C2 (IP 21/
NEMA Type 1 and IP 55/66/ NEMA Type 12)
Figure 3.15: Motor connection for frame size C3 and C4.
Figure 3.16: Cable entry holes for frame size B1. The sug-
gested use of the holes are purely recommendations and
other solutions are possible.
Figure 3.17: Cable entry holes for frame size B2. The sug-
gested use of the holes are purely recommendations and
other solutions are possible.
Figure 3.18: Cable entry holes for frame size C1. The sug-
gested use of the holes are purely recommendations and
other solutions are possible.
Figure 3.19: Cable entry holes for frame size C2. The sug-
gested use of the holes are purely recommendations and
other solutions are possible.
Unused cable entry holes can be sealed with rubber grommets (for IP 21). More information and ordering numbers can be found in the Design Guide.
VLT
®
AutomationDrive FC 300 Instruction
Manual
3 How to Install
MG.33.AG.22 - VLT
®
is a registered Danfoss trademark 3-15
3
