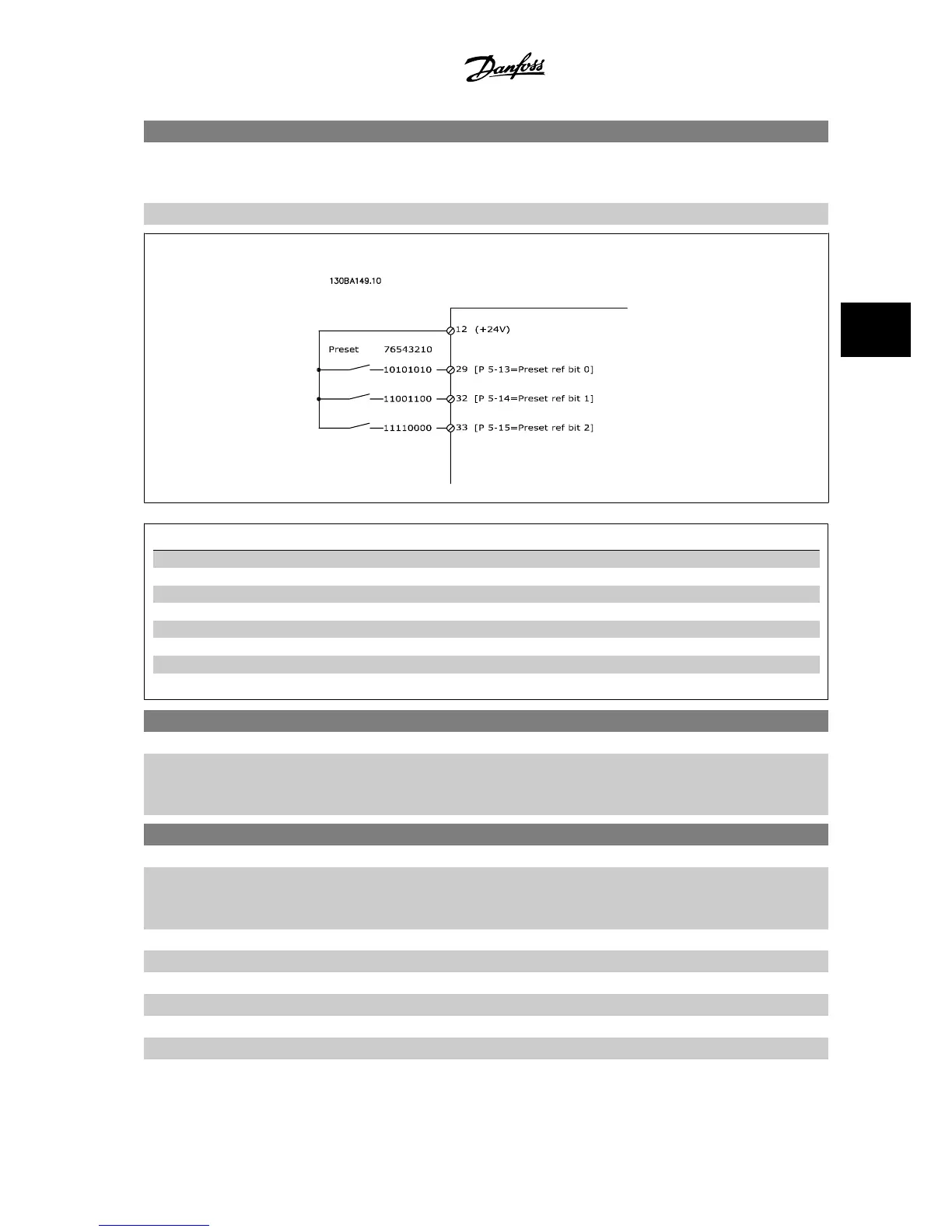

3-10 Preset Reference
Array [8]
Range: 0-7
Range: Function:
0.00 %* [-100.00 - 100.00 %]
Preset ref. bit 2 1 0
Preset ref. 0 0 0 0
Preset ref. 1 0 0 1
Preset ref. 2 0 1 0
Preset ref. 3 0 1 1
Preset ref. 4 1 0 0
Preset ref. 5 1 0 1
Preset ref. 6 1 1 0
Preset ref. 7 1 1 1
3-11 Jog Speed [Hz]
Range: Function:
Application
dependent*
[Application dependant] The jog speed is a fixed output speed at which the adjustable frequency drive is running when the
jog function is activated.
See also par. 3-80
Jog Ramp Time
.
3-15 Reference Resource 1
Option: Function:
Select the reference input to be used for the first reference signal. par. 3-15
Reference Resource
1
, par. 3-16
Reference Resource 2
and par. 3-17
Reference Resource 3
define up to three different
reference signals. The sum of these reference signals defines the actual reference.
[0] No function
[1] * Analog input 53
[2] Analog input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
VLT
®
AutomationDrive FC 300 Instruction
Manual
4 How to Program
MG.33.AG.22 - VLT
®
is a registered Danfoss trademark
