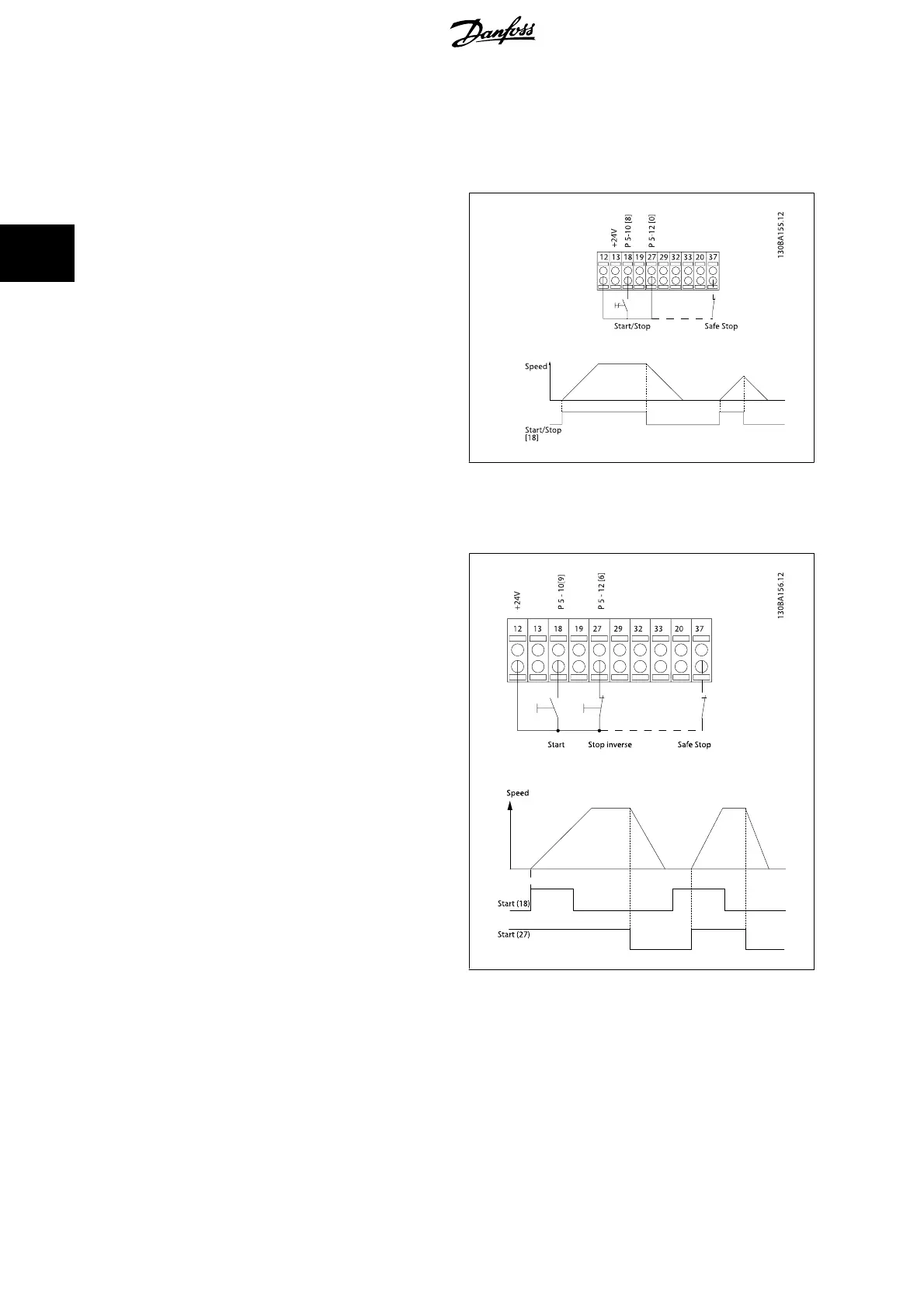

3.4 Connection Examples

3.4.1 Start/Stop

Terminal 18 = par. 5-10

Terminal 18 Digital Input

[8]

Start

Terminal 27 = par. 5-12

Terminal 27 Digital Input

[0]

No operation

(De-

fault

coast inverse

)

Terminal 37 = Safe stop (where available!)

3.4.2 Pulse Start/Stop

Terminal 18 = par. 5-10

Terminal 18 Digital Input

Latched start, [9]

Terminal 27= par. 5-12

Terminal 27 Digital Input

Stop inverse, [6]

Terminal 37 = Safe stop (where available!)

3 How to Install

VLT

AutomationDrive FC 300 Operating

Instructions

MG.33.AG.02 - VLT

is a registered Danfoss trademark
