Danfoss VLT AutomationDrive FC 302 Instruction Manual

2078.4
2278.4
130BC174.11
2792.0
[110]
605.8
[24]

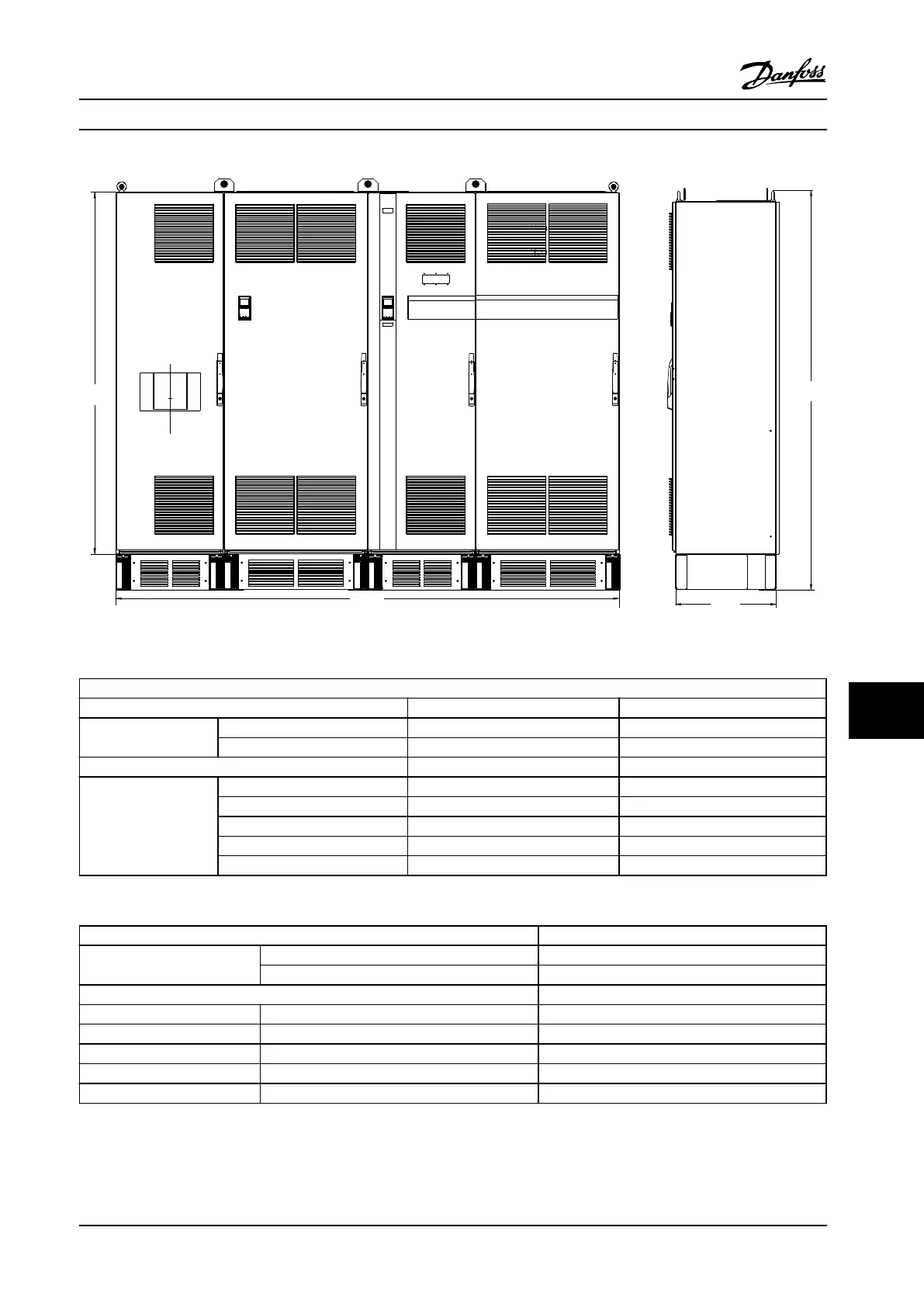

Figure 11.5 Frame Size F18, Front and Side View
Mechanical dimensions and rated power
Frame size D13 E9
Enclosure protection
IP 21/54 21/54
NEMA Type 1/Type 12 Type 1/Type 12
High overload rated power - 160% overload torque
132–200 kW at 400 V (380–480 V) 250–400 kW at 400 V (380–480 V)
Drive Dimensions
Height 70.1 in [1780.5 mm] 78.77 in [2000.7 mm]
Width 40.23 in [1,021.9 mm] 47.24 in [1,200 mm]
Depth 14.87 in [377.8 mm] 19.43 in [193.5 mm]
Max. weight 860 lb [390 kg] 1490 lb [679 kg]
Shipping weight 959 lb [435 kg] 1590 lb [721 kg]
Table 11.4 Physical Specifications, D and E Frames
Frame size F18
Enclosure protection
IP 21/54
NEMA Type 1
High overload rated power - 160% overload torque
450–630 kW at 400 V (380–480 V)
Drive Dimensions
Height 89.7 in [2,278.4 mm]
Width 109.92 in [2,792 mm]
Depth 23.85 in [605.8 mm]
Max. weight 4189 lb [1,900 kg]
Shipping weight 4987 lb [2,262 kg]
Table 11.5 Physical Specifications, F Frame
Specifications
Instruction Manual
MG37A222 Danfoss A/S © Rev. 2014-02-07 All rights reserved. 155
11 11
