Danfoss VLT CDS302 User Manual

91 92 93
91 92 93
96 97 98
88 89
81 82
99
95
130BA718.10

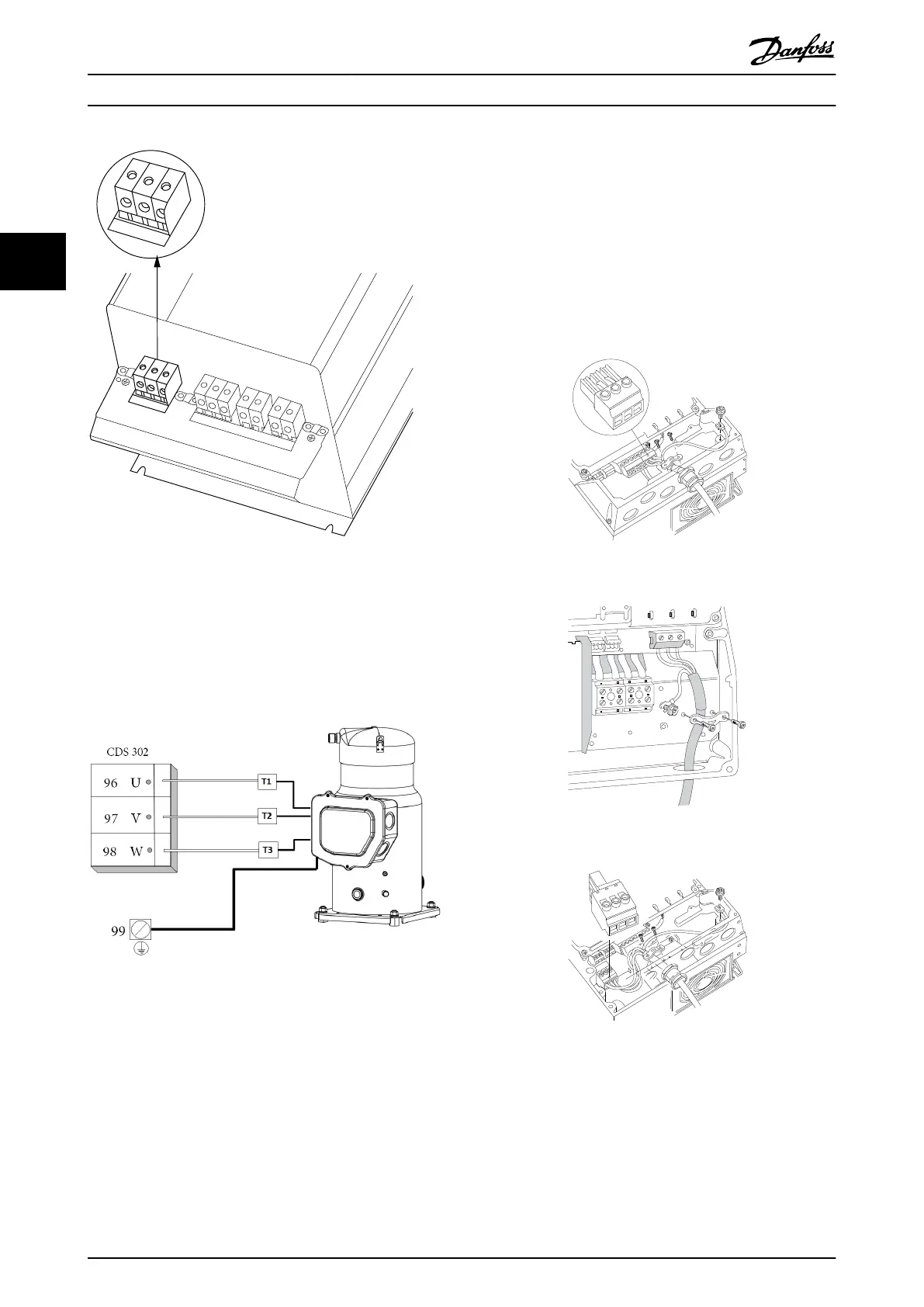

Illustration 3.11 How to Connect C3 to Mains and Earthing.
3.3.5
Motor Compressor Connection
NOTE
Always wire terminal 96 (U) to T1, 97 (V) to T2, and 98 (W)
to T3.
130BC399.10
Illustration 3.12 Motor/Compressor Wiring
Motor compressor cable must be screened/armoured. If an
unscreened/unarmoured cable is used, some EMC
requirements are out of compliance. For more information,
see EMC specifications.
1. Fasten decoupling plate to the bottom of the
frequency converter with screws and washers
from the accessory bag.
2. Attach motor compressor cable to terminals 96
(U), 97 (V), 98 (W).
3. Connect to earth connection (terminal 99) on
decoupling plate with screws from the accessory
bag.
4. Insert terminals 96 (U), 97 (V), 98 (W) and motor
compressor cable to terminals labelled MOTOR.
5. Fasten screened cable to decoupling plate with
screws and washers from the accessory bag.
6. U, V, W for motor compressor need to be
clockwise connected.
U
V
W
96
97
98
130BT337.10
Illustration 3.13
130BT333.10
Illustration 3.14
L 1
L 2
L 3
91
92
93
130BT336.10
Illustration 3.15
How to Install
Operating Instructions VLT
®
CDS302 and CDS303
20 MG34M302 - VLT
®
is a registered Danfoss trademark/Commercial Compressor
3
3
