3.3.14 Basic Examples of Control Connections

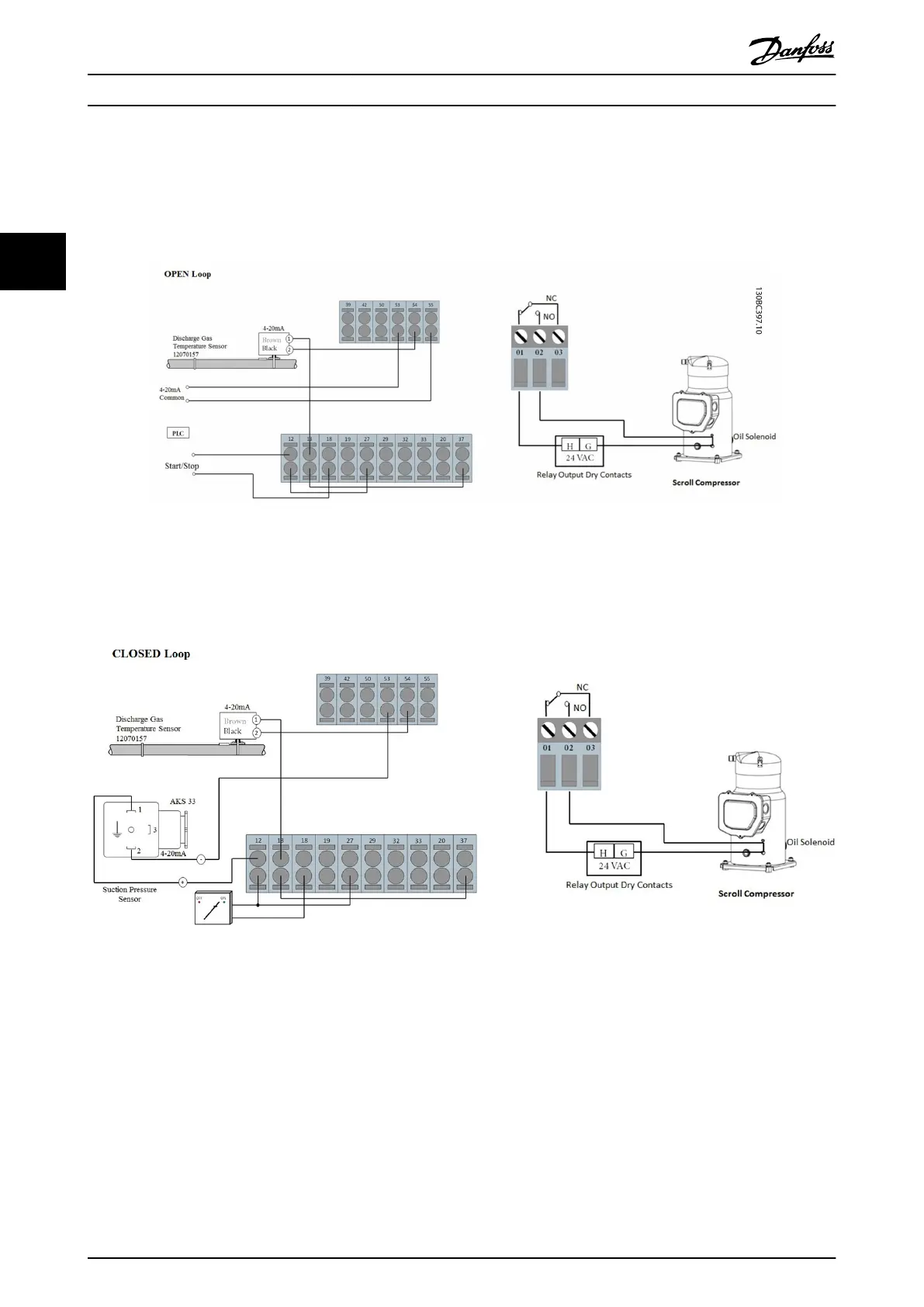

Controls using an external controller with 0-10 V signal. It
is not necessary to change any parameters, as this is the
default value.
Illustration 3.28
Controls using an external controller with 4-20 mA signal.
Change switch 53 from U to I. It is not necessary to change
any parameters, as this is the default value.
130BC398.10
Illustration 3.29
