Duct cooling
A dedicated option has been developed to optimize installation of IP00 / Chassis enclosed adjust-
able frequency drives in Rittal TS8 enclosures utilizing the fan of the adjustable frequency drive
for forced cooling.

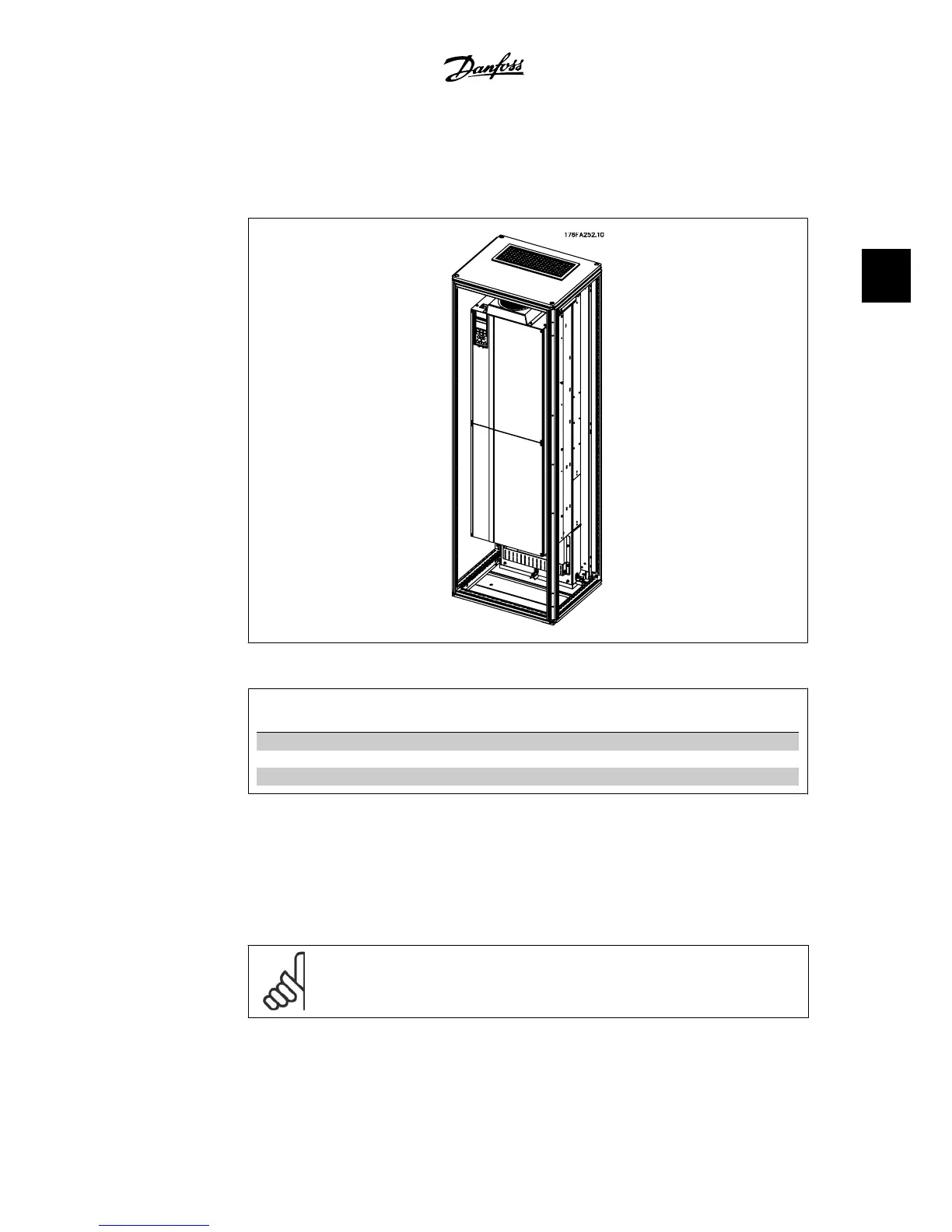

3.19: Installation of IP 00 in Rittal TS8 enclosure
Rittal TS8 Enclo-
sure
Frame D3 Kit Part
No.
Frame D4 Kit Part
No.
Frame E2 Part No.
70.9 in [1800 mm] 176F1824 176F1823 Not possible
78.7 in [2000 mm] 176F1826 176F1825 176F1850
86.6 in [2200 mm] 176F0299
3.3: Duct Kit Ordering Numbers
Back cooling
Using the channel from the back allows for easy installation in control rooms, for example. The
unit mounted at the rear of the enclosure allows for the cooling of the units just as easily as the
duct cooling principle. The hot air is ventilated out of the back of the enclosure. This offers a
solution in which the hot cooling air from the adjustable frequency drive does not cause the control
room to heat up.
NOTE
A small door fan is required on the Rittal cabinet to provide additional cooling within
the drive.
