d.
e.
Secure the lifting eyelets to the top of the cabinets. See Illustration 15.
Join the grounding bars using the connector piece (see the shaded piece in Illustration 16).
Example
e30bu125.10
1
2

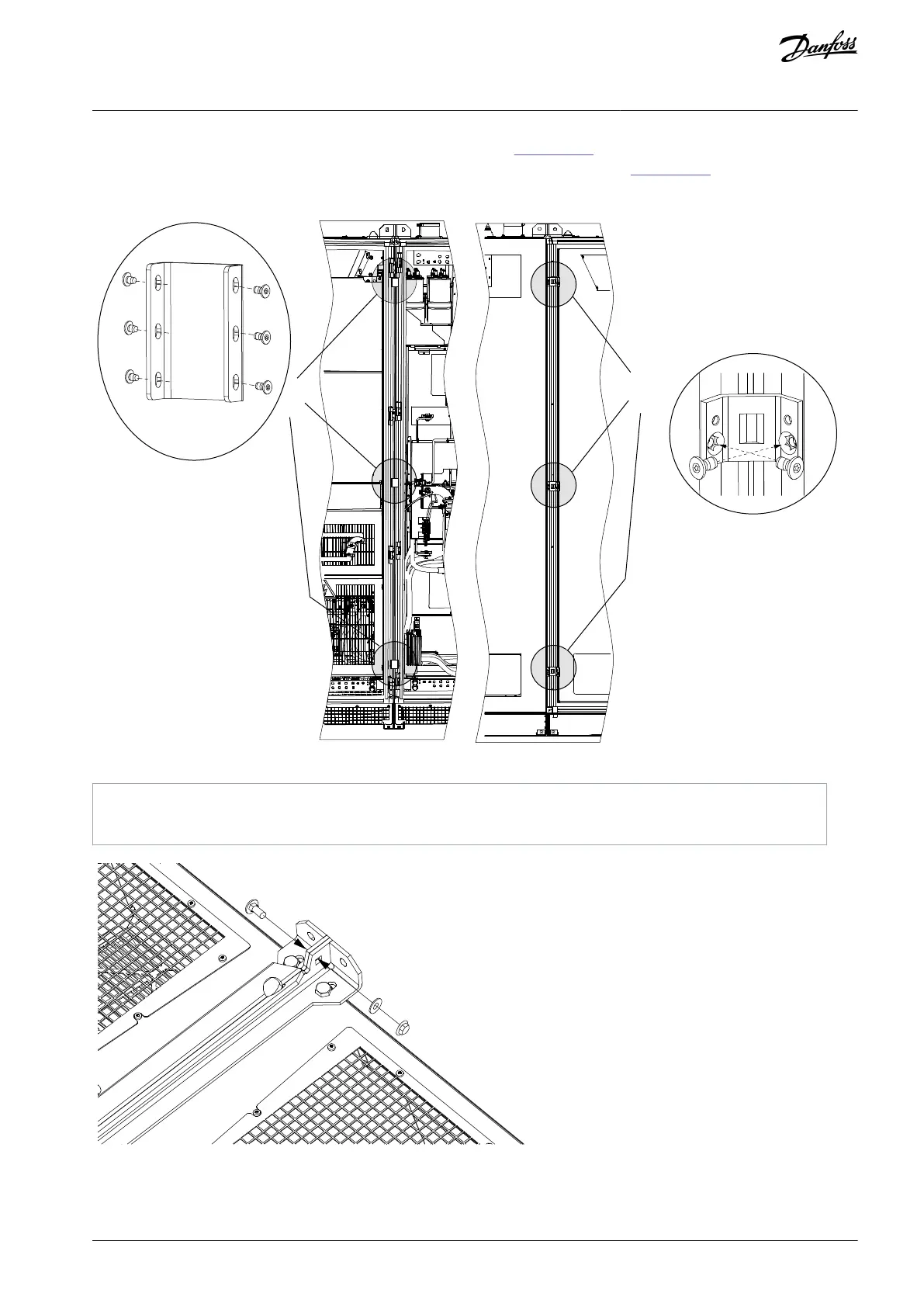

Illustration 14: Bracket Mounting Points for Cabinets
1
Front brackets
2
Back brackets
e30bu133.10
Illustration 15: Connecting the Lifting Eyelet Between Cabinets
