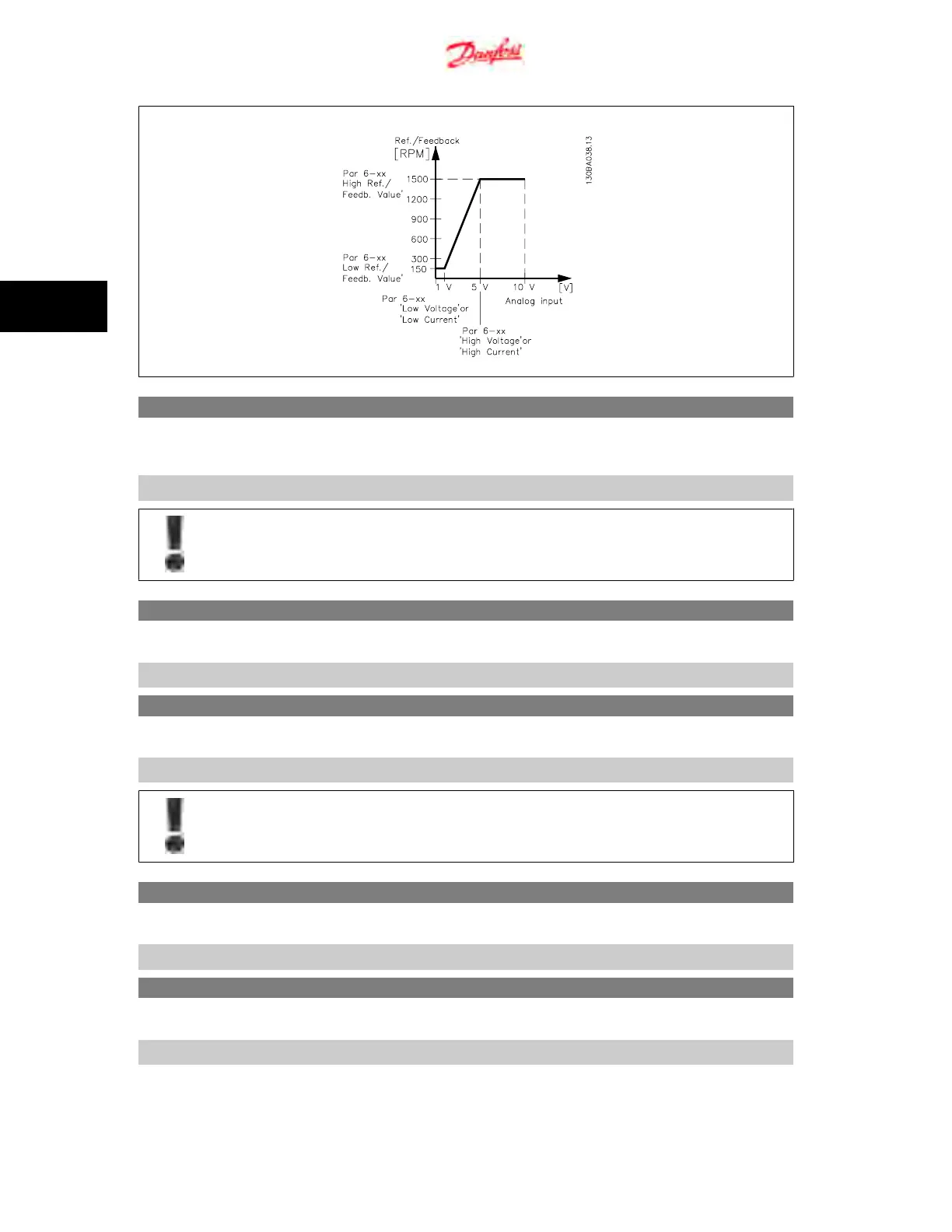

Danfoss VLT Micro Drive FC 51 Series Programming Guide

6-10 Terminal 53 Low Voltage
Range: Function:
This scaling value should correspond to minimum reference value set in par. 6-14. See also section Reference
Handling
.
0.07 V
* [0.00 - 9.90 V]
Enter low voltage value.
The value must be set to min. 1V in order to activate the Live Zero Timeout function in par. 6-01.
6-11 Terminal 53 High Voltage
Range: Function:
This scaling value should correspond to maximum reference value set in par. 6-15.
10.0 V
* [0.10 - 10.00 V]
Enter high voltage value.
6-12 Terminal 53 Low Current
Range: Function:
This reference signal should correspond to minimum reference value set in par. 3-02.
0.14 mA
* [0.00 - 19.90 mA]
Enter low current value.
The value must be set to min. 2 mA in order to activate the Live Zero Timeout function in par. 6-01.
6-13 Terminal 53 High Current
Range: Function:
This reference signal should correspond to the maximum reference value set in par. 6-15.
20.00 mA
* [0.10 - 20.00 mA]
Enter high current value.
6-14 Terminal 53 Low Ref./Feedb. Value
Range: Function:
The scaling value corresponding to the low voltage/low current set in parameters 6-10 and 6-12.
0.000
* [-4999 - 4999]
Enter analog input scaling value.
4. Parameter Descriptions VLT
p
Micro Drive FC 51
38 MG.02.C4.02 - VLT
p
is a registered Danfoss trademark
4
