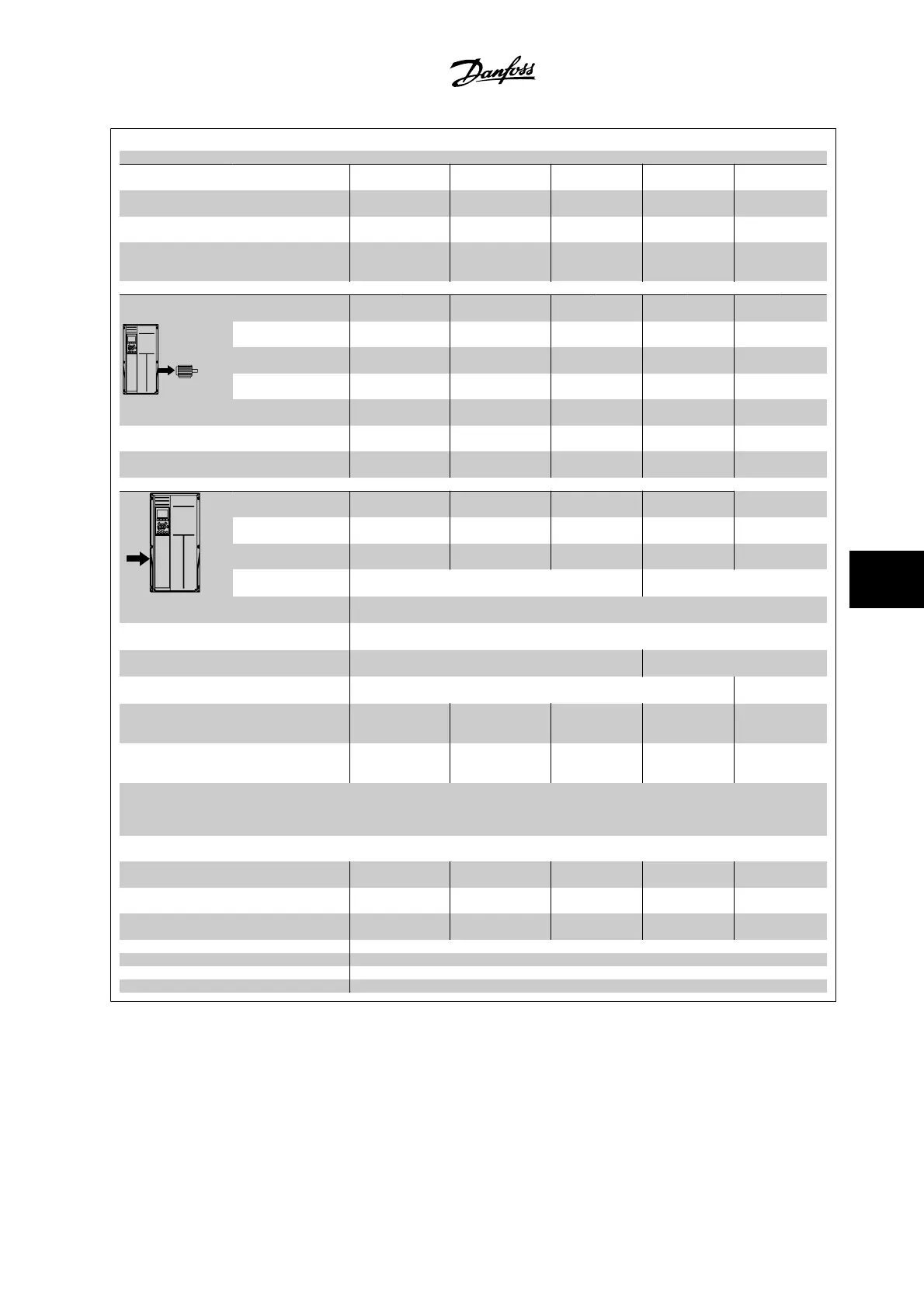

Danfoss VLT User Manual

Line Power Supply 3 x 525–690 V AC
P710 P800 P900 P1M0 P1M2
Typical Shaft output at
550 V [kW]
560 670 750 850 1000
Typical Shaft output at
575 V [HP]
750 950 1050 1150 1350
Typical Shaft output at
690 V [kW]
710 800 900 1000 1200
Enclosure IP21, 54
without / with options
cabinet
F1/ F3 F1/ F3 F1/ F3 F2/ F4 F2/ F4
Output current
Continuous
(at 550 V) [A]
763 889 988 1108 1317
Intermittent (60 s over-
load, at 550 V) [A]
839 978 1087 1219 1449
Continuous
(at 575/690 V) [A]
730 850 945 1060 1260
Intermittent (60 s over-
load, at 575/690 V) [A]
803 935 1040 1166 1386
Continuous KVA
(at 550 V) [KVA]
727 847 941 1056 1255
Continuous KVA
(at 575 V) [KVA]
727 847 941 1056 1255
Continuous KVA
(at 690 V) [KVA]
872 1016 1129 1267 1506
Max. input current
Continuous
(at 550 V) [A]
743 866 962 1079 1282
Continuous
(at 575 V) [A]
711 828 920 1032 1227
Continuous
(at 690 V) [A]
711 828 920 1032 1227
Max. cable size,motor
[mm
2
(AWG
2)
)]
8x150
(8x300 mcm)
12x150
(12x300 mcm)
Max. cable size, line
power [mm
2
(AWG
2)
)]
8x240
(8x500 mcm)
Max. cable size, load-
sharing [mm
2
(AWG
2)
)]
4x120
(4x250 mcm)
Max. cable size, brake
[mm
2
(AWG
2)
)
4x185
(4x350 mcm)
6x185
(6x350 mcm)
Max. external pre-fuses
[A]
1)
1600 2000
Est. power loss
at rated max. load [W]
4)
, 575 V, F1 & F2
10771 12272 13835 15592 18281
Est. power loss
at rated max. load [W]
4)
, 690 V, F1 & F2
11315 12903 14533 16375 19207
Max. added losses of
Circuit Breaker or Dis-
connect & Contactor,
F3 & F4
422 526 610 658 855
Max Panel Options Los-
ses
400
Weight,enclosure IP21,
IP 54 [kg]
1004/ 1299 1004/ 1299 1004/ 1299 1246/ 1541 1246/ 1541
Weight, Rectifier
Module [kg]
102 102 102 136 136
Weight, Inverter
Module [kg]
102 102 136 102 102
Efficiency
4)
0.98
Output frequency 0–500 Hz
Heatsink overtemp. trip 185°F [85°C]
Power card amb. trip 154°F [68°C]
1) For type of fuse, see the section Fuses.
2) American Wire Gauge.
3) Measured using 16.4 ft [5 m] shielded motor cables at rated load and rated frequency.
4) The typical power loss is at nominal load conditions and expected to be within +/-15% (tolerance relates to variety in voltage and cable
conditions). Values are based on a typical motor efficiency (eff2/eff3 border line). Motors with lower efficiency will also add to the power loss
VLT
®
HVAC Drive Instruction Manual 8 Specifications
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 8-13
8

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
