4.1.8 AC line input connections for B4, C1 and C2

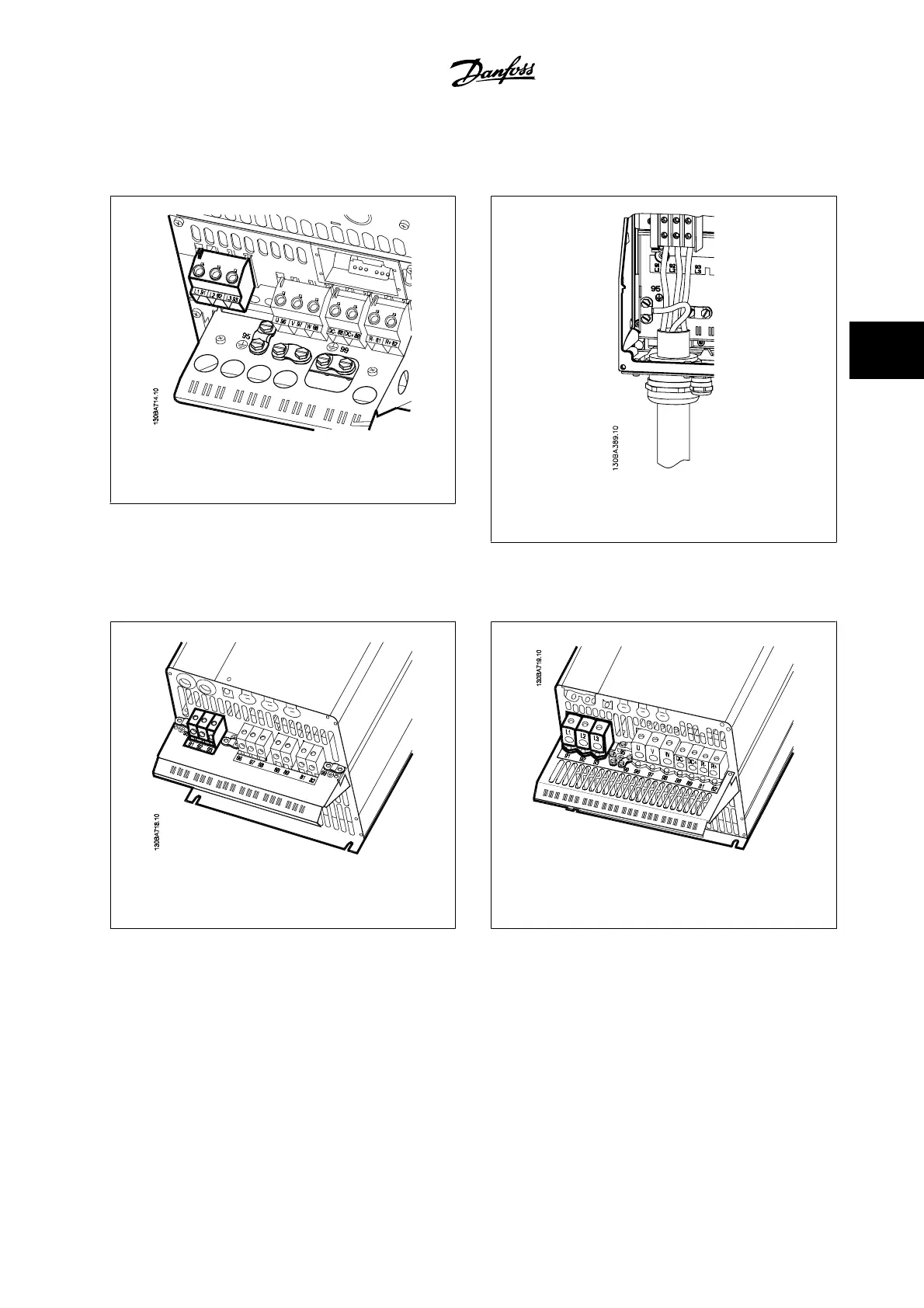

Figure 4.11: How to connect to line power and grounding
for B4.
Figure 4.12: How to connect to line power and grounding
for C1 and C2.
4.1.9 AC line input connections for C3 and C4
Figure 4.13: How to connect C3 to line power and ground-
ing.
Figure 4.14: How to connect C4 to line power and ground-
ing.
4.1.10 How to connect the motor - foreword
See section General Specifications for correct dimensioning of motor cable cross-section and length.
• Use a shielded/armored motor cable to comply with EMC emission specifications (or install the cable in a metal conduit).
• Keep the motor cable as short as possible to reduce the noise level and leakage currents.
• Connect the motor cable shield/armor to both the decoupling plate of the adjustable frequency drive and to the metal of the motor. (The same
applies to both ends of the metal conduit if used instead of a shield.)
VLT
®
HVAC Drive Instruction Manual 4 Electrical installation
MG.11.A9.22 - VLT
®
is a registered Danfoss trademark 4-11
4

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
