Enclosure:
A2
(IP 20/IP 21)
A3
(IP 20/IP 21)
A5
(IP 55/IP 66)
B1
(IP 21/IP 55/
IP 66)
B2
(IP 21/IP 55/
IP 66)
B3
(IP 20)
B4
(IP 20)
C1
(IP 21/IP 55/66)
C2
(IP 21/IP 55/66)
C3
(IP 20)
C4
(IP20)
Motor size: 200–240 V
1.1–3.0
kW
3.7
kW
1.1–3.7
kW
5.5–11
kW
15
kW
5.5–11
kW
15–18.5
kW
18.5–30
kW
37–45
kW
22–30
kW
37–45
kW
380–480 V
1.1–4.0
kW
5.5–7.5
kW
1.1–7.5
kW
11–18.5
kW
22–30
kW
11–18.5
kW
22–37
kW
37–55
kW
75–90
kW
45–55
kW
75–90
kW
525–600 V
1.1–7.5
kW
1.1–7.5
kW
11–18.5
kW
22–30
kW
11–18.5
kW
22–37
kW
37–55
kW
75–90
kW
45–55
kW
75–90
kW
Go to: 4.1.12 4.1.13 4.1.14 4.1.15 4.1.16 4.1.17

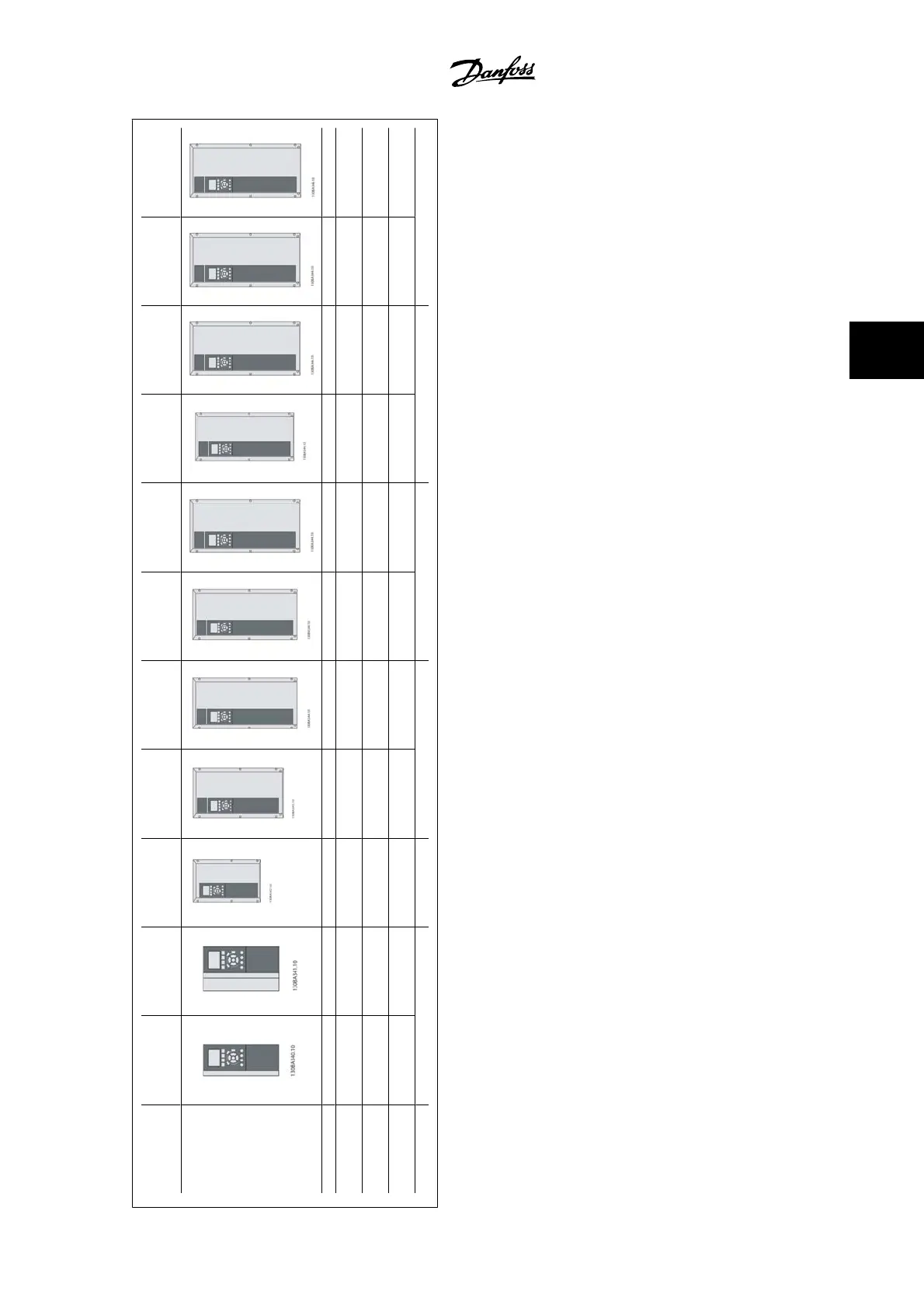

Table 4.17: Motor wiring table.
4.1.11 Motor wiring overview
