Danfoss VLT5000 SyncPos User Manual

37
MG.10.J8.02 – VLT is a registered Danfoss trade mark
Programmable SyncPos motion controller

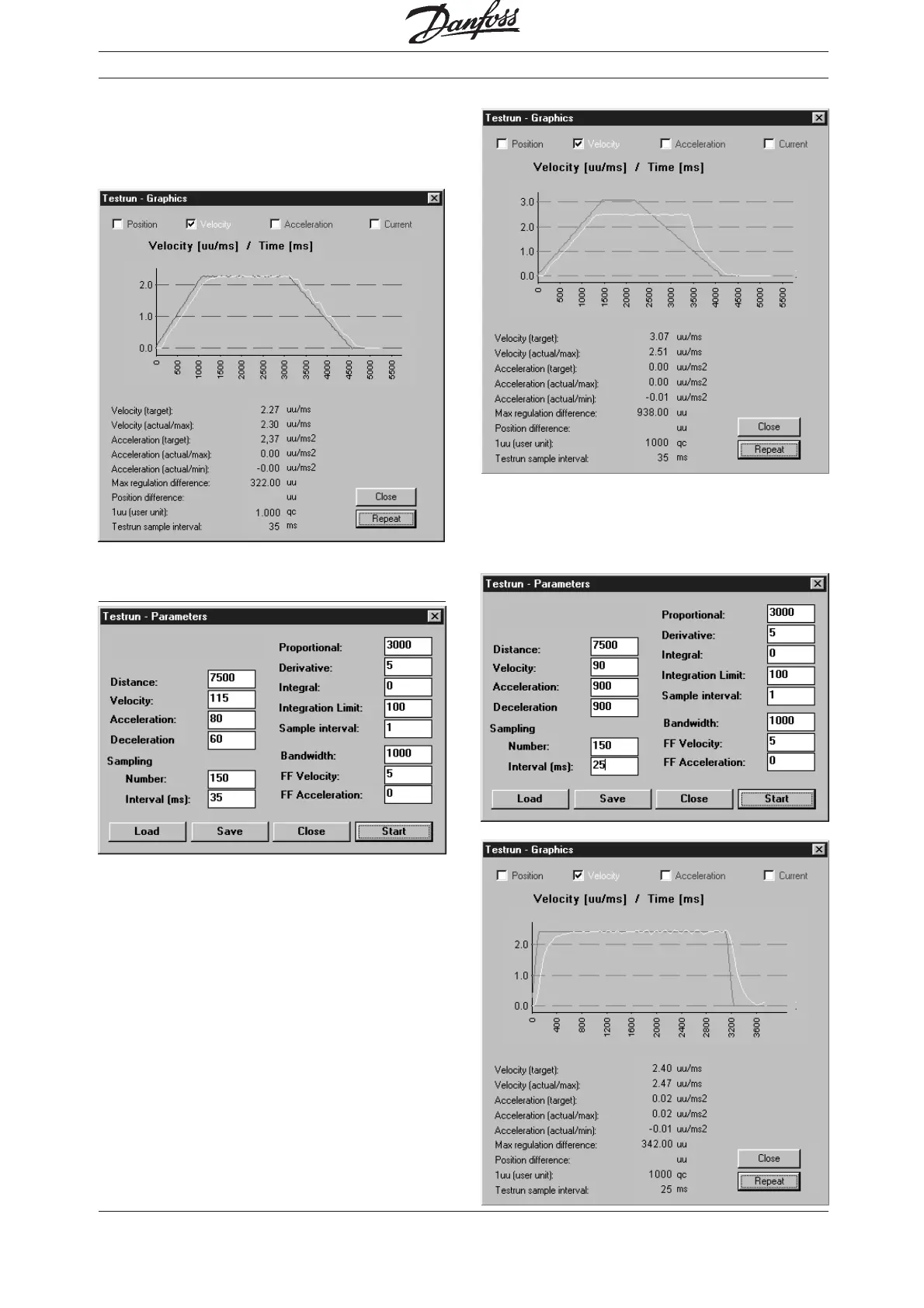

However, the drive now reacts somewhat slowly to
changes in velocity, which leads to a deviation from
the set curve at the beginning of the acceleration
phase:
Determining the maximum velocity or maximum
speed
The drive does not achieve maximum speed and
thus starts to brake too late, since it is trying to
catch up with the position reference.
By reducing the velocity to 90% of the maximum
velocity and increasing acceleration and the dece-
leration to 900% the drive can achieve the required
2.47 UU/ms.
Optimizing the PID controller

Danfoss VLT5000 SyncPos Specifications

General

Category	Controller
Frequency	50/60 Hz
Series	VLT5000
Control Method	Vector control
Communication	CANopen
Enclosure Rating	IP20
Storage Temperature	-25°C to 70°C
Altitude	Up to 1000m above sea level
Humidity	5% to 95% (non-condensing)
