Danfoss VLT5000 SyncPos User Manual

Programmable SyncPos motion controller
MG.10.J8.02 – VLT is a registered Danfoss trade mark
68

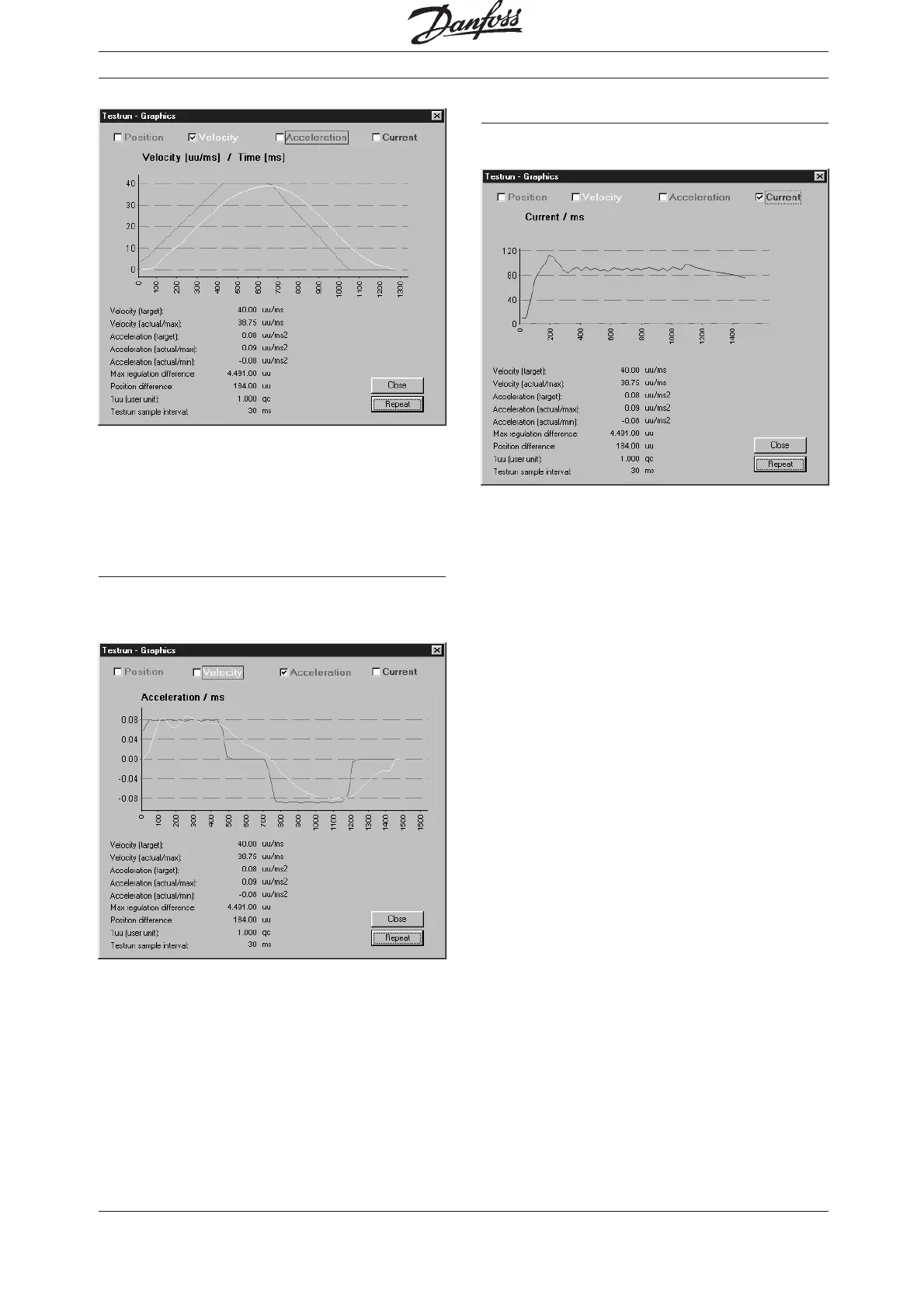

In special instances the trapeze-shaped velocity
curve can degenerate to a triangle shape. This effect
occurs when the positioning distance is too short to
achieve the maximum velocity at the desired
acceleration.
"TESTRUN" acceleration graph
The light green curve shows the actual path of accele-
ration, the dark curve the desired trapeze-shaped set
curve during acceleration and deceleration.
"TESTRUN" current graph
The blue line shows the actual motor current.
PC Software Interface

Danfoss VLT5000 SyncPos Specifications

General

Category	Controller
Frequency	50/60 Hz
Series	VLT5000
Control Method	Vector control
Communication	CANopen
Enclosure Rating	IP20
Storage Temperature	-25°C to 70°C
Altitude	Up to 1000m above sea level
Humidity	5% to 95% (non-condensing)
