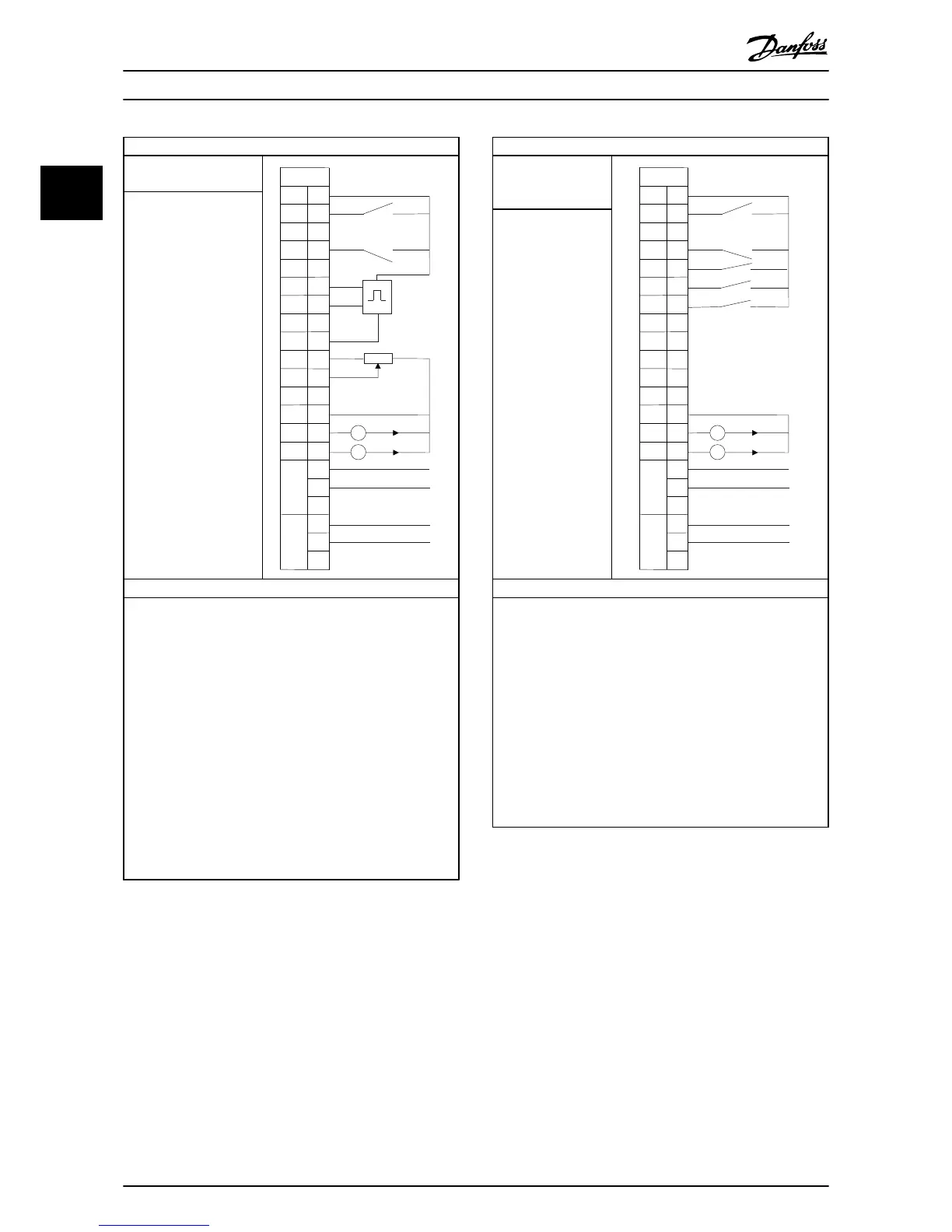

Description
For precise speed
applications with 24 V
encoder feedback
Parameter settings
1-00 (Configuration Mode): [1] Speed Close Loop
3-00 (Ref Range): [0] Min- Max
3-15 (Ref Source 1): [1] AI 53
3-16 (Ref Source 2): [11] Local Bus Ref
4-12 (Motor Low Limit): 20.0 Hz
4-14 (Motor High Limit): 50.0 Hz
5-10 (DI 18 Selection): [8] Start
5-12 (DI 27Selection): [2] Coast Inverse
5-14 (DI 32 Selection): [82] Encoder input B
5-15 (DI 23 Selection): [81] Encoder input A
5-40 (Relay 1 Selection): Running
5-40 (Relay 2 Selection): Alarm
6-10 (AI 53 Low): 0.07 V
6-11 (AI 53 High): 10 V
6-19 (AI 53 Mode): [1] Voltage Mode
7-00 (Speed PID Feedback Source): [1] 24 V encoder
Table 1.5
[5] Multi-speed
Application
Industrial washing
machines, conveyors
Description
For applications with
8 different speeds by
digital input. By using
another digital input,
16 speeds are
possible.
Parameter settings
1-00 (Configuration Mode): [0] Speed Open Loop
3-00 (Ref Range): [0] Min- Max
3-15 (Ref Source 1): [0] No Function
4-14 (Motor High Limit): 50.0 Hz
5-10 (DI 18 Selection): [8] Start
5-12 (DI 27 Selection): [2] Coast Inverse
5-13 (DI 29 Selection): [16] Preset ref bit 0
5-14 (DI 32 Selection): [17] Preset ref bit 1
5-15 (DI 23 Selection): [18] Preset ref bit 2
6-70 (Term 45 Mode): [0] 0-20 mA
6-71 (AO45): [100] Output freq
6-90 (Term 42 Mode): [0] 0-20 mA
6-91 (AO42): [103] Motor current
Table 1.6
NOTE
For further examples refer to 5 Wiring Examples.
Quick Start
VLT
®
AutomationDrive FC 360 Quick Guide
6 MG06A102 - VLT
®
is a registered Danfoss trademark
11
