Danfoss VLTAutomationDrive FC 360 User Manual

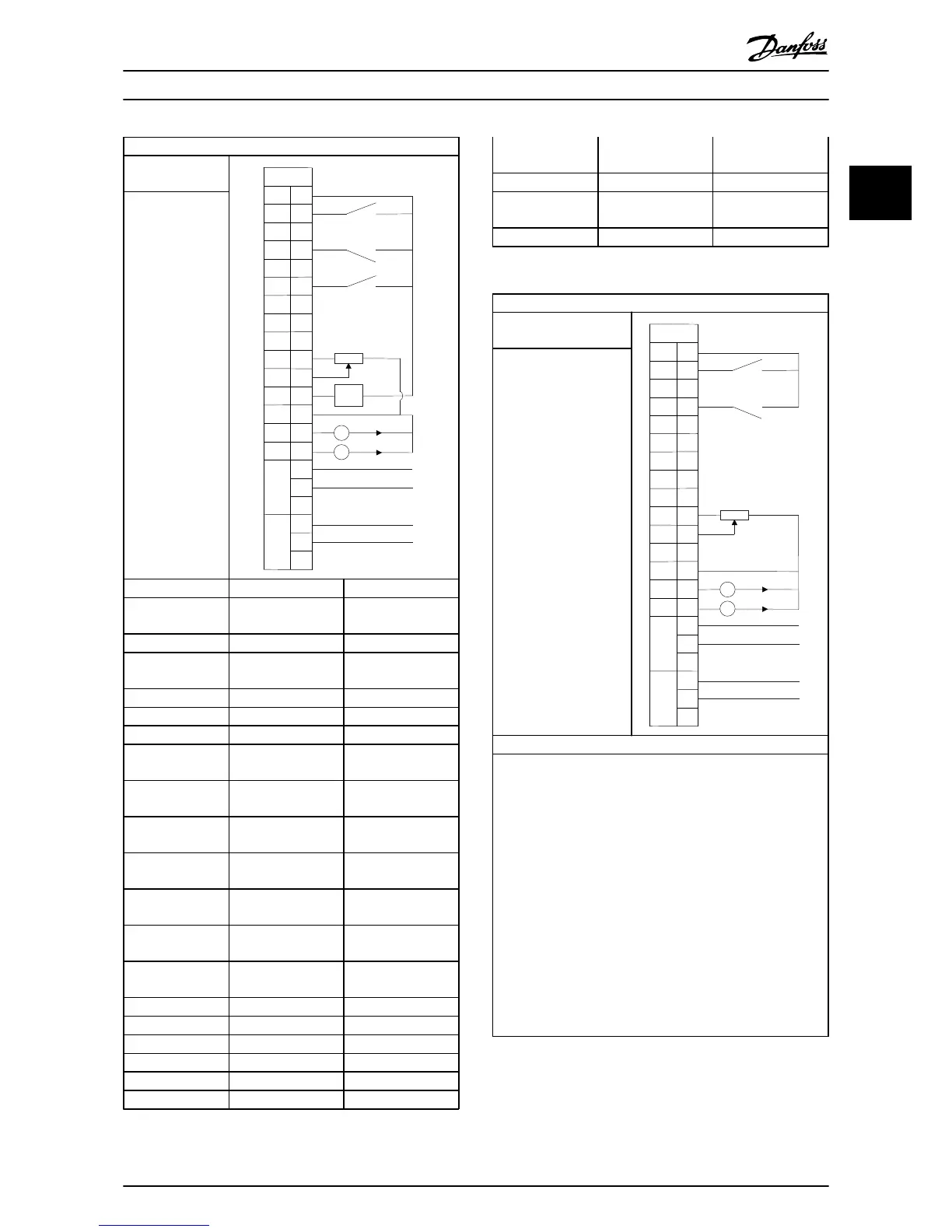

[2] Local/Remote
Application
Local/Remote
130BC431.10
+24V 12
DI1 18
DI2 19
DI3 27
DI4 29
DI5 32
DI6 33
DI7 31
COM 20
+10V 50
AI1
53
-
+
AI2
54
COM 55
AO1
45
AO2 42
1
2
3
4
5
6
R1
R2
FC 360
Start
Coast inverse
Setup select
4-20
mA
Description
For applications
where the speed
reference can be
switched between
local potentiometer
and remote current
signal
Parameter settings Setup 1 Setup 2
0-10 (Active Set-
up)
[9] Multi Set-up [9] Multi Set-up
0-12 (Link Set-up) [20] Linked [20] Linked
1-00 (Configuration
Mode)
[0] Speed Open Loop [0] Speed Open Loop
3-00 (Ref Range) [0] Min- Max [0] Min- Max
3-15 (Ref Source 1) [1] AI 53 [2] AI 54
3-16 (Ref Source 2)
4-12 (Motor Low
Limit)
25.0 Hz 25.0 Hz
4-14 (Motor High
Limit)
50.0 Hz 50.0 Hz
5-10 (DI 18
Selection)
[8] Start [8] Start
5-12 (DI 27
Selection)
[2] Coast Inverse [2] Coast Inverse
5-14 (DI 32
Selection)
[23] Set-up select [23] Set-up select
5-40 (Relay 1
Selection)
Running Running
5-40 (Relay 2
Selection)
Alarm Alarm
6-10 (AI 53 Low) 0.07 V
6-11 (AI 53 High) 10 V
6-19 (AI 53 Mode) [1] Voltage Mode
6-22 (AI 54 Low) 4.0 mA
6-23 (AI 54 High) 20.0 mA
6-29 (AI 54 Mode) [0] Current Mode
6-70 (Term 45
Mode)
[0] 0-20 mA [0] 0-20 mA
6-71 (AO45) [100] Output freq [100] Output freq
6-90 (Term 42
Mode)
[0] 0-20 mA [0] 0-20 mA
6-91 (AO42) [103] Motor current [103] Motor current
Table 1.3
[3] Speed Open Loop
Application
Conveyors, extruders
130BC432.10
+24V 12
DI1 18
DI2 19
DI3 27
DI4 29
DI5 32
DI6 33
DI7 31
COM 20
+10V 50
AI1
53
AI2
54
COM 55
AO1
45
AO2 42
1
2
3
4
5
6
R1
R2
FC 360
Start
Coast inverse
Description
For running at a stable
speed by a voltage
reference signal.
Parameter settings
1-00 (Configuration Mode): [0] Speed Open Loop
3-00 (Ref Range): [0] Min- Max
3-15 (Ref Source 1): [1] AI 53
4-12 (Motor Low Limit): 25.0 Hz
4-14 (Motor High Limit): 50.0 Hz
5-10 (DI 18 Selection): [8] Start
5-12 (DI 27 Selection): [2] Coast Inverse
5-40 (Relay 1 Selection): Running
5-40 (Relay 2 Selection): Alarm
6-10 (AI 53 Low): 0.07 V
6-11 (AI 53 High): 10 V
6-19 (AI 53 Mode): [1] Voltage Mode
6-70 (Term 45 Mode): [0] 0-20 mA
6-71 (AO45): [100] Output freq
6-90 (Term 42 Mode): [0] 0-20 mA
6-91 (AO42): [103] Motor current
Table 1.4
Quick Start
VLT
®
AutomationDrive FC 360 Quick Guide
MG06A102 - VLT
®
is a registered Danfoss trademark 5
1 1
