Dantherm HPP-i 8 - 3�3 Pool Water Circuit

15
1007332 ISSUE 1

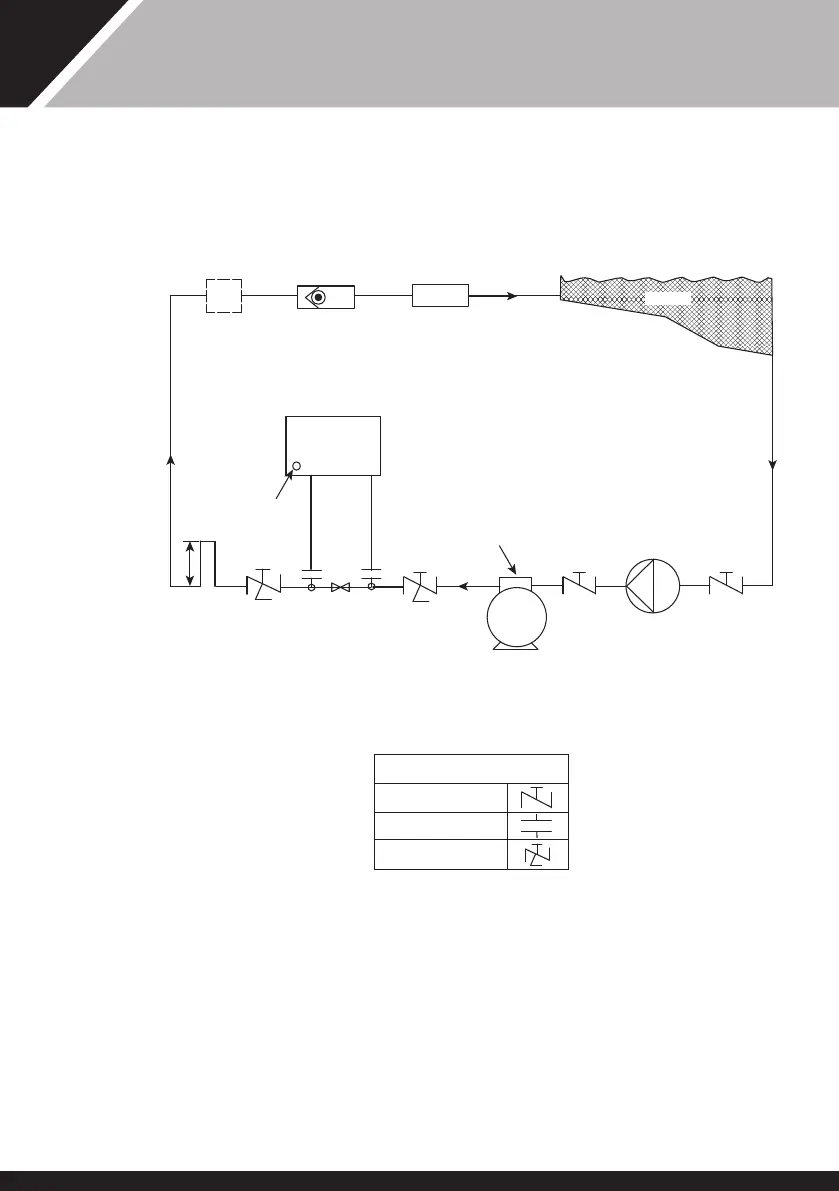

3�3 POOL WATER CIRCUIT
Anti return loop
to be incorporated,
minimum height
100mm above
heat pump
outlet port
(If sanitiser fitted)
Non return
valve
Sanitiser or
chemical dosing
device,
(If fitted)
Aux heater
(If fitted)
Filter
Pump
To waste
for
winterising
drain down
100mm
Condensate
water to
waste
Spare port
for winterising
flushing
connection
To waste
Heat pump
Pool
Bypass
valve
(adjusted to
achieve
recommended
flow)
KEY
Isolation valve
Breakable coupling
Three way valve
