Dantherm HPP-i 8 - 9�1 Dimensions

39
1007332 ISSUE 1

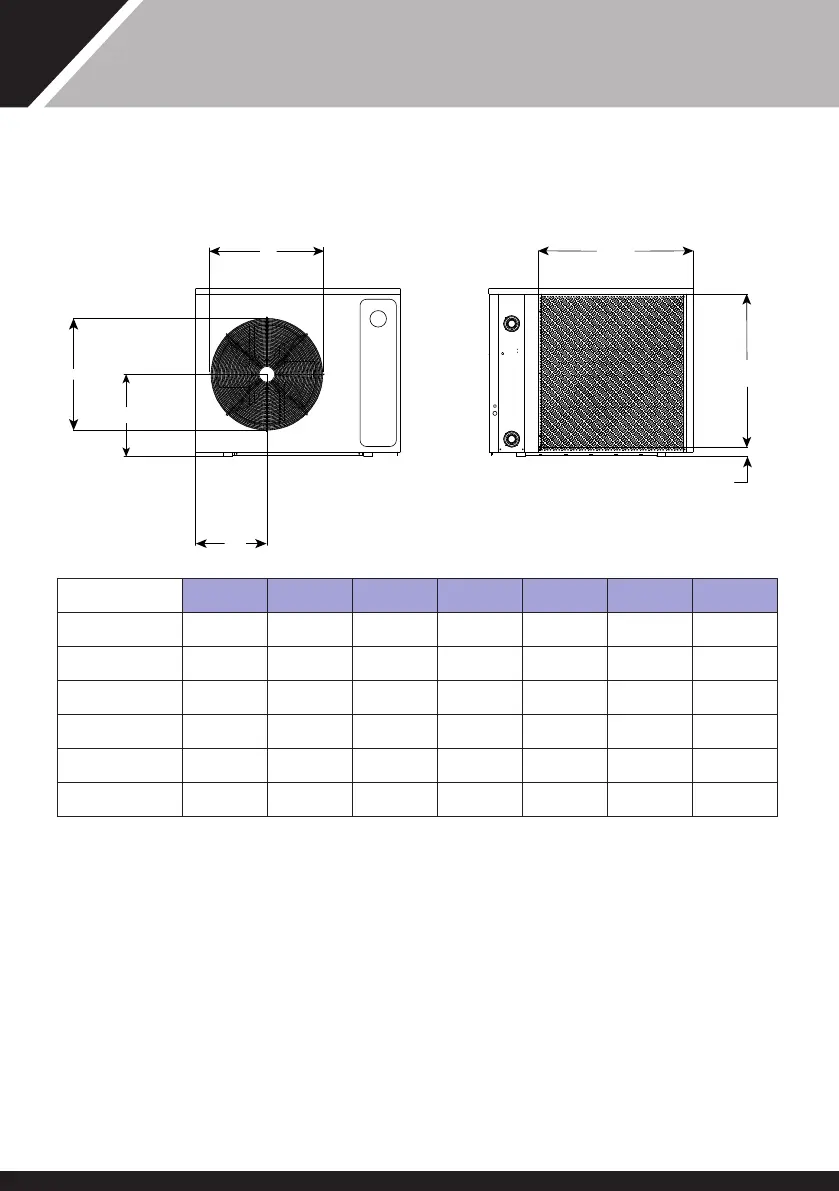

9�0 DIMENSIONS
E
B
C
D
A
H
G
F
J
Air inlet
Air inlet
Water
out
Water
in
9�1 DIMENSIONS
K L M N P Q R
HPP-i 8
478 465 285 288 533 565 50
HPP-i 12
478 465 285 288 630 565 50
HPP-i 16
478 465 349 315 675 666 50
HPP-i 18 (3 Ph)
587 540 370 349 731 667 50
HPP-i 24 (3 Ph)
645 640 462 405 799 861 50
HPP-i 30 (3 Ph)
645 630 462 400 876 866 50
P
Q
R
K
L
M
N
