Dantherm HPP-i 8 - 9�0 Dimensions

38
1007332 ISSUE 1
OWNER/INSTALLATION MANUAL

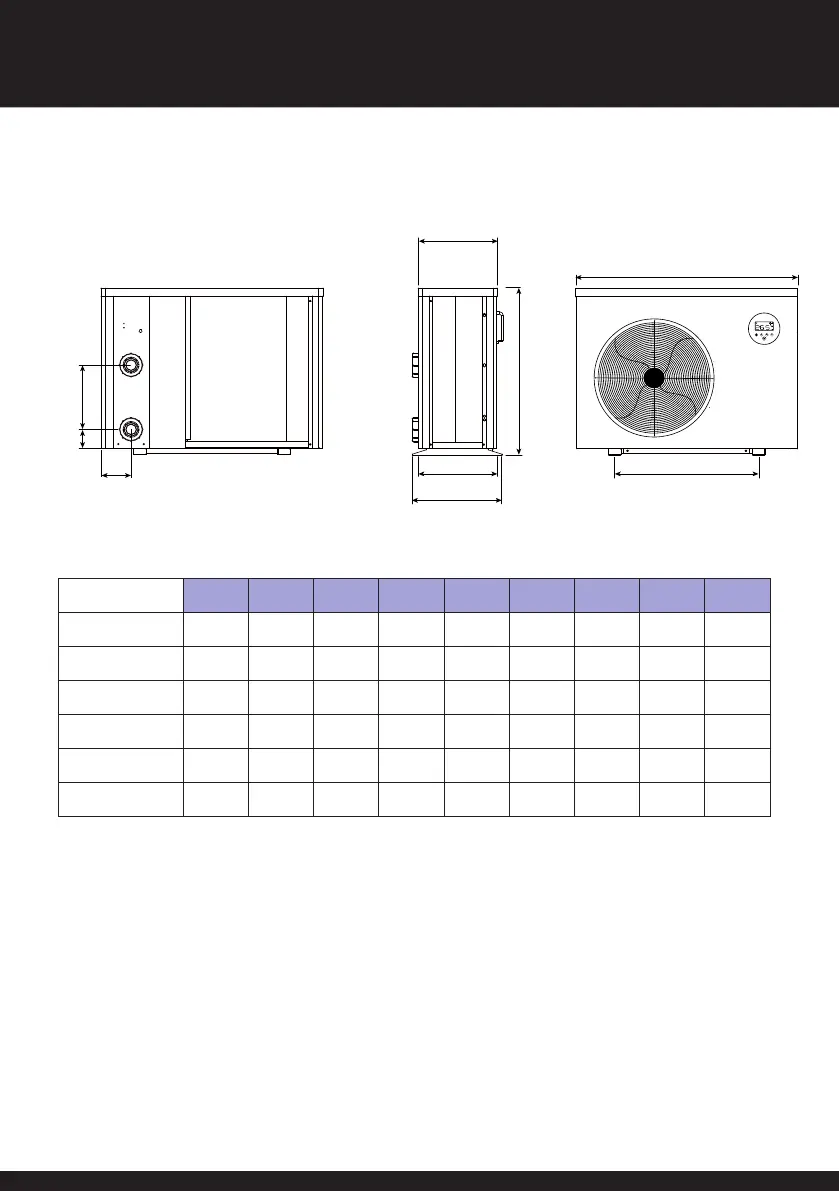

9�0 DIMENSIONS
E
B
C
D
A
H
G
F
J
Air inlet
Air inlet
Water
out
Water
in
A B C D E F G H J
HPP-i 8 334 560 318 359 864 250 74 648 116
HPP-i 12 334 560 318 359 864 290 74 648 116
HPP-i 16 334 590 318 359 954 390 74 748 116
HPP-i 18 (3 Ph) 404 590 388 429 954 460 74 755 107
HPP-i 24 (3 Ph) 404 720 388 429 1084 620 74 948 107
HPP-i 30 (3 Ph) 514 790 498 539 1154 650 74 948 128
