DAPAudio MP-100DBT User Manual

8
MP-100DBT
Product code: D1246
3. Description of the Device
The MP-100DBT is a media player. It can be installed in a standard 19-inch rack. It supports multiple
(wireless) media sources, such as: DAB+, FM radio, AUX in/out and Bluetooth. The device can be
operated manually or with the supplied IR remote control.

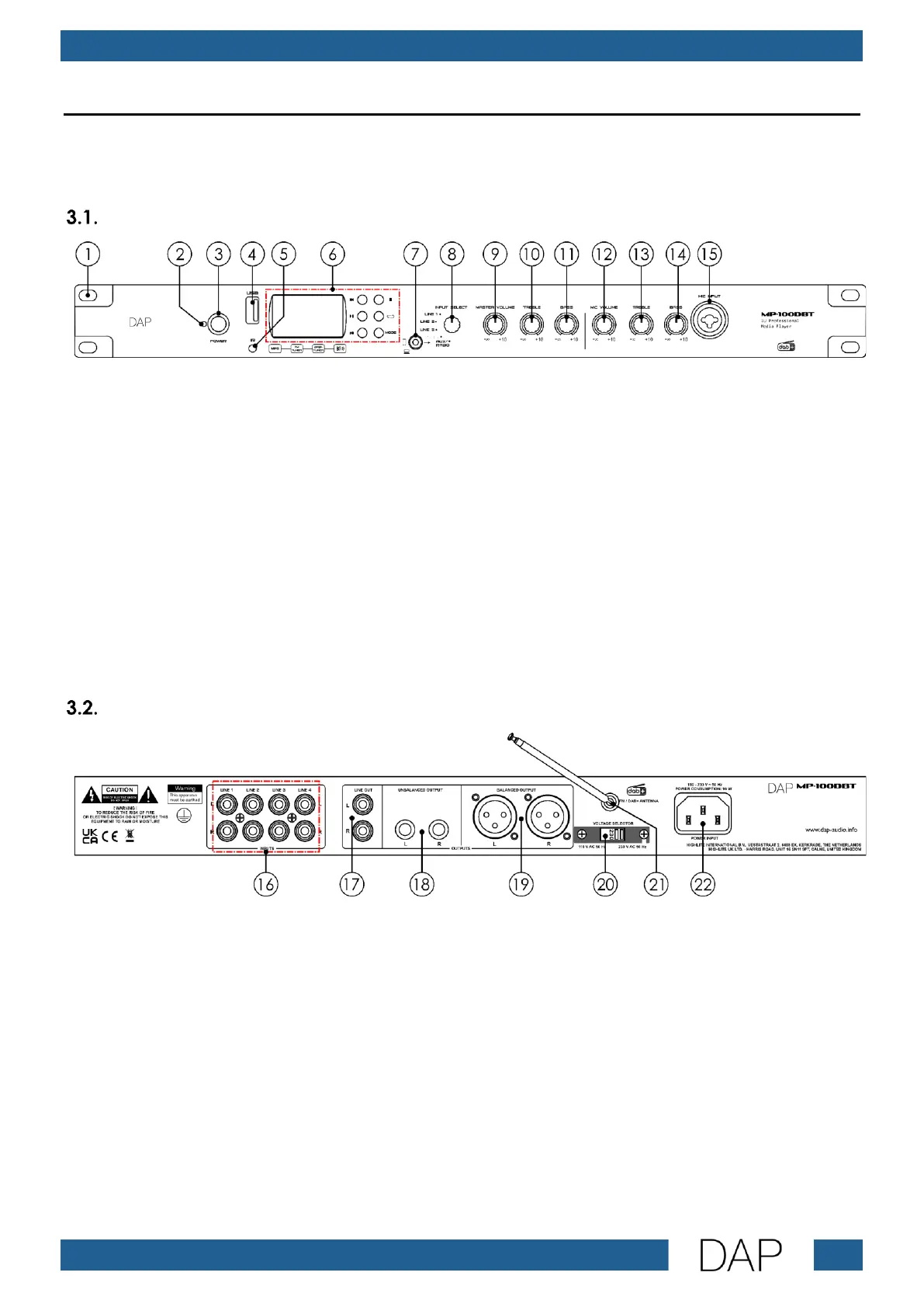

Front View
Fig. 02
01) 4 x mounting openings (for installation in a 19-inch rack)
02) Power LED indicator (Blue)
03) Power button
04) USB-A connector IN
05) Infra-red port
06) OLED display and control buttons
07) Balanced 3,5 mm TRS jack connector AUX IN
08) Input selector
09) Master volume control
10) Treble level control
11) Bass level control
12) Microphone level control
13) Microphone treble level control
14) Microphone bass level control
15) XLR/6,3 mm jack combo microphone connector IN
Back View
Fig. 03
16) (Line 1–4) RCA analog line-level connectors IN (Left/Right)
17) RCA analog line-level connectors OUT (Left/Right)
18) Unbalanced 6,3 mm TS jack line-level connectors OUT (Left/Right)
19) Balanced 3-pin XLR line-level connectors OUT (Left/Right)
20) Input voltage selector (set to 230 V AC 50 Hz)
21) DAB+/FM antenna connector IN
22) IEC power connector IN
