DataCard SD360 User Manual

50 Card Printer Driver Management Tasks

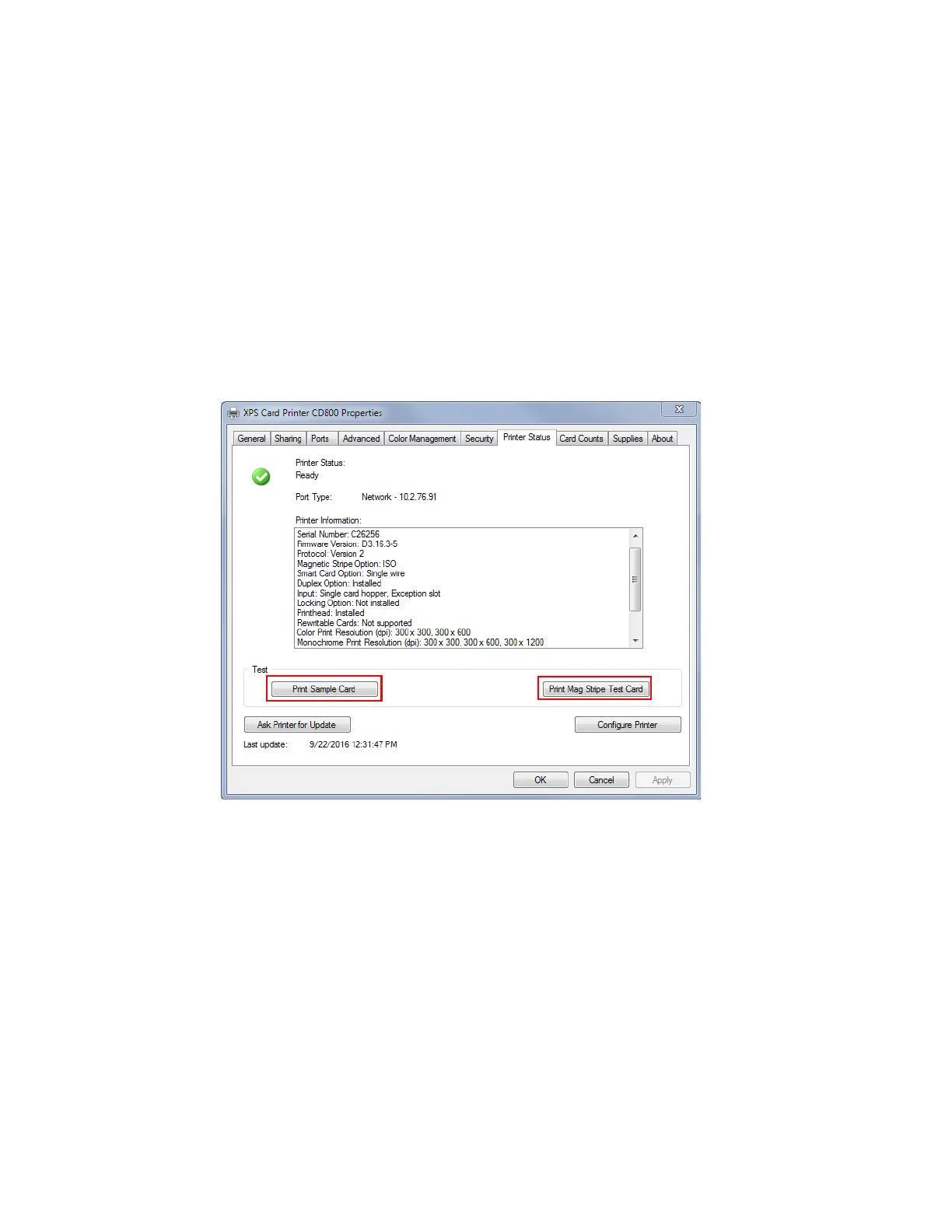

To print a sample card:
1. Open the Printer Properties window.
2. Select the Printer Status tab. If the printer status is something other than Ready or Busy,
determine why the printer is unavailable.
3. Do one of the following:
 Click Print Sample Card.
OR
 Click Print Mag Stripe Test Card.
The printer picks the card and prints it. If the card does not print, refer to the “Troubleshooting”
section of the printer’s User’s Guide to determine the cause of the problem and try to print the
sample card again.

DataCard SD360 Specifications

General

Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 x 300 DPI
Print speed (color)	200 card/h
Print speed (monochrome)	830 card/h
Duplex print speed (color)	155 card/h
Display	LCD
Lamination	No
Certification	cULus, FCC, I.C, CE, Ctick, VCCI, RoHS, WEEE, ENERGY STAR, CCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Cable lock slot type	Kensington
Total input capacity	100 sheets
Compatible operating systems	Windows Server 2003/Server 2008
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB & Ethernet

Weight and Dimensions

Weight	5400 g
Dimensions (WxDxH)	175 x 539 x 224 mm
