DM4270 – Installation Guide
204.4331.03 - October/2019
installation process. Contact Technical Support for more information on using this
interface.
3.8 INTERFACE MANAGEMENT ETHERNET (MGMT)
The DM4270 has a Gigabit Ethernet interface used for local or remote management of
the switch. For details on how to use it, see the chapter Logging in for First Time. This
interface has two status LEDs whose behavior is described in TABLE 5.

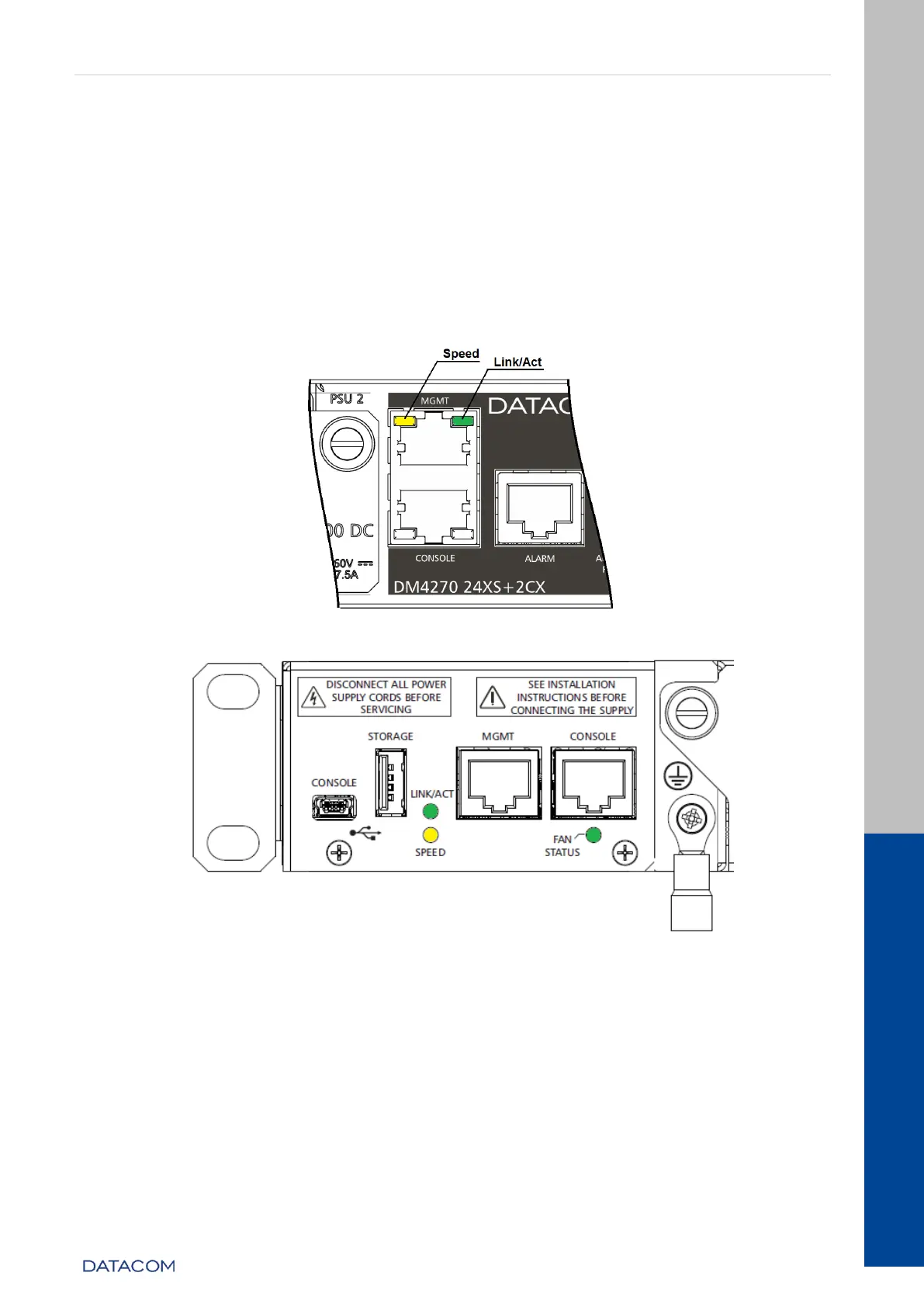

Figure 7 - MGMT LEDs (DM4270 24XS+2CX)
Figure 8 – MGMT Port (DM4270 48XS+6CX)
