Hardware DESCRIPTION
204.4331.03 - October/2019
10
3 HARDWARE DESCRIPTION
This chapter describes the DM4270 line hardware features.
3.1 PRODUCT OVERVIEW
The DM4270 line has two product versions as illustrated below. Both versions are
included in this installation guide.

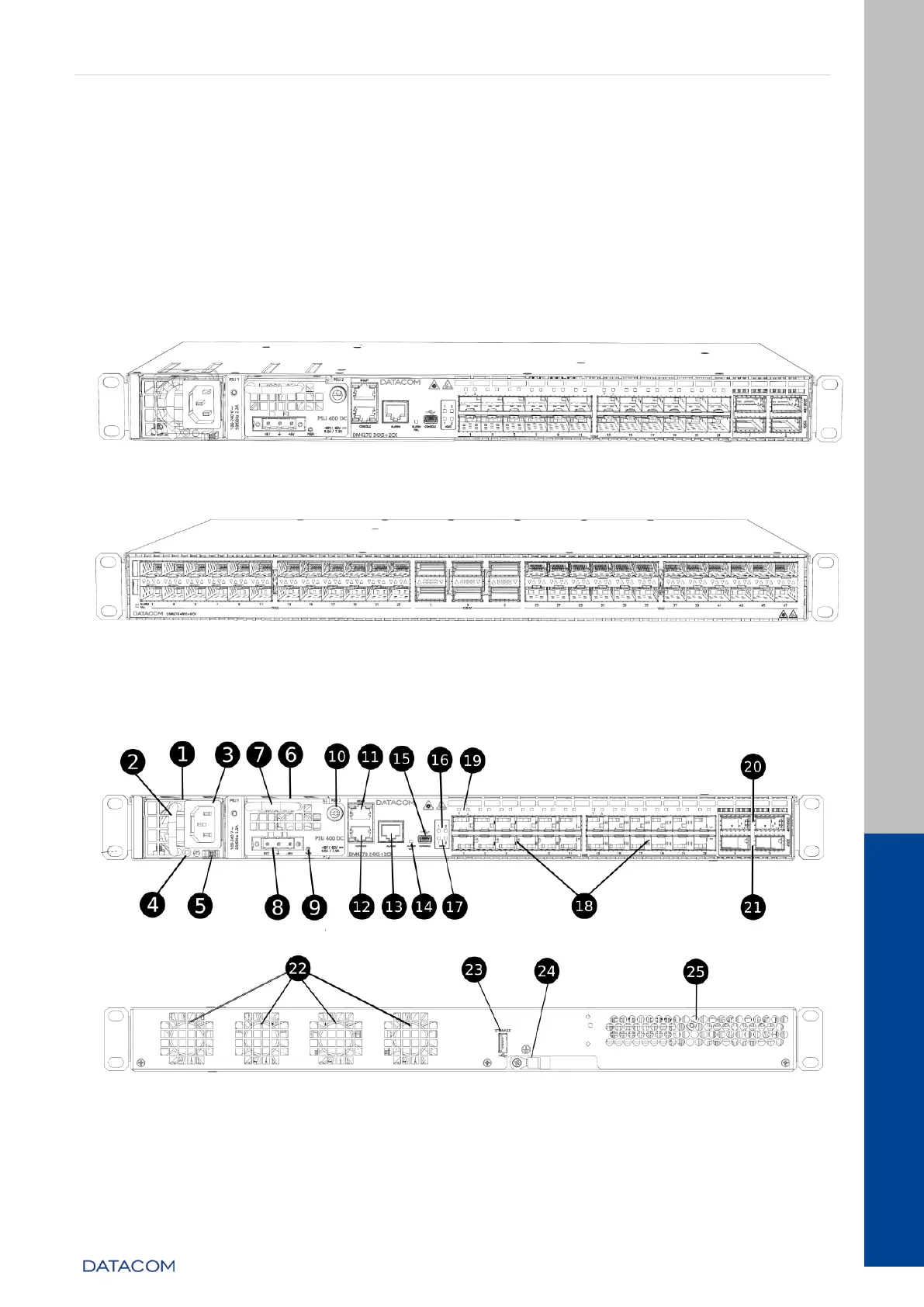

Figure 1 - DM4270 24XS+2CX
Figure 2 - DM4270 48XS+6CX
3.2 MODEL DM4270 24XS+2CX
Figure 3 - DM4270 24CX+2CX Views
