DM4270 – Installation Guide
Hardware DESCRIPTION
204.4331.03 - October/2019
12
3.3 MODEL DM4270 48XS+6CX

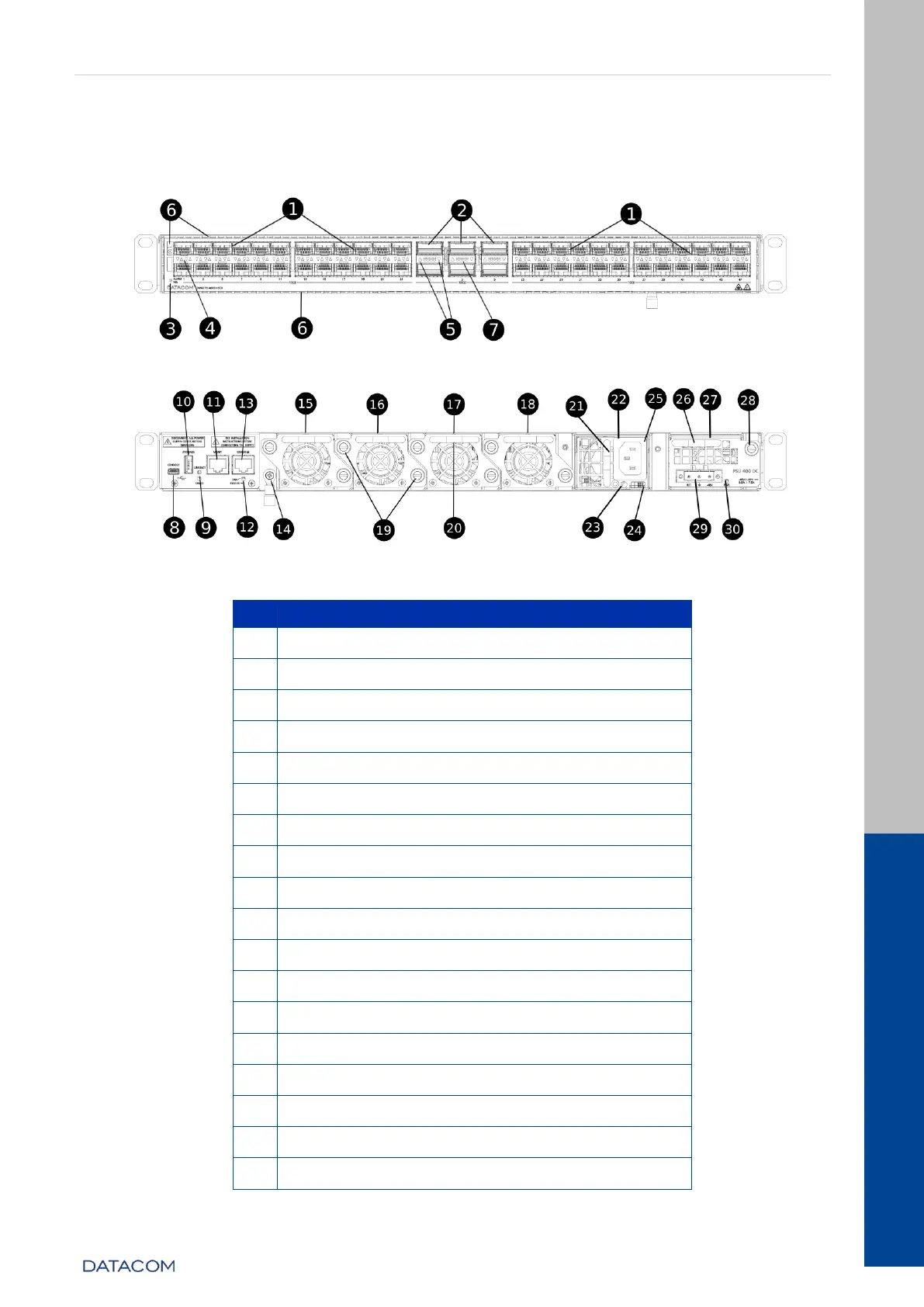

Figure 4 - DM4270 48XS+6CX Views
Description
1
10GE Ethernet ports
2
40/100GE Ethernet ports
3
System ALARM/FAIL LED
4
10GE Ethernet port LEDs
5
40/100GE Ethernet port LEDs
6
Equipment cooling inlets
7
40/100GE port cooling inlets
8
USB console port
9
Port Ethernet management LEDs
10
USB Host port
11
Ethernet Management Port
12
FAN status LEDs
13
RS-232 console port
14
Auxiliary safety grounding
15
FAN 4 SLOT
16
FAN 3 SLOT
17
FAN 2 SLOT
18
FAN 1 SLOT
