Due to the size and weight of the equipment, the DM4270 48XS+6CX has an extension
rail to fix the equipment in the rear rack panel. For extension rail Installation, follow the
below steps:
Step 1
 Locate the rail guide pin on the left side of the equipment:

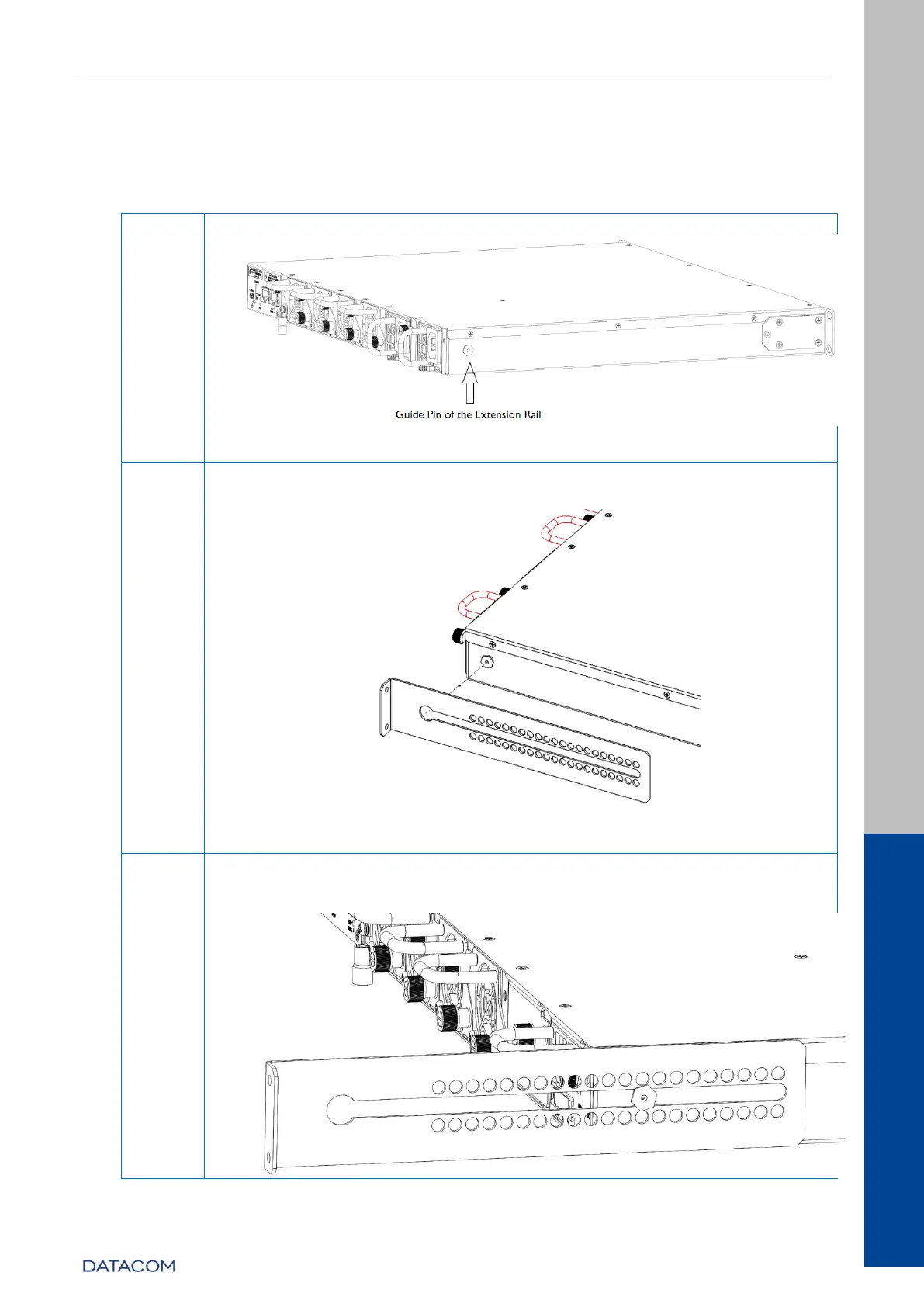

Figure 23 – Guide Pin of the Extension Rail
Step 2
 Position the Extension Rail over the guide pin as shown in the figure
below:
Figure 24 – Positioning the Extension Rail
Step 3
 Slide the Extension Rail to the left positioning it according to the
size of the rack
