The program mode is used to program timers, operational limits and the configuration of the unit.
To enter the program mode, press together ◄MENU and MENU►buttons for 1 second.
The program mode is only allowed if the PROGRAM LOCK input is left open. If this input is tied to
GROUND, the program value modification will be disabled to prevent unauthorized intervention. It is
advised to keep the PROGRAM LOCK input tied to GROUND.

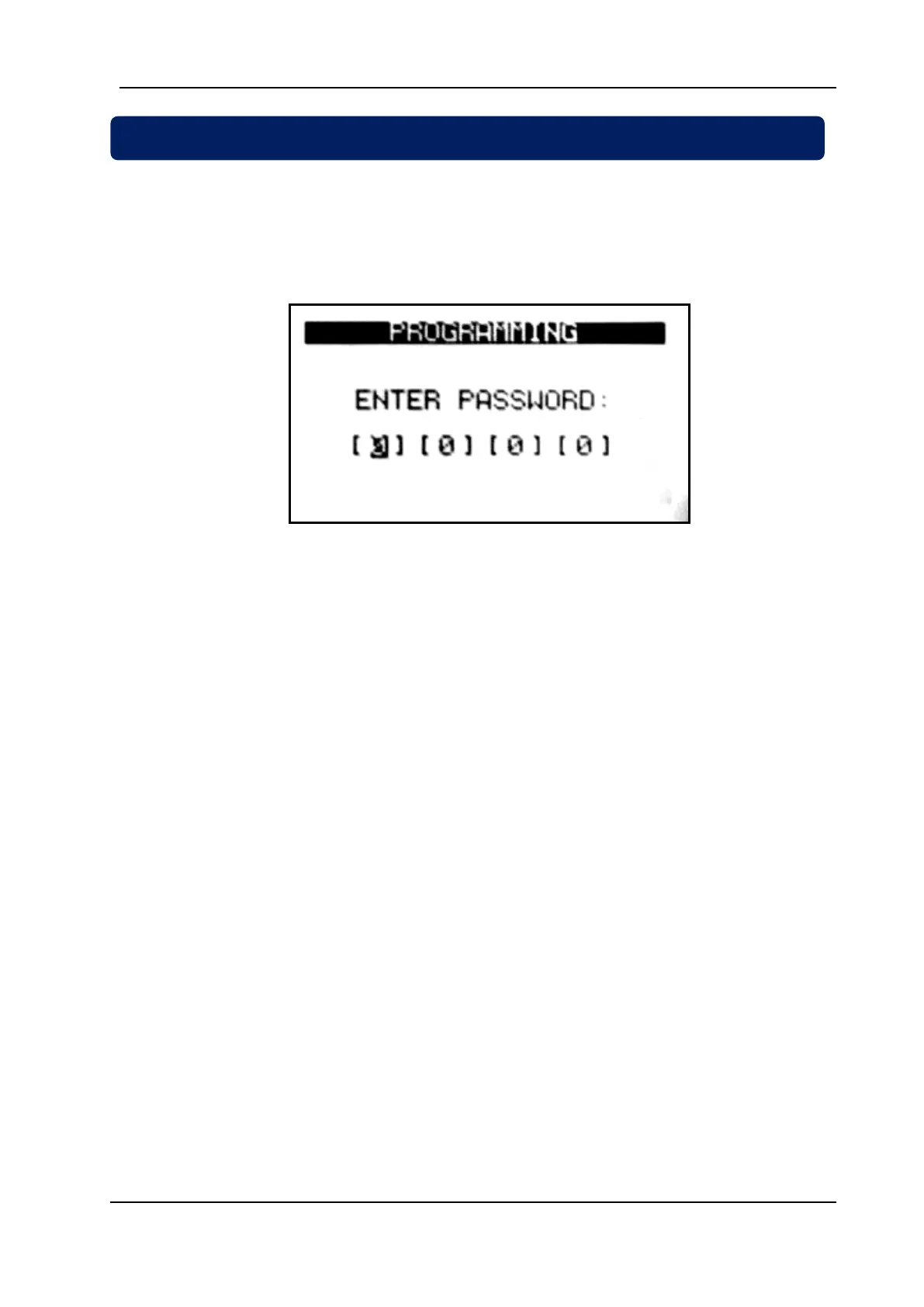

When the program mode is entered, below password entry screen will be displayed.
A 4 digit password must be entered using ▼, ▲ , MENU►and ◄MENU buttons.
The unit stores 3 different passwords. Each password allows access to a different level of
program parameters.
The password level-1 allows access to field adjusted parameters. The level-2 allows access to
factory setup. The password level-3 is reserved to Datakom and allows access to calibration
parameters.
The password level-1 is factory set to ‘1234’ and the password level-2 is factory set to ‘9876’.
Passwords can only be modified through Rainbow program.
The program mode will not affect the operation of the unit. Thus programs may be modified
anytime, even while the genset is running.
The program mode is driven with a two level menu system. The top menu consists on program
groups and each group consists of various program parameters.
When program mode is entered, a list of available groups will be displayed. Navigation
between different groups are made with ▼and ▲buttons. Selected group is shown in reverse video
(blue on white). In order to enter inside a group, please press MENU►button. In order to exit from the
group to the main list please press ◄MENU button.
Navigation inside a group is made also with ▼and ▲buttons. A list of available parameters
will be displayed. Selected parameter is shown in reverse video (blue on white). In order
display/change the value of this parameter, please press MENU►button. Parameter value may be
increased and decreased with ▼and ▲buttons. If these keys are hold pressed, the program value will
be increased/decreased by steps of 10. When a program parameter is modified, it is automatically
saved in memory. If MENU►button is pressed, next parameter will be displayed. If ◄MENU button is
pressed, then the list of parameters in this group will be displayed.
Program parameters are kept in a non-volatile memory and are not affected from power
failures.
To exit the program mode press one of the mode selection keys. If no button is pressed during 1
minute the program mode will be cancelled automatically.
