The unit is able to display information in 3 or 4 languages, following versions. Language selection
is made through program parameter CONTROLLER CONFIGURATION > LANGUAGE SELECTION.
Below selections are available in the standard version:
0: English language
1: Turkish language
2: Chinese language
3: ask selection at power-up

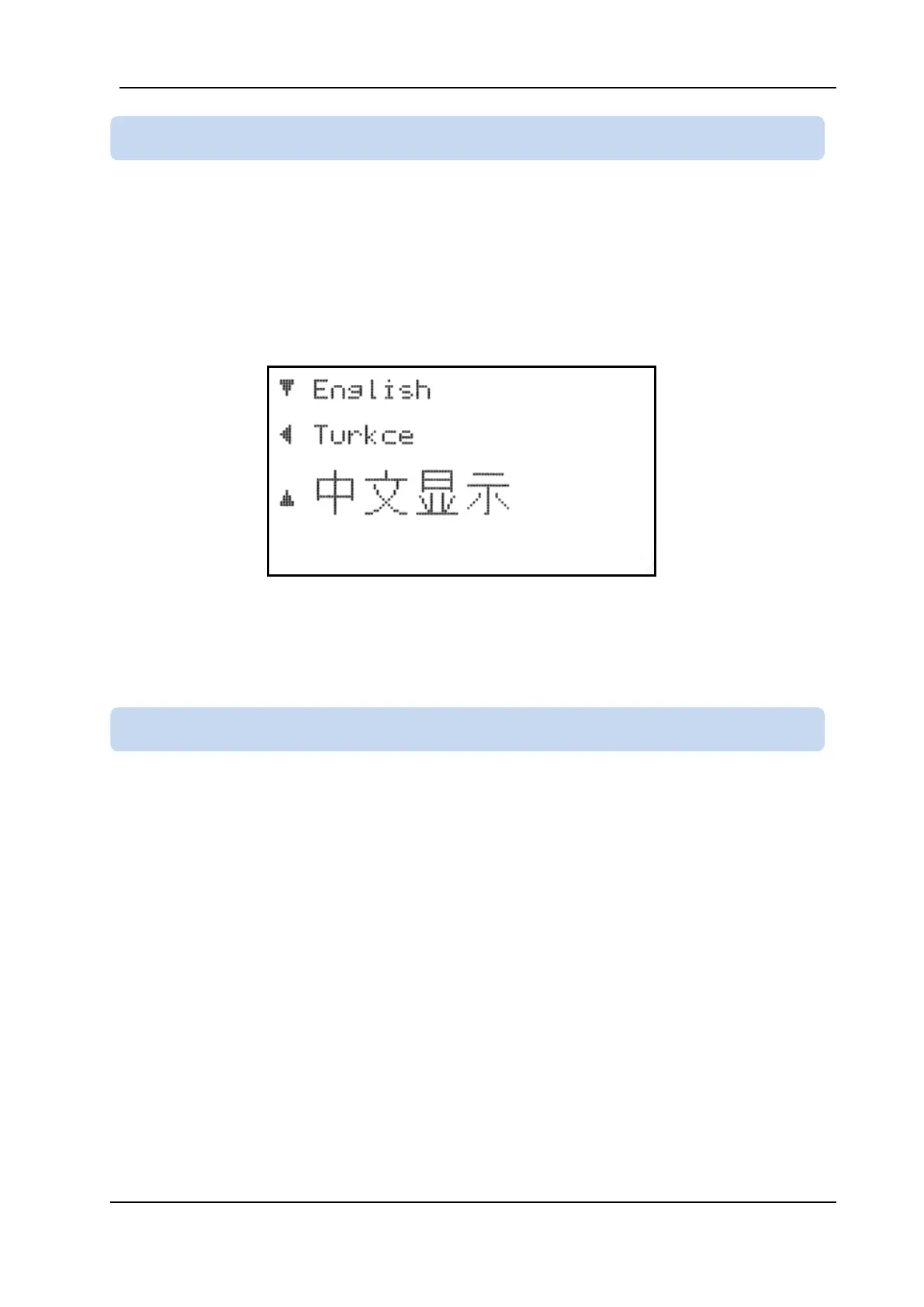

If language is set to 3, below screen will come at power on:
Left / Up / Down arrow pushbuttons will select the screen language. The language will be asked
everytime power is turned on.
With selections of 0,1,2 this screen will not appear and the selected language is enabled.
The unit has a graphical 128x64 pixel LCD display. It shows:
-Measured parameters,
-The company logo,
-The alarm list
-Software version and date-time information,
-Statistical counters,
-Event records,
-Program parameters.
Navigation between different screens s made with the ◄MENU and MENU► buttons. Each
depression of the MENU► button switches the display to the next screen. Each depression of the
◄MENU button switches the display to the previous screen.
During operation, the unit will switch automatically between different screens, displaying
always the most important parameters for the current operating status.
If an alarm or warning occurs during operation, in other then programming mode, the display
will automatically switch to ALARM LIST position. The ◄MENU or MENU► buttons will not function.
To enable display navigation and mute the internal buzzer, press ALARM MUTE button first. If there is
more than one alarm, the next alarm is displayed by pressing the ▼ button. Thus all existing alarms
can be scanned. ‘END OF ALARM LIST’ will be displayed when there is no more alarm to display.
The display has a backlight illumination feature. The backlight turns on with the depression
of any button or when the genset runs. It turns off after 4 hours to allow power economy.
