DS5100 REFERENCE MANUAL
DS5100 OM Models
1. To mount the DS5100 OM, use the mounting bracket to obtain the most suitable position
for the reader as shown in the figures below.

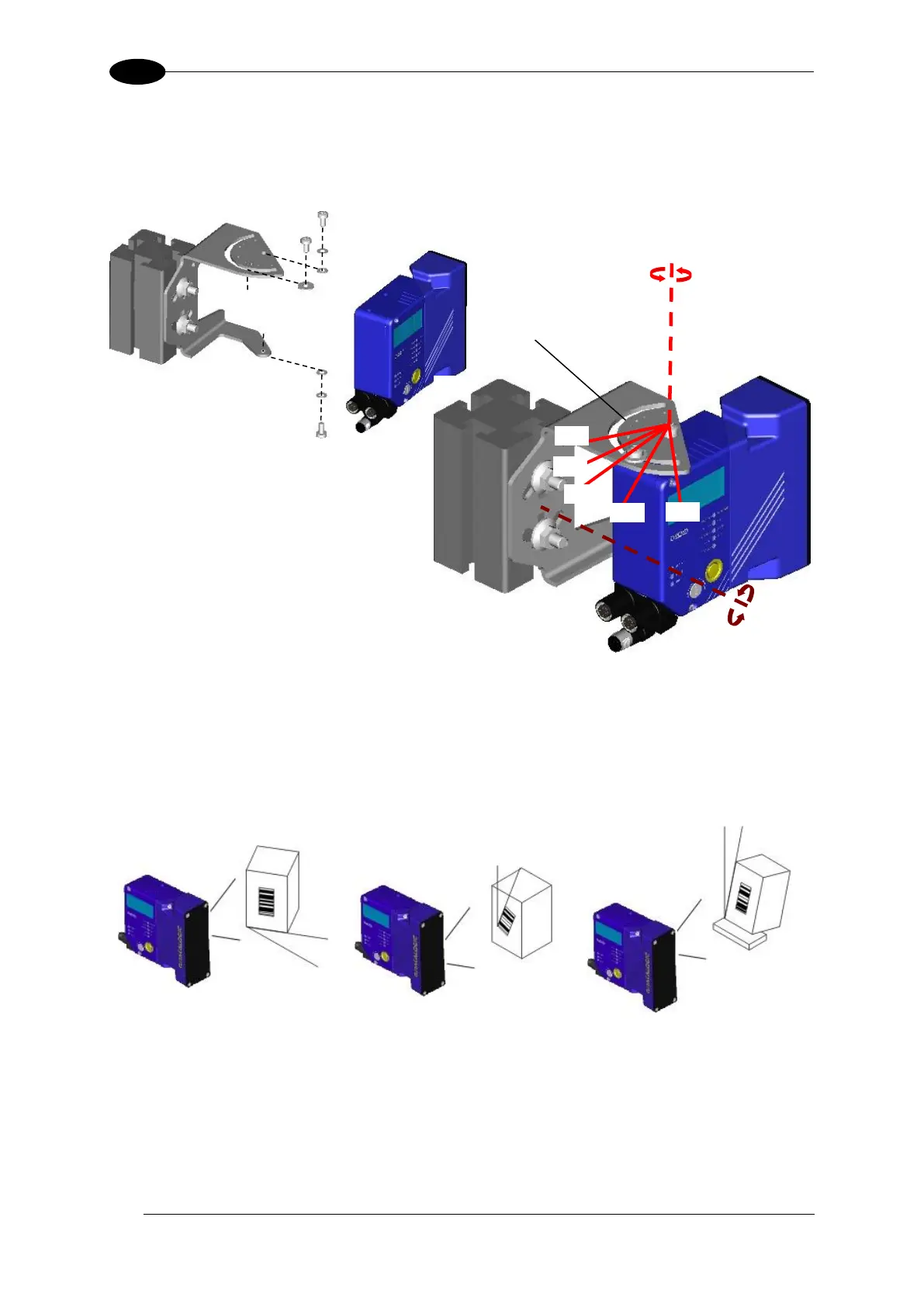

Figure 5 - Positioning with Mounting Bracket
2. When mounting the DS5100 OM take into consideration these three ideal label position
angles: Skew 15° to 30°, Tilt 0° and Pitch 0°. The Skew angle refers to the most inclined
or external raster line, so that all other raster lines assure more than 15° Skew.
Assure at least 15° Minimize Minimize
Figure 6 –Skew, Tilt and Pitch Angles
3. Refer to the Reading Diagrams in par. 6.4 to decide the distance your scanner should be
positioned at.
