Datalogic DX8200A

DX8200A QUICK GUIDE
9

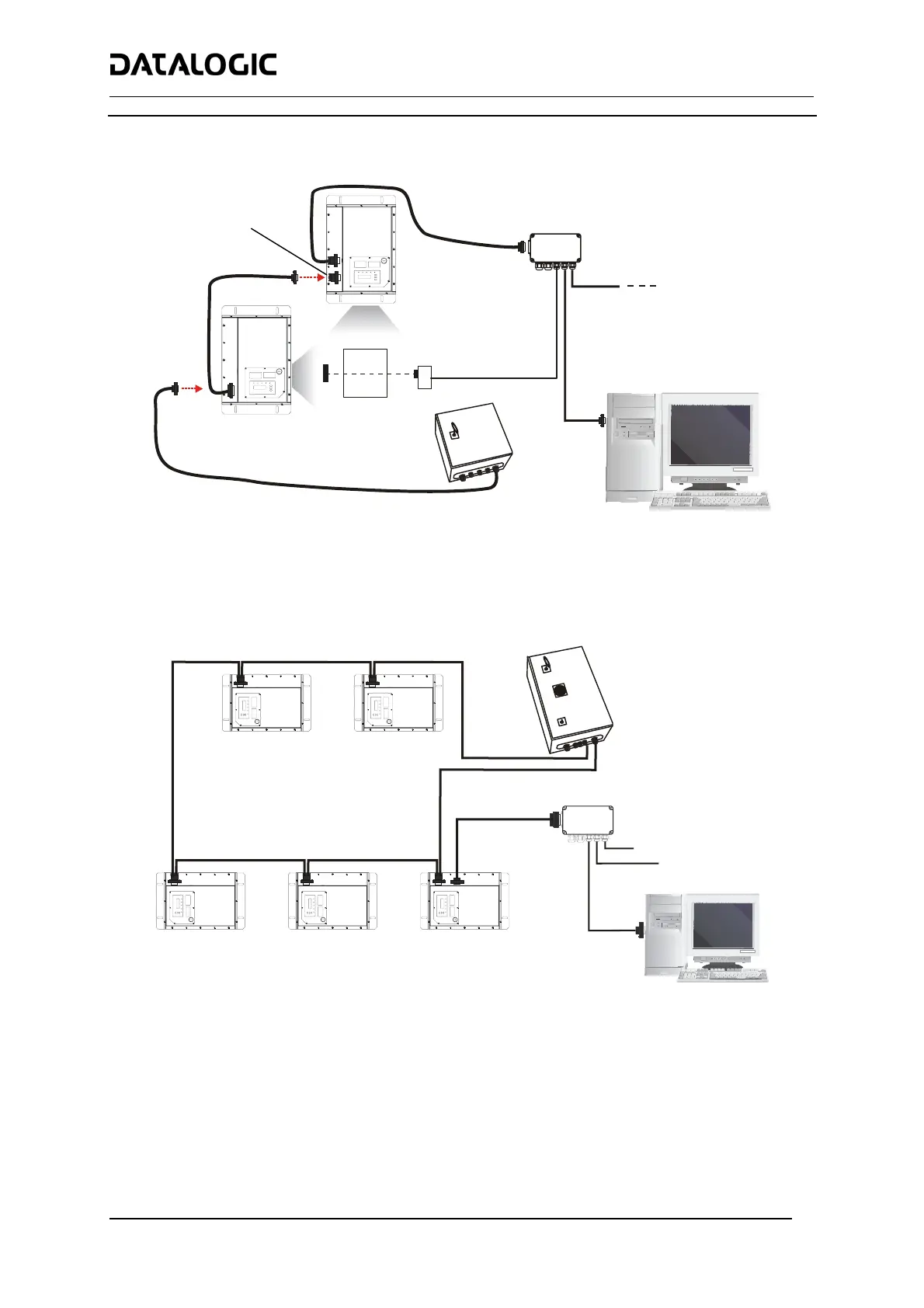

Local Lonworks Networks
* P.S. (Presence Sensor) connected to External Trigger/PS input.
** C-BOX 100 modified to accept scanner power
Small Synchronized Network with 2 Readers
* P.S. (Presence Sensor) connected to External Trigger/PS input.
** C-BOX 100 modified to accept scanner power
*** Encoder connected to IN2/ENC input.
Small Synchronized Network with more than 2 Readers and Single Power Unit
PWR-120
Local Host
C-BOX 100**
Maste
r
Slave 1
CAB601X
CAB810X
P.S.*
BTK-8102
CAB830X
C-BOX 100**
Local Host
Maste
r
Slave 1 Slave 2
Slave 3
PWR-240
P.S.*
CAB810X
CAB601X
CAB810X
CAB810X
CAB810X
Slave 4
CAB860X
CAB830X
Encoder***
