Installation: Model 2300HS
Product Reference Guide 21

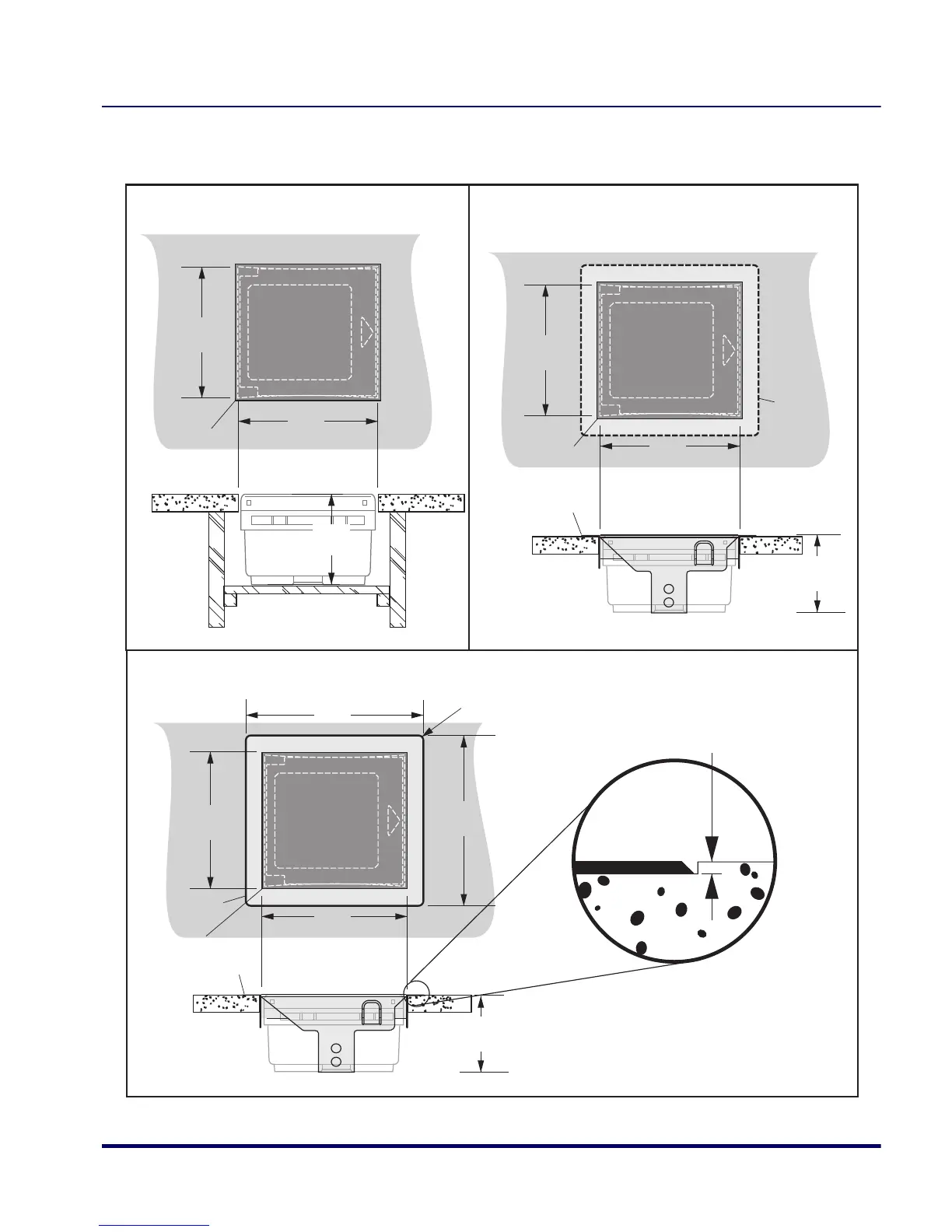

Figure 2-3. Countertop Modification Options
6.07"
(154.2mm)
6.07"
(154.2mm)
3.42"
(86.9mm)
Shelf Depth
a. Shelf installation b. Adapter w/flange above counter
c. Adapter w/flange recessed to be flush with counter
6.26"
(159mm)
3.47"
(88.1mm)
Rim rests on top of counter
6.26"
(159mm)
Rim is flush with counter
Cut hole
6.26"
(159mm)
3.52"
(89.4mm)
6.26"
(159mm)
7.91"
(201mm)
Routing is 0.050" (1.27mm) deep
Radius 0.21" (5.3mm) x4
Cut hole
Rim of
adapter
Cut hole
Routed ledge
for rim
7.40"
(188mm)

Datalogic Magellan 2200VS Specifications

General

Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional.
Standard interfaces	USB, RS-232
Dimensions (WxDxH)	152 x 152 x 97 mm
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
