Datalogic Magellan 2300HS Quick Reference Guide

4 Magellan
®
2300HS/2300HSΩ
Green LED Indicator

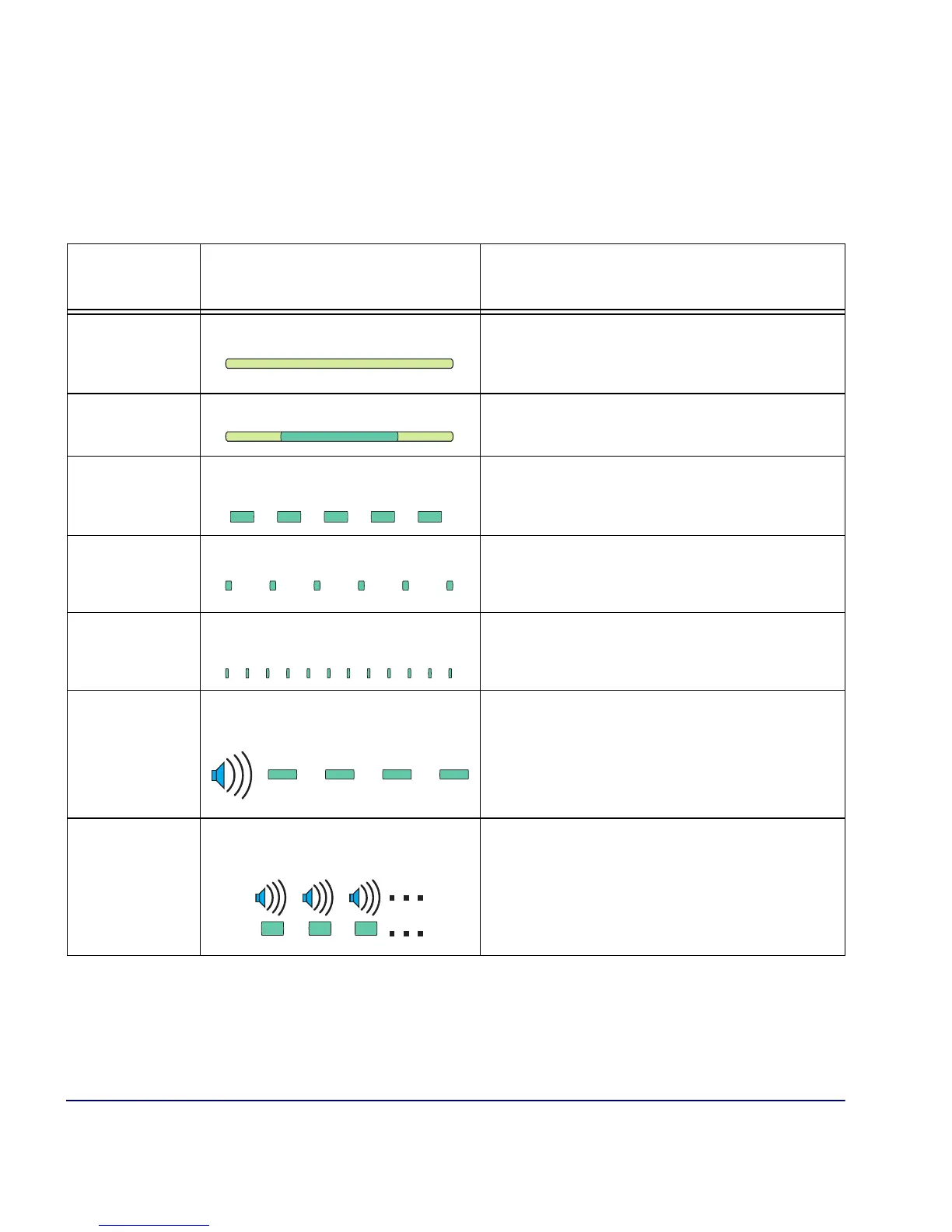

The green LED (Figure 2d) indicates scanner status as shown in the table below.
Table 2. Green LED Indications
LED
INDICATION
DURATION COMMENT
Scanner Active
a
(Normal Mode)
Scanner (Green) LED on steady and dim
The scanner is ready for operation. Scanning is immedi-
ately available.
Good Read Indi-
cation
a
Scanner (Green) LED - bright flash
Indicates a bar code has been read and decoded.
Program Mode
Indication
Scanner (Green) LED - Continuous flash-
ing
Indicates the scanner is in Label Programming Mode.
Cycle power to exit Programming Mode.
Sleep Mode Indi-
cation
Scanner (Green) LED flashes slowly
The scanner motor and/or laser have automatically
switched off and the unit has entered Sleep Mode due
to extended inactivity.
Host Disabled
Scanner (Green) LED 1-second off, 1/10-
second on
Host has disabled scanning.
Field Replace-
able Unit (FRU)
Warning (Error
Mode)
Audible low tone 1 second. LED flashes
continuously.
Serves notice that a fatal FRU failure has been
detected. Call systems support for service.
FRU Indication
Scanner (Green) LED flashes a coded
sequence in concert with the speaker.
Occurs ONLY upon Volume/Tone button push following
a FRU warning. Enables service technicians to identify
FRU failures.
a. Certain functions of the LED are selectable to be enabled or disabled. Your scanner may not be pro-
grammed to display all indications.

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
