Datalogic Magellan 3300HSi Quick Reference Guide

2 Magellan
TM
3300HSi
Installation
Connect the scanner to the host (terminal) using the interface (I/
F) cable as shown in Figure 2. A cable from an older existing instal-
lation can be re-used if it uses Power Off the Terminal (POT),
unless it is a USB POT cable. If external power is used/needed,
plug the AC Adapter into the AC wall outlet, then connect it to
the I/F cable as shown in ‘b’ and ‘c’ of the illustration.
Scan some known-good bar code samples to verify correct opera-
tion. The scanner should beep and/or flash its good read LED
1
and send the bar code data to the host or terminal. If not, use the
Troubleshooting sec-
tion of this guide to
identify any prob-
lems.
Remove the Top
Cover and use the lift
handles provided (see
Figure 1) whenever
lowering or lifting
the scanner from the
counter.
Scanner installation
is complete.

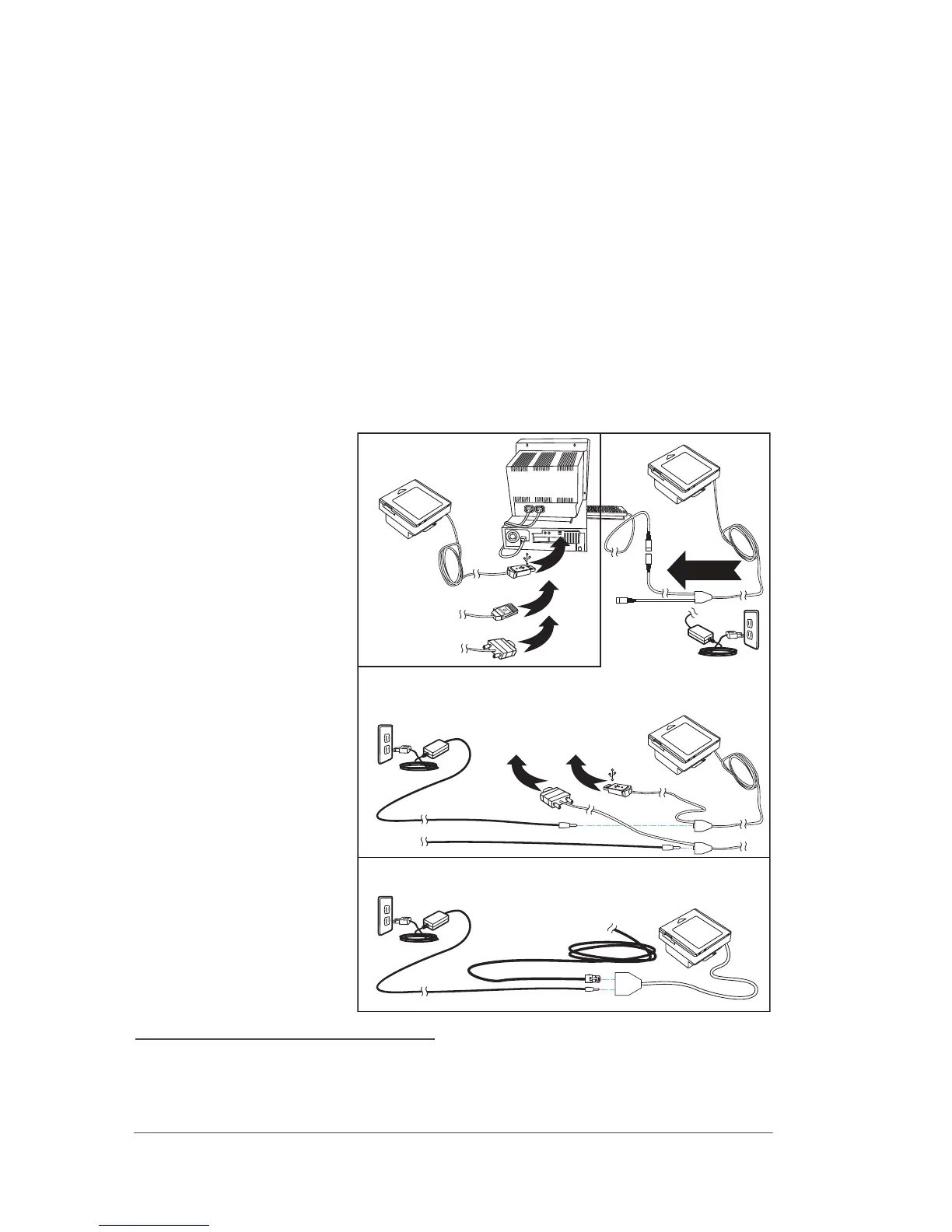

Figure 2.
Connections
1. Be aware that beeper and LED behavior may have previously been configured
as “disabled” by another user.
U
S
B
U
S
B
R
S
-
2
3
2
I
B
M
or...
or...
Power Off
the Terminal
(POT)
Terminal (PC)
To Terminal (PC)
To Terminal (PC)
Keyboard Wedge, RS-232 and USB Cables
Powered by AC Adapter
Other Non-POT Cables
Powered by AC Adapter
via short adapter cable
R
S
-
2
3
2
a
b
c
Keyboard
Wedge

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
