Datalogic Magellan 3300HSi Quick Reference Guide

Quick Reference Guide 3
Power Supply
Models require
1
either a Listed class II or class III with a Limited
Power Source (LPS). For the safety certification to be valid, class
III input power sources must be IEC/EN60950-1 (EN 60335-
series, EN 60065 or relevant) approved.
Input: 100 - 240 VAC Output: 12 VDC
Max. Current: 1.5 A Max. Power: 18 W
How to Scan
The scanner is mounted flush with the counter to allow items to
be slid or pushed over its top in the direction of the arrow as
shown in Figure 3. Face the bar code toward the scanner or direc-
tion of scan to optimize the scan rate.

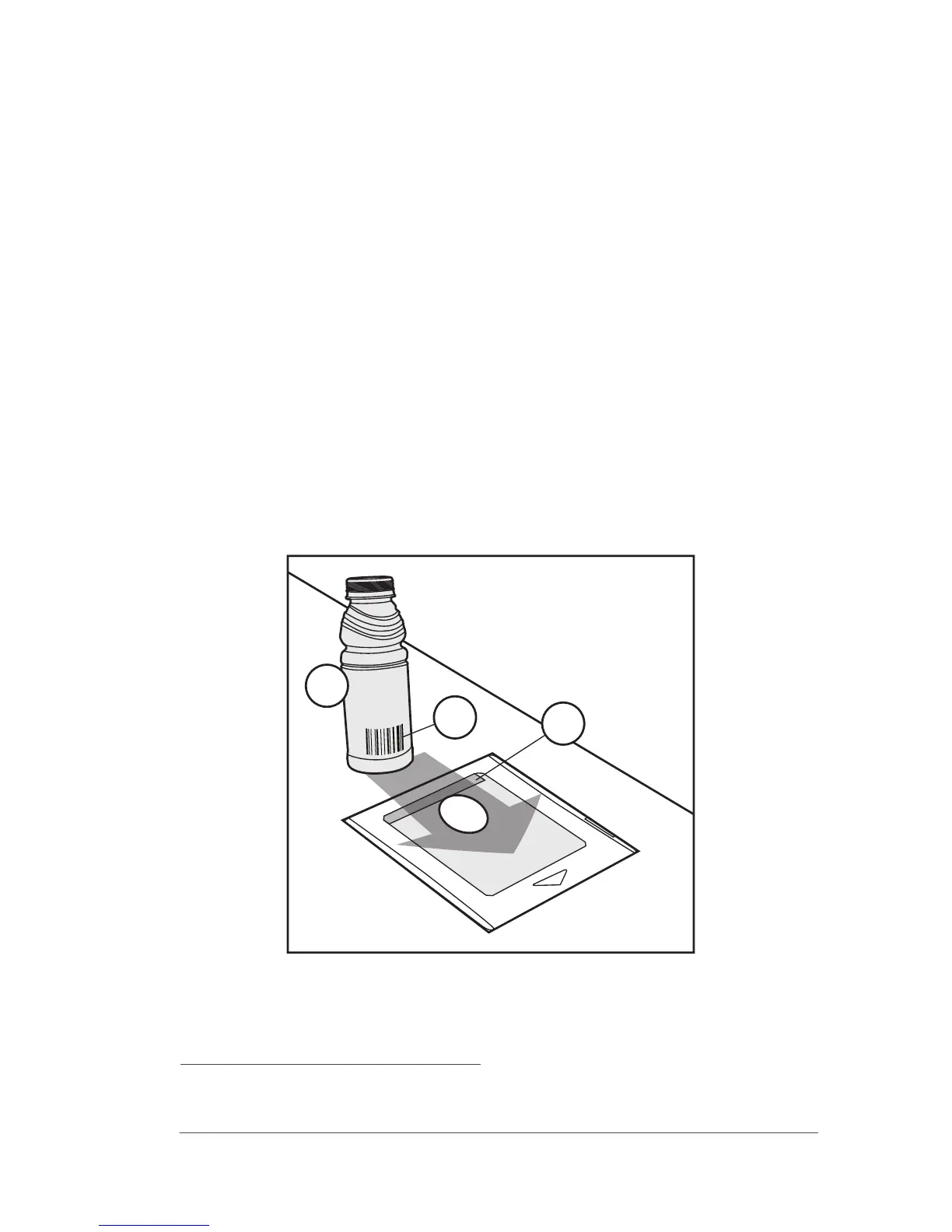

Figure 3. Scanning Items
1. Power Off the Terminal (POT) units do not require a power supply.
1. Product 2. Bar Code
3. LED Indicator 4. Slide or push items in the direction of the arrow
2
3
4
1

Datalogic Magellan 3300HSi Specifications

General

Scanner type	1D
Decoding standards	GS1, MicroPDF417, PDF417
Optical sensor resolution	1280 pixels
Light levels (direct sunlight)	0 - 86100 lx
Dimensions (WxDxH)	152 x 87 x 152 mm
Power consumption (active)	9.9 W
Standard interfaces	USB, RS-232
Input voltage	90 - 264 V
Power requirements	47 - 63 Hz
Power consumption (standby)	2 W
Certification	RoHS, EN 60825-1, IEC 60825, IEC 60825-1
Product color	Stainless steel
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	790 g
