Datalogic Magellan 83 Technical Guide

2-14 Magellan
®
8300/8400

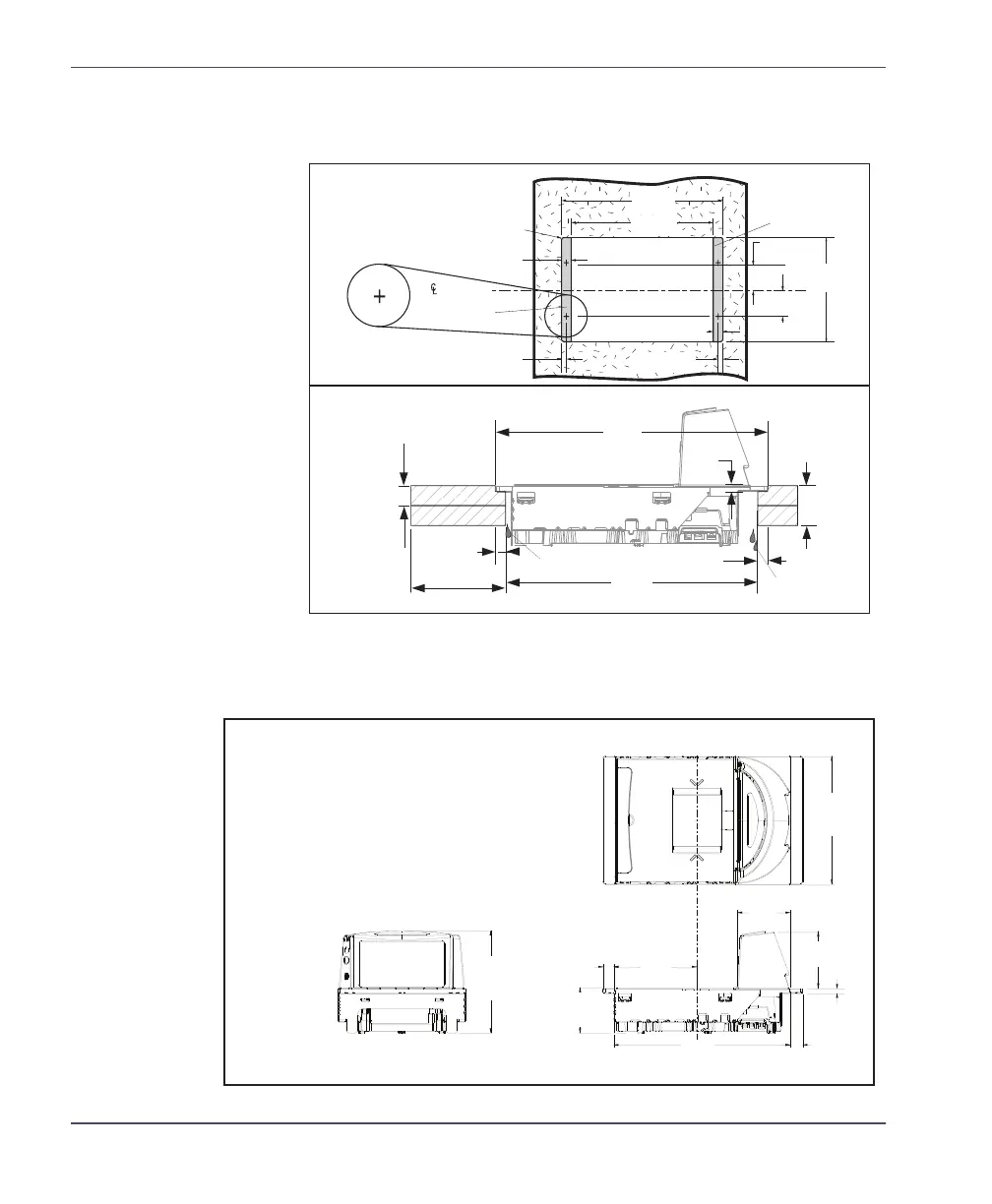

Figure 2-10. Medium Flanged Models 8302/8304/8402/8404
Cutout Dimensions
Figure 2-11. Medium Flanged Models 8302/8304/8402/8404
Scanner Reference Dimensions
Models 8302/8304/8402/8404
(Medium Flanged)
Minimum Cutout Dimensions
Models 8302/8304/8402/8404
(Medium Flanged)
Supports
18.00"
(
45.7cm)
16.625"
(
42.23cm)
0.75"
(1.9 cm)
1.5"
(3.8 cm)
0.75"
(1.9cm)
0.75"
(1.9cm)
4.0"
(10.2 cm)
0.375" (0.95cm)
Liquid
Drainage
Liquid
Drainage
18.00"
(45.7cm)
16.625"
(42.23cm)
Max. Radius = 0.25"
(0.635cm) 4x
0.75"
(1.905cm)
Rail
Rail
(Center Line)
0.75"
(1.905cm)
0.375"
(0.952cm)
0.375"
(0.952cm)
If leveling feet are needed,
use the placement shown here,
represented with plus signs (+).
3.06"
(7.77cm)
3.06"
(7.77cm)
11.625"
(29.53cm)
Models 8302/8304/8402/8404 (Medium Flanged)
Scanner Reference Dimensions
7.5"
(1.905cm)
1.0"
(2.54cm)
4.08"
(10.36cm
± 0.15cm)
15.71"
(39.9cm ± 0.15cm)
1.125"
(2.86cm)
0.375"
(0.95cm)
4.59"
(11.7cm)
11.5"
(29.21cm
± 0.1cm)
5.19"
(13.2cm)
9.27"
(23.6cm
± 0.2cm)
