Set-Up & Installation
Technical Guide 2-27
Installation
1. Make sure that all cables are firmly attached (except that the AC/
DC power supply should not be connected to the AC outlet yet).
Reference Figure 2-21.
2. Remove the platter to gain access to the interior lift handle. Grasp
the platter in the positions shown in Figure 2-22 and gently lift it
from the scanner. If the top edge of the platter is blocked, you may
find it easier to grasp the platter vertical bezel as shown in Figure 2-
22b.

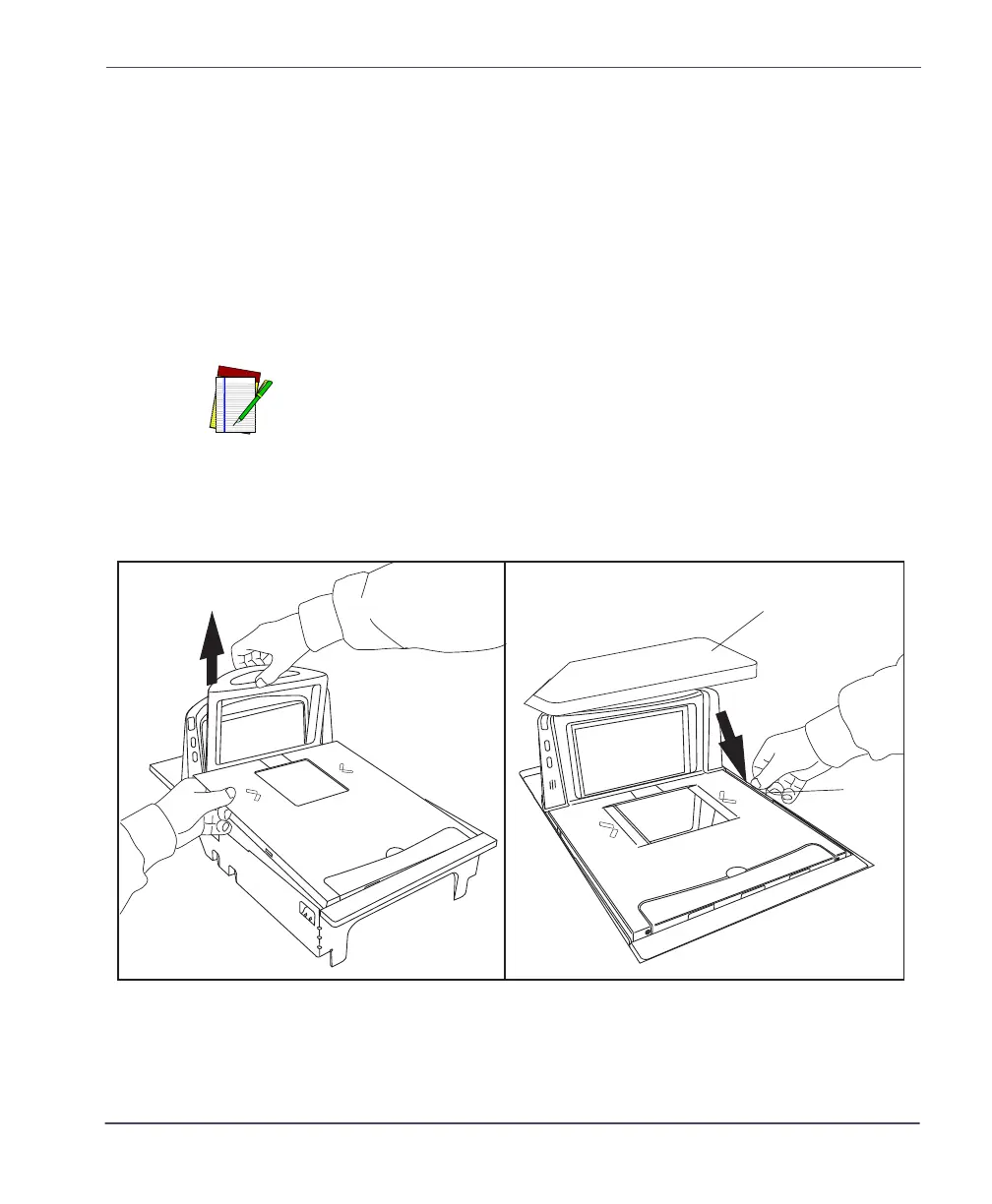

Figure 2-22. Removing the Platter
NOTE
Figure 2-22 illustrates an L-shaped weigh platter, which features a vertical
bezel. Your platter may not contain a vertical bezel.
ab
Coin
(Obstruction)
To Next Page
