2-20 Magellan
®
8300/8400

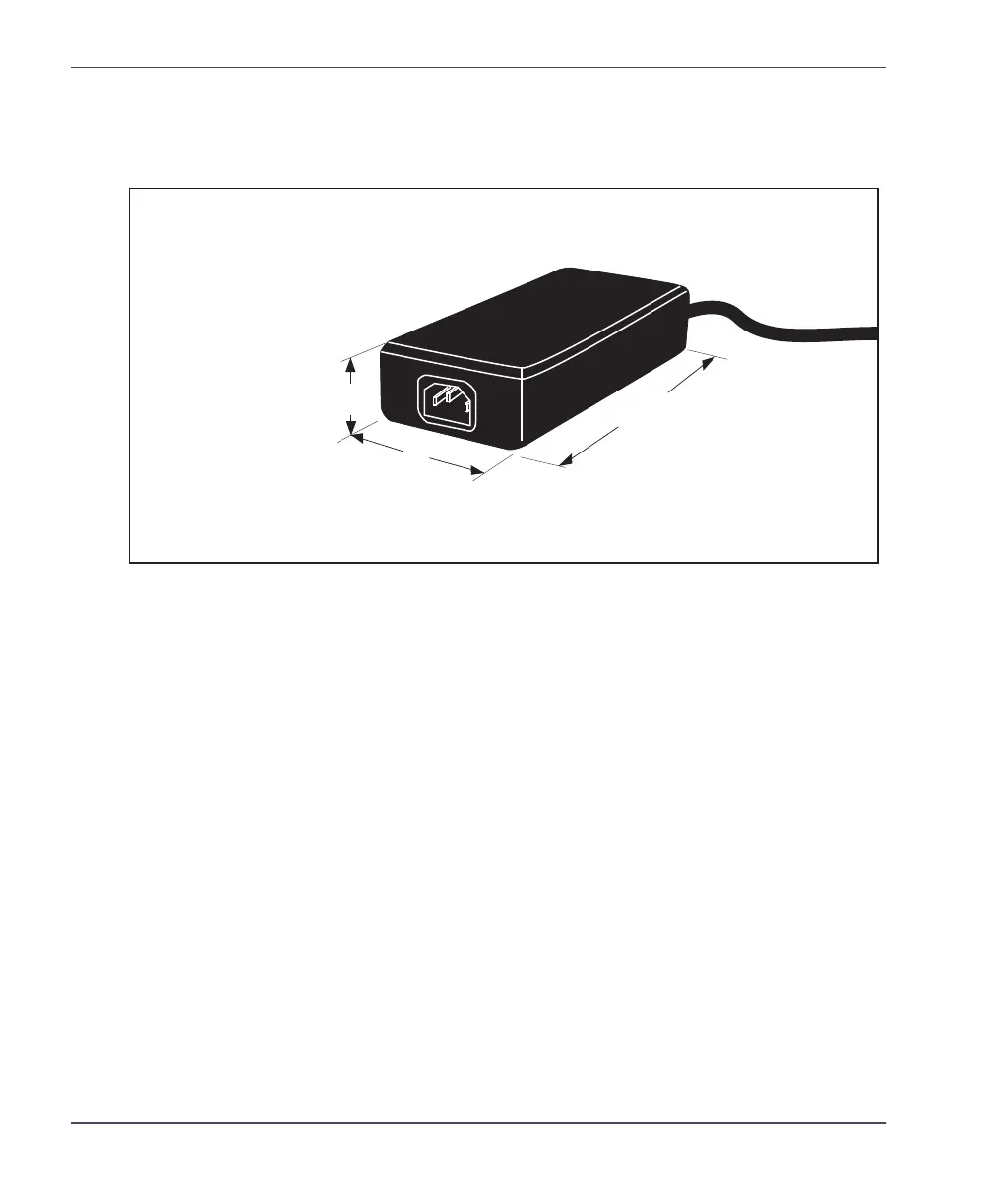

Figure 2-16 provides physical dimensions for the AC/DC Adapter (part
number 8-0582).
Figure 2-16. Physical Measurements: AC/DC Adapter
Remote Scale Display Placement/Installation
The modular Remote Display is designed so that single display heads can
be stacked to form a dual display as shown in Figure 2-17a in order to
address the specific viewing needs of both the customer and the cashier.
Factors to consider when installing this device are:
• Lighting Considerations
• Viewing Angle
• Remote Display Cabling
Lighting Considerations
The display(s) will be easily readable unless placed in direct sunlight or
other very strong light sources. Light interference will not be a factor in
most installations. For best viewing, the display head(s) can each be
rotated up to 180
º
around the post and/or tilted 15
º
backward or forward.
3.35"
(8.5 cm)
1.97"
(5 cm)
1.23"
(3.1 cm)
