Datalogic Magellan 83 Technical Guide

2-16 Magellan
®
8300/8400

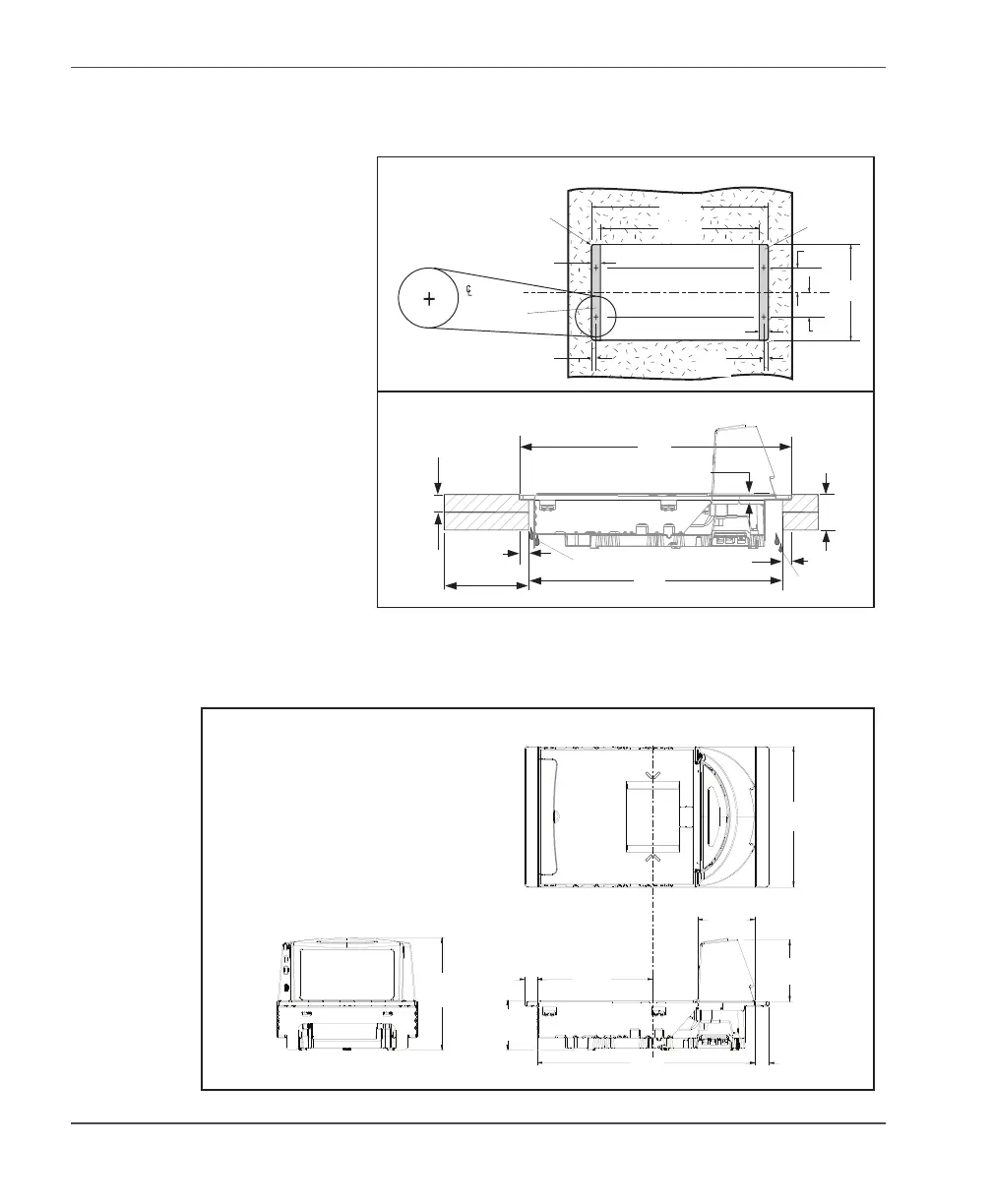

Figure 2-14. Long Flanged Models 8303/8305/8403/8405
Cutout Dimensions
Figure 2-15. Long Flanged Models 8303/8305/8403/8405
Scanner Reference Dimensions
Model 8303/8305/8403/8405 (Long Flanged)
Cutout
Model 8303/8305/8403/8405
Supports
20.00"
(50.8cm)
0.75"
(1.905cm)
18.625"
(47.308cm)
Rail
Rail
(Center Line)
11.625"
(29.53cm)
0.75"
(1.905cm)
Max. Radius = 0.25"
(0.635cm) 4x
20.00"
(50.8cm)
18.625"
(47.3cm)
0.375"
(0.952cm)
0.375"
(0.952)
If leveling feet are needed,
use the placement shown here,
represented with plus signs (+).
3.06"
(7.77cm)
3.06"
(7.77cm)
0.75"
(1.9 cm)
1.5"
(3.8 cm)
0.75"
(1.9cm)
0.75"
(1.9cm)
4.0"
(10.2 cm)
Liquid
Drainage
Liquid
Drainage
0.375" (.95cm)
Model 8303/8305/8403/8405 (Long Flanged)
Scanner Reference Dimensions
1.0"
(2.54cm)
9.5"
(24.13cm)
1.125"
(2.857cm)
11.5"
(29.21cm
± 0.1cm)
4.59"
(11.7cm)
5.19"
(13.2cm)
17.75"
(45.1cm ± 0.15cm)
4.08"
(10.36cm
± 0.15cm)
9.27"
(23.6cm
± 0.2cm)
