MATRIX 300™ QUICK GUIDE
10
STEP 5 – INSTALLING VISISET™ CONFIGURATION PROGRAM
VisiSet
™
is a Datalogic reader configuration tool providing several important advantages:
Setup Wizard for rapid configuration and new users;
Defined configuration directly stored in the reader;
Communication protocol independent from the physical interface allowing the reader to be considered as a remote object to be
configured and monitored.
To install VisiSet™, turn on the PC that will be used for the configuration, running Windows 98, 2000/NT, XP, Vista, 7 or 8; then insert the
VisiSet™ Mini-DVD, wait for the DVD to autorun and follow the installation procedure.
This configuration procedure assumes a laptop computer, running VisiSet™, is connected to the reader's auxiliary port. The reader can also
be connected to VisiSet™ through the on-board Ethernet by following the procedure in the Reference Manual.
After installing and running the VisiSet™ software program the
following window appears:
Set the communication parameters from the "Options" menu. Then select
"Connect", the following window appears:

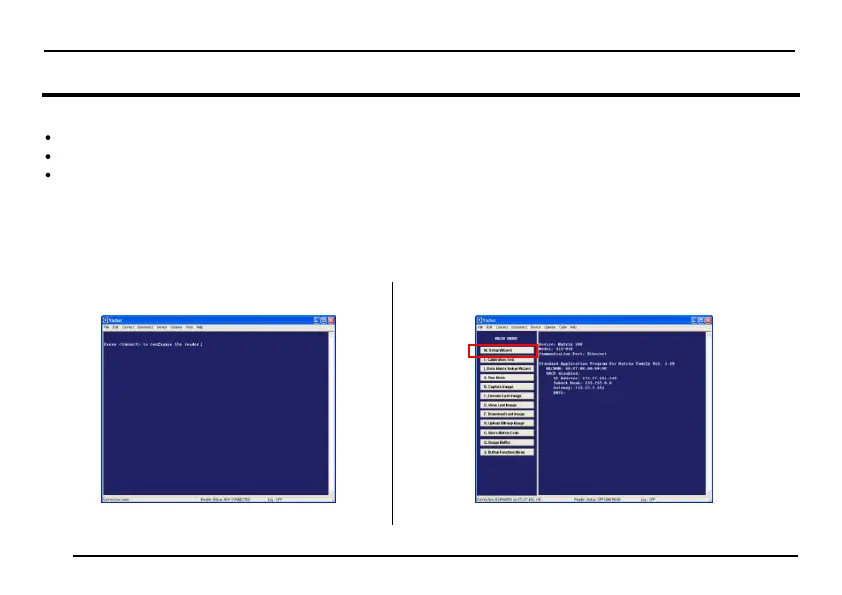

Figure 8 - VisiSet™ Opening Window
Figure 9 - VisiSet™ Main Window After Connection
