MATRIX 300™ QUICK GUIDE
17
STEP 7 – TEST MODE
Use a code suitable to your application to test the reading performance of the system.
1. Enter the Test function by pressing and holding the X-PRESS™ push button until the Test LED is on.
2. Release the button to enter the Test function.
Once entered, the Bar Graph on the five LEDs is activated and if the reader starts reading codes the Bar-Graph shows the Good Read
Rate. In case of no read condition, only the STATUS LED is on and blinks.
The Bar Graph has the following meaning:

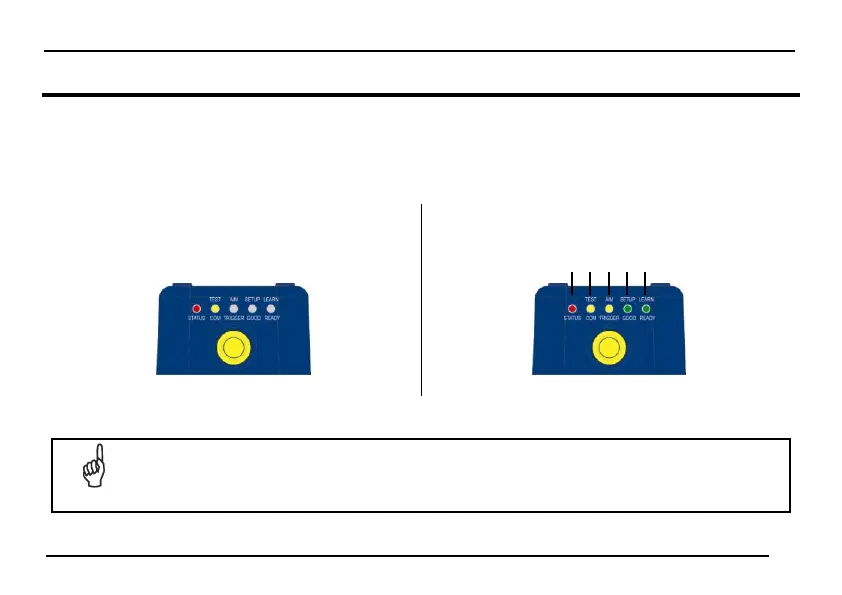

Figure 10 - X-PRESS™ Interface: Test Function
Figure 11 – Test Bar Graph
3. To exit the Test, press the X-PRESS™ push button once.
NOTE
By default, the Test exits automatically after three minutes.
≥ 20 %
≥ 40 %
≥ 60 %
≥ 75 %
≥ 95 %
