MATRIX 300™ QUICK GUIDE
5
STEP 2 – MOUNT AND POSITION THE READER
1. To mount the Matrix 300™, use the mounting bracket to obtain the most suitable position for the reader. The most common mounting
configuration is shown in the figure below.

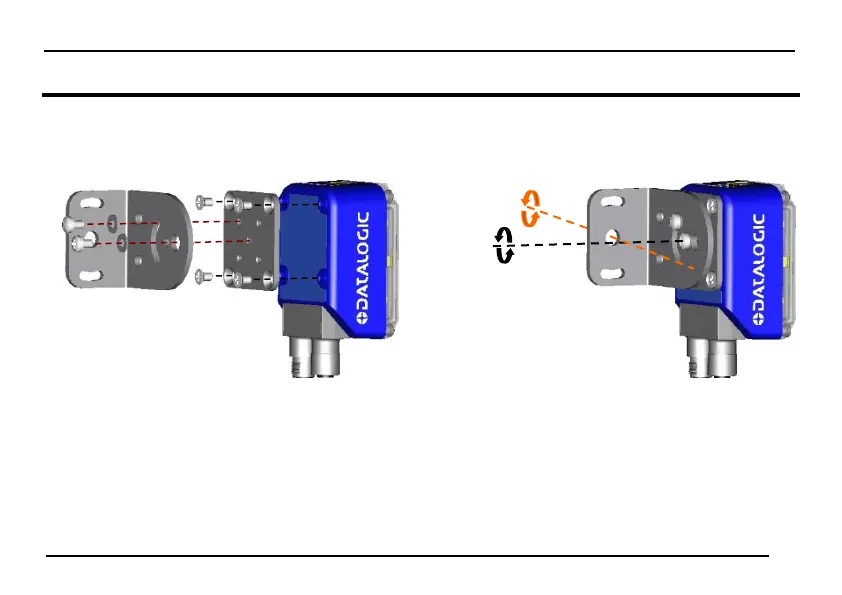

Figure 2 –Positioning with Mounting Bracket
Tilt
Pitch
