Datalogic Matrix 300 Quick Reference Guide

MATRIX 300™ QUICK GUIDE
6

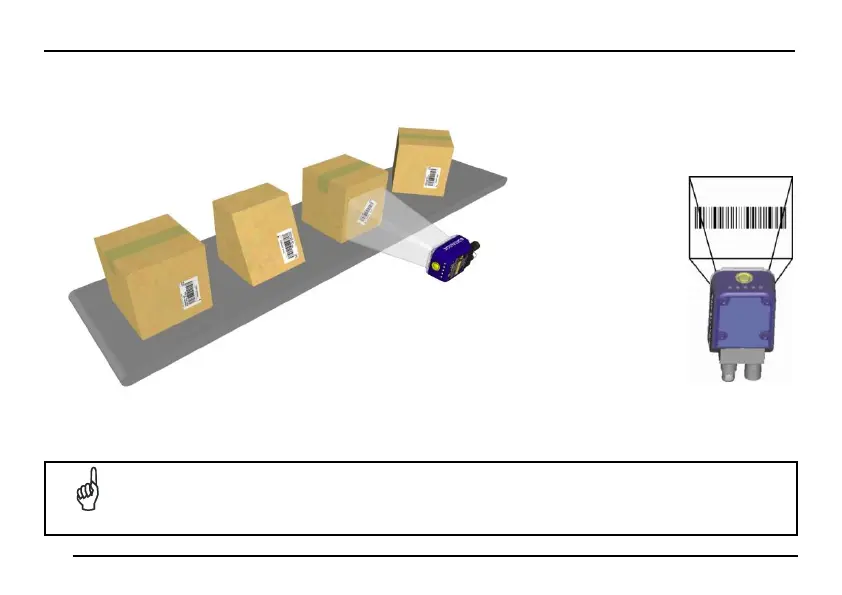

2. When mounting the Matrix 300™ take into consideration these three ideal label position angles: Pitch or Skew 10° to 20° and Tilt 0°, although
the reader can read a code at any tilt angle provided the code fits into the Field Of View (FOV).
Figure 3 – Pitch, Tilt and Skew Angles
3. Refer to the Reading Diagrams in the Appendix of this Quick Reference Guide to determine the distance your reader should be
positioned at. Further diagrams are provided in the Matrix 300™ Reference Manual.
NOTE
Rapid Configuration of the Matrix 300™ reader can be made either through the X-PRESS™ interface (steps 3-4) which
requires no PC connection, or by using the VisiSet™ Setup Wizard (steps 5-6). Select the procedure according to your
needs.
Pitch
Minimize
No Pitch, Tilt or Skew
Tilt
any angle
inside FOV
Skew
Assure at least 10°
FOV
H
FOV
V
